Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
Cooling System
Cooling System
Connector End Views

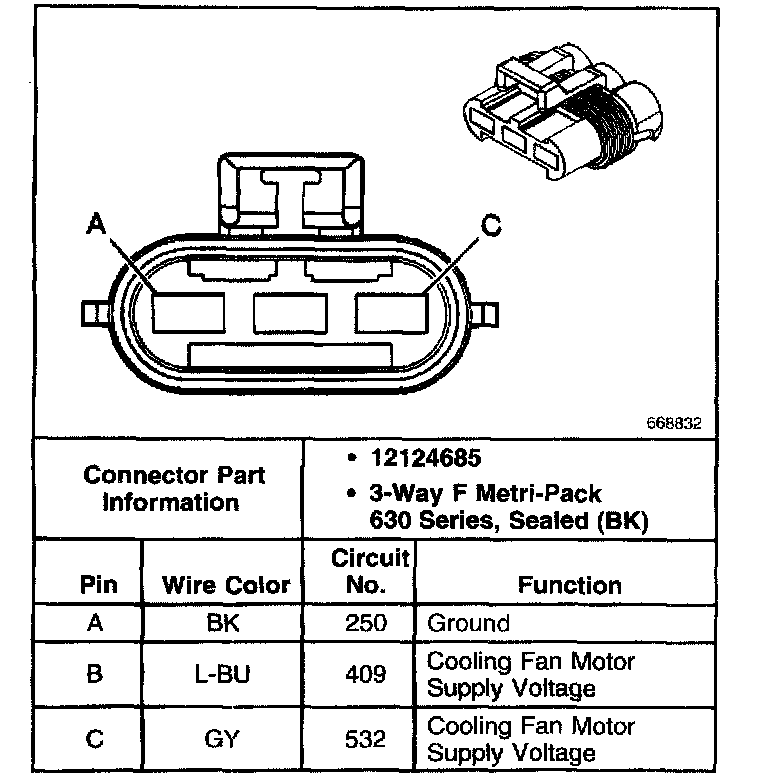

Cooling Fan

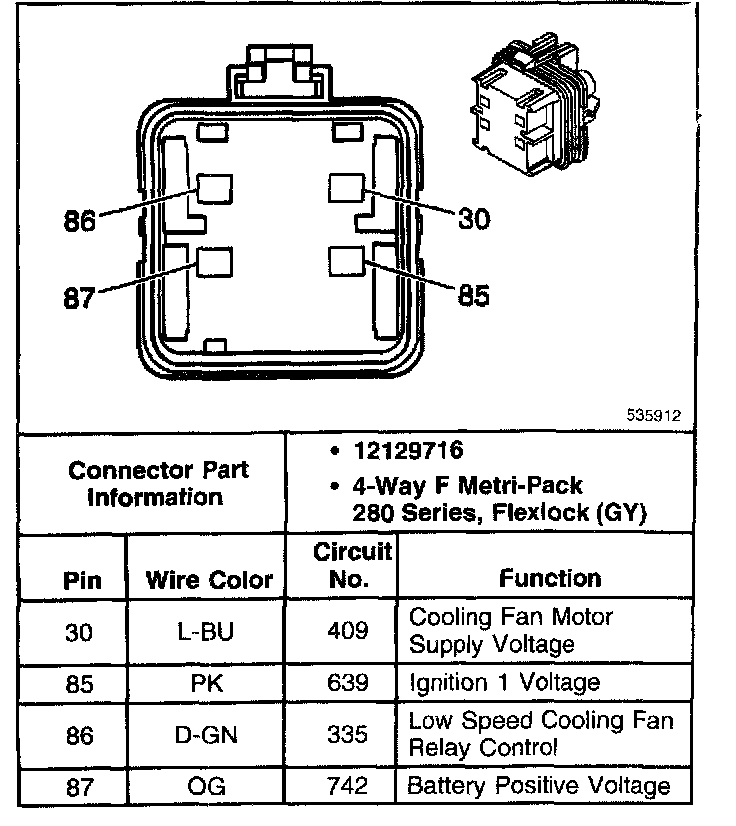

Cooling Fan 1 Relay

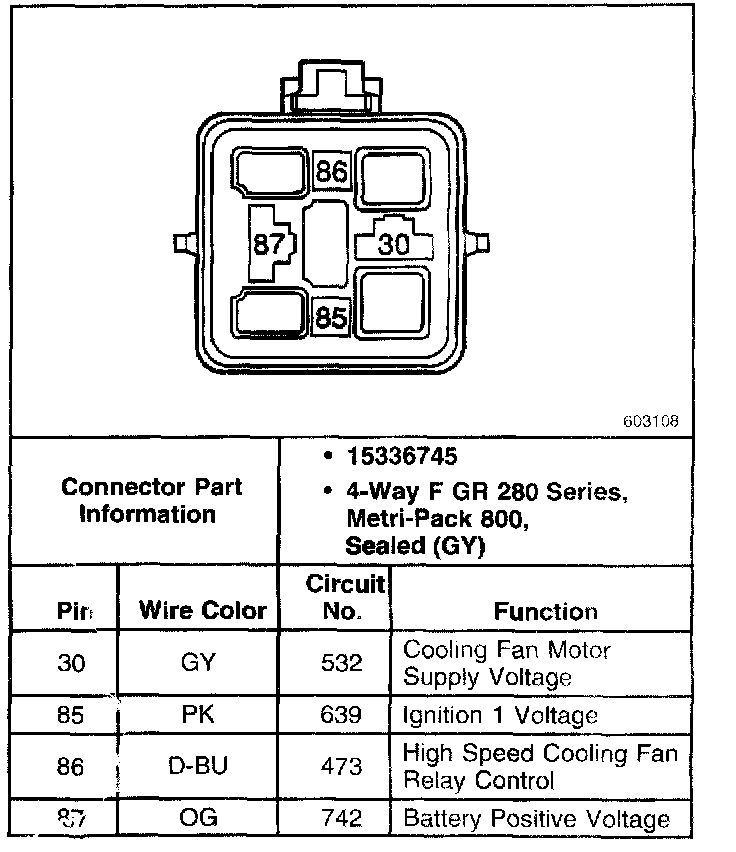

Cooling Fan 2 Relay
