Engine Block and Components

Disassembled Views

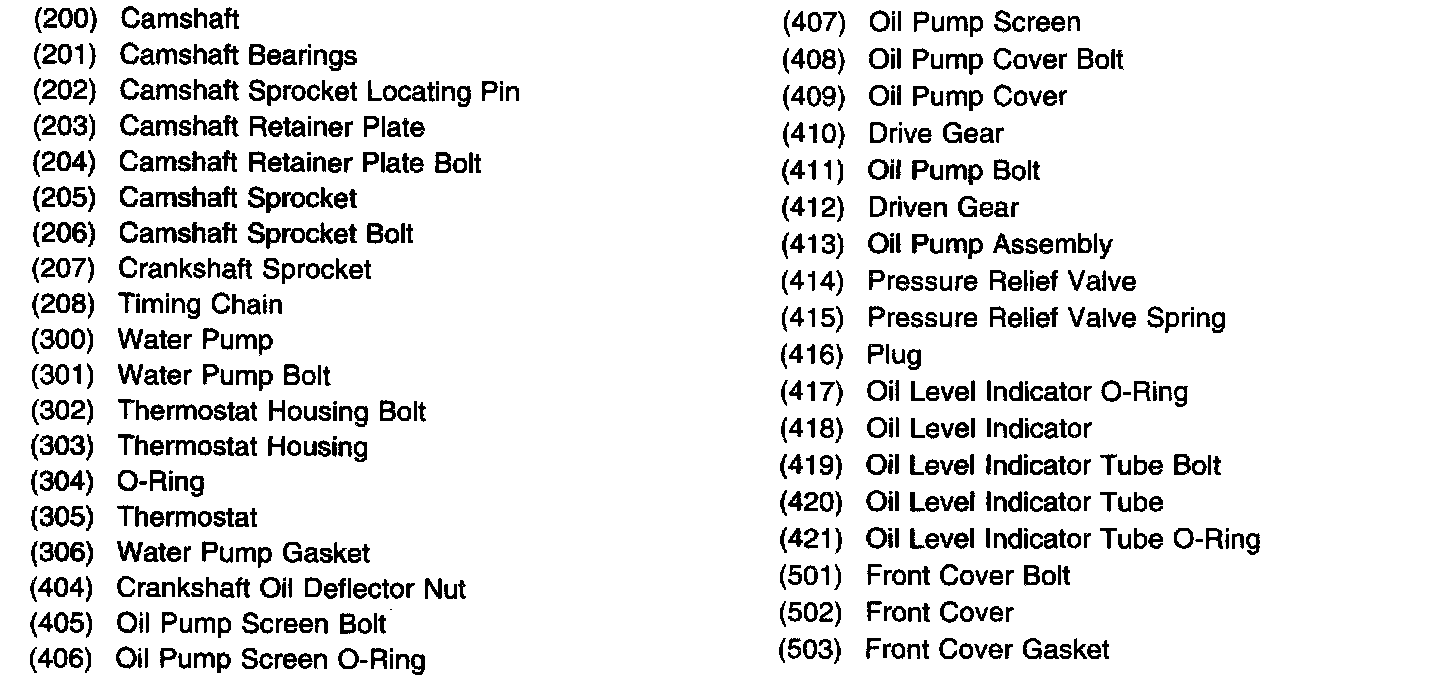

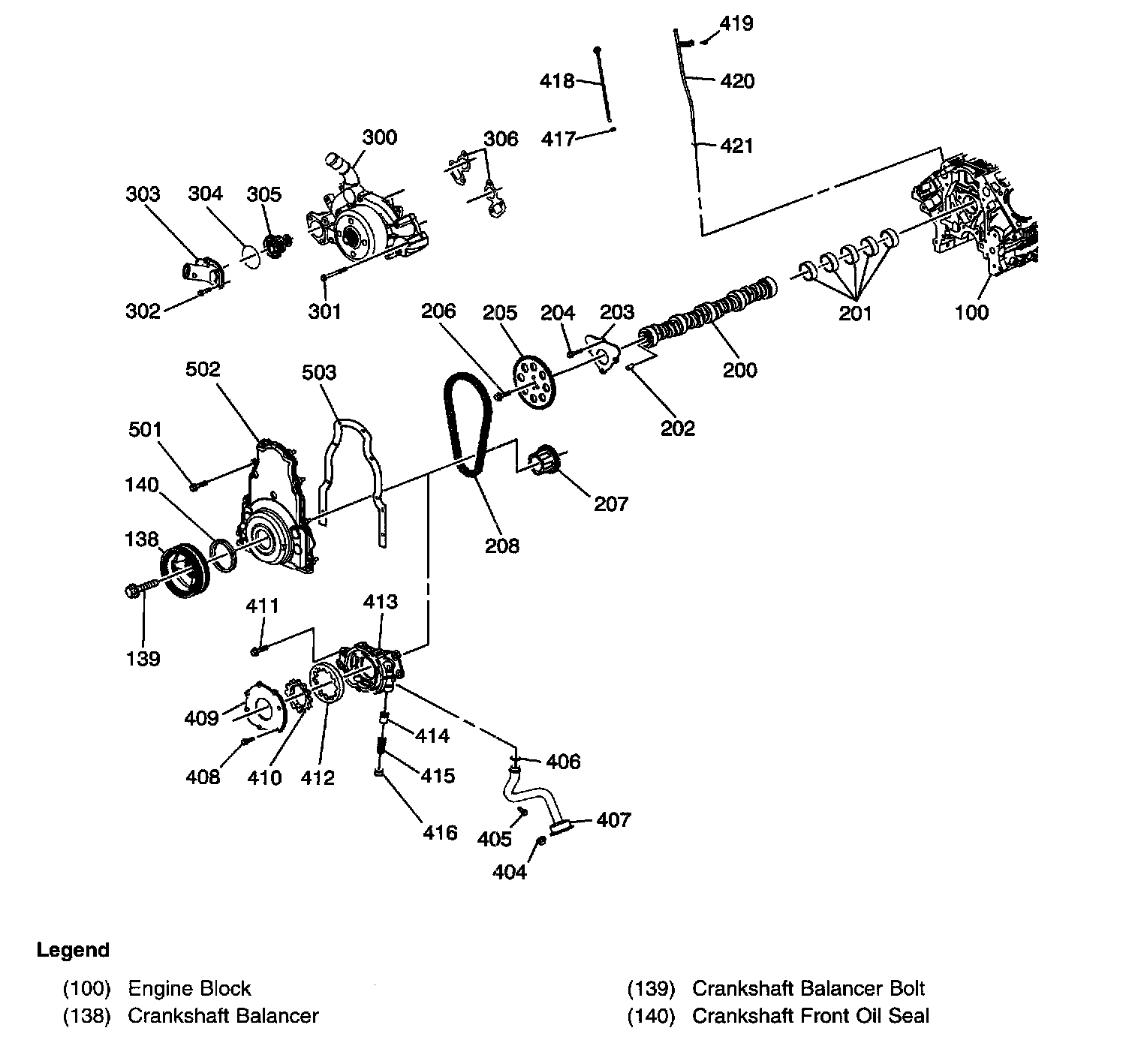

Front of Engine

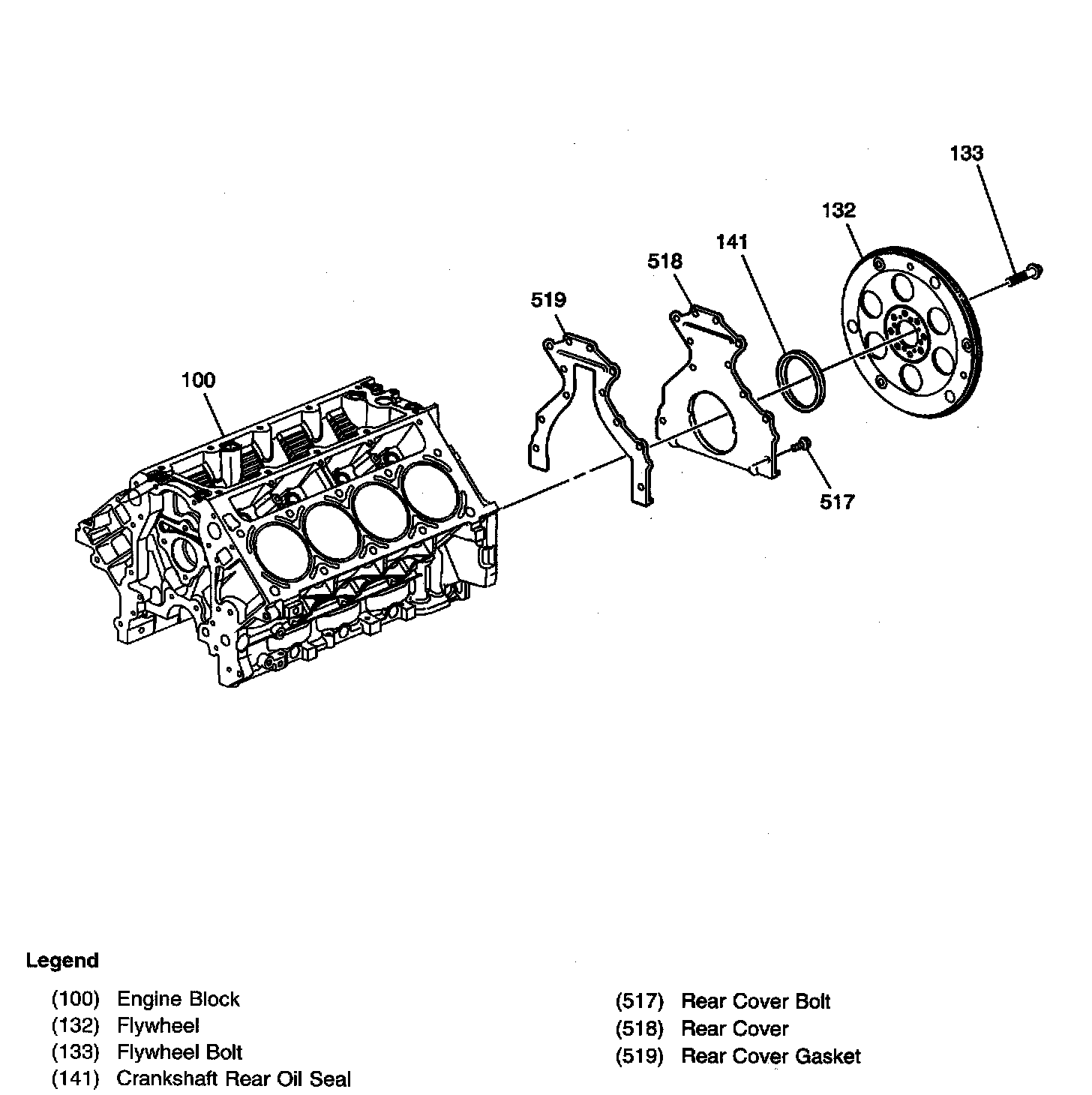

Rear of Engine

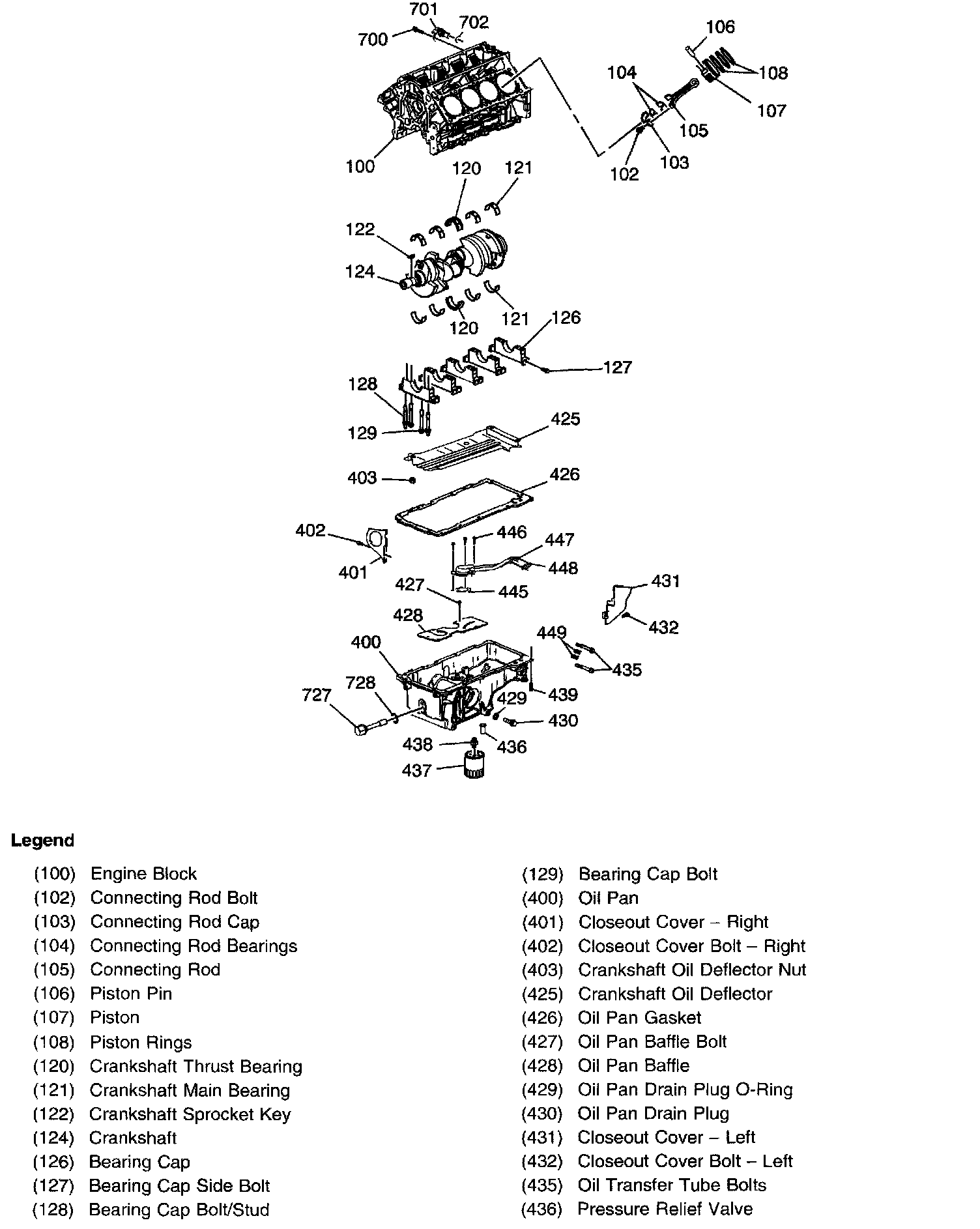

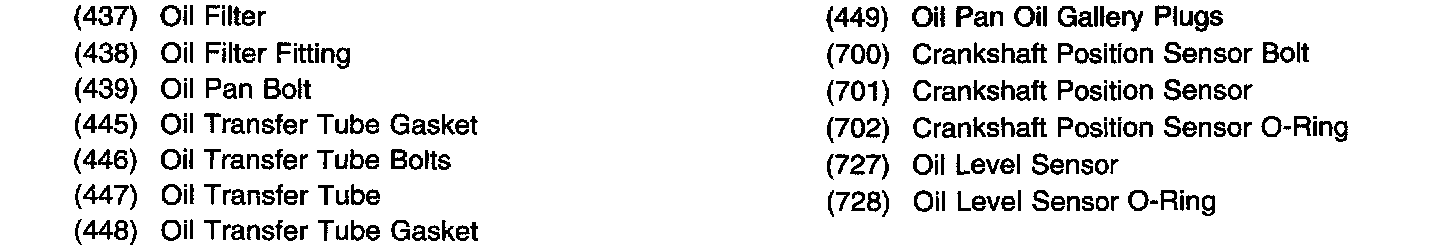

Lower Engine Assembly

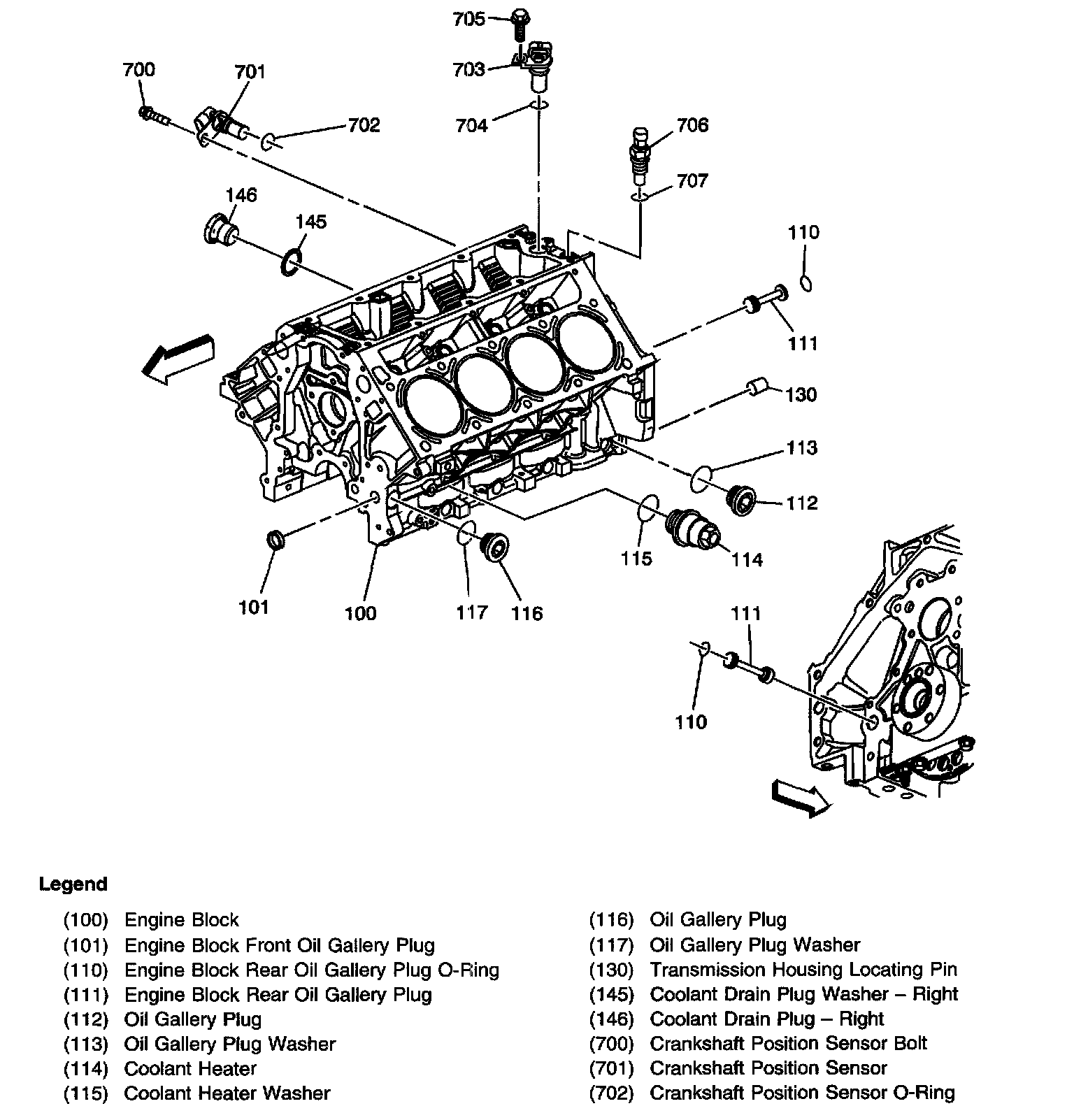

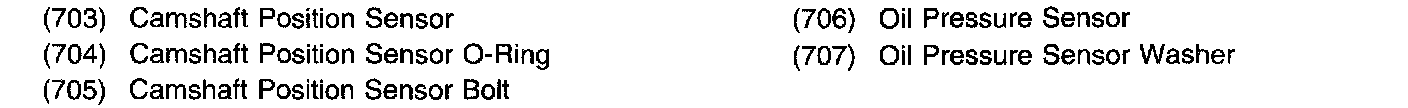

Engine Block Plugs/Sensors
