Home >> Chevy Truck >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

Engine Components:

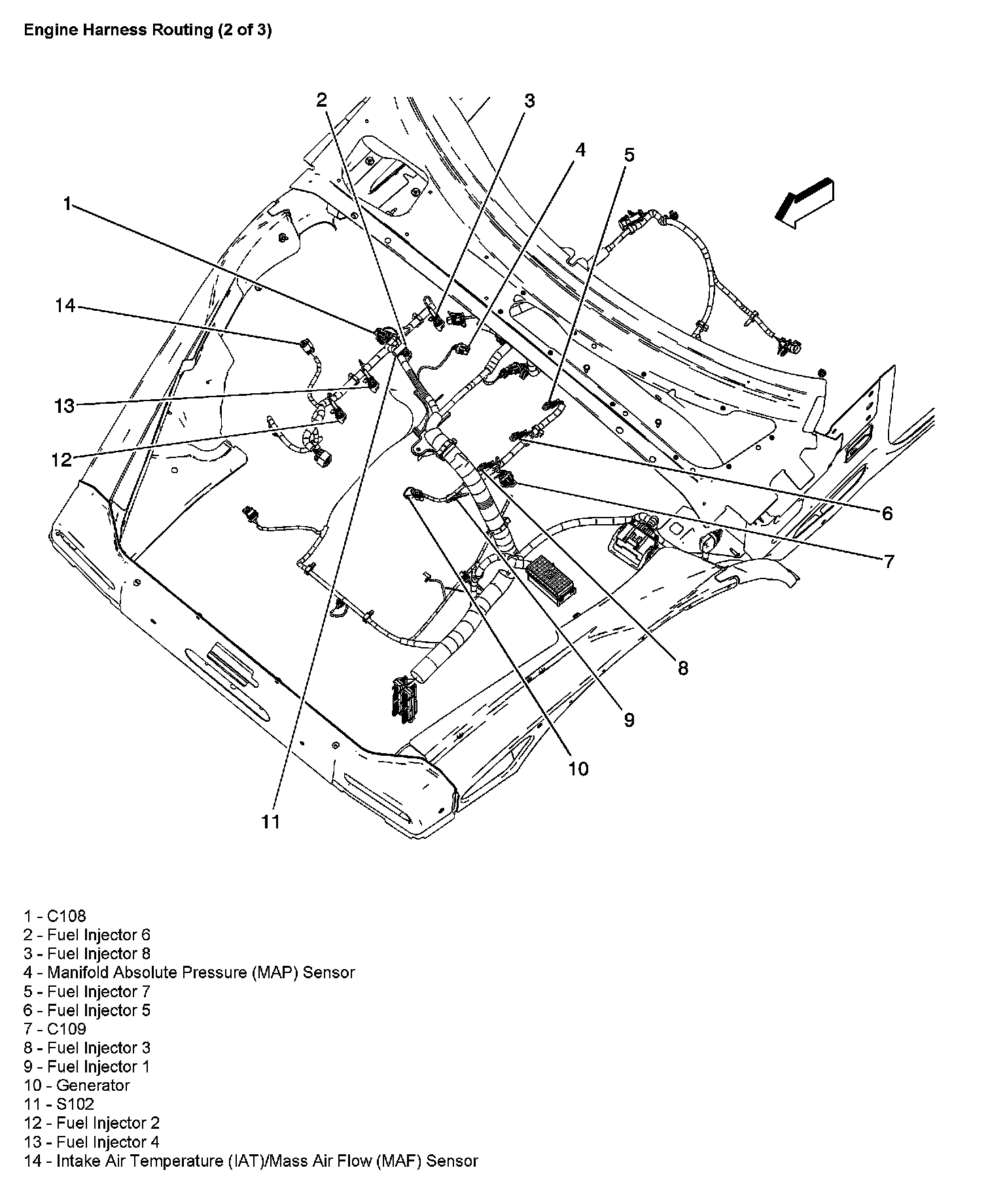

Engine Harness Routing (2 of 3):
