Positive: Service and Repair

BATTERY POSITIVE CABLE REPLACEMENT

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Disconnect the positive battery cable from the battery.




3. Remove the bolt retaining the positive battery cable to the underhood fuse block.

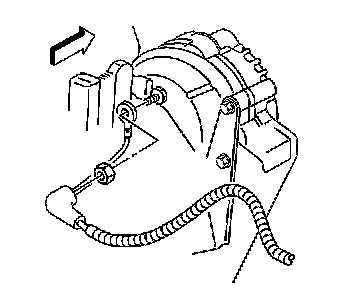

4. Remove the nut retaining the positive battery cable to the generator.
5. Raise and support the vehicle. Refer to Vehicle Lifting.

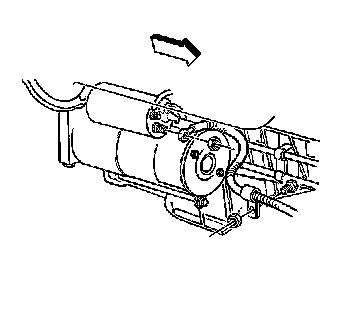

6. Remove the nut retaining the positive battery cable to the starter.
7. Remove the positive battery cable bolt from the engine.
8. Remove the battery positive cable.

INSTALLATION PROCEDURE




1. Install the positive battery cable to the vehicle.
2. Install the positive battery cable nut to the engine.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the positive battery cable nut to 6 N.m (80 lb in).

3. Install the nut retaining the positive battery cable to the starter.

Tighten the positive battery cable nut to 9 N.m (80 lb in).

4. Lower the vehicle.




5. Install the nut retaining the positive battery cable to the generator.

Tighten the positive battery cable nut to 17 N.m (13 lb ft).




6. Install the nut retaining the positive battery cable to the underhood fuse block.

Tighten the positive battery cable nut to 10 N.m (89 lb in).

7. Connect the positive battery cable to the battery.

Tighten the positive terminal bolt to 14 N.m (11 lb ft).

8. Connect the negative battery cable to the battery.
