Steering Wheel

Steering Wheel Replacement

^ Tools Required
- J 1859-A Steering Wheel Puller

Removal Procedure

1. Caution: Refer to SIR Caution in Service Precautions.

Disable the Restraints system.
2. Remove the inflator module.





3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating the horn plunger 90 degrees.

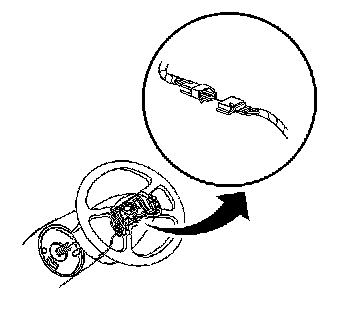

4. On vehicles with redundant steering wheel controls, disconnect the steering wheel electrical connector.

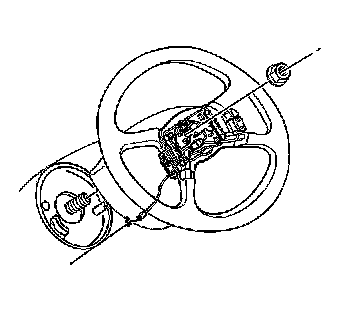

5. Remove the nut that retains the steering wheel to the steering shaft.

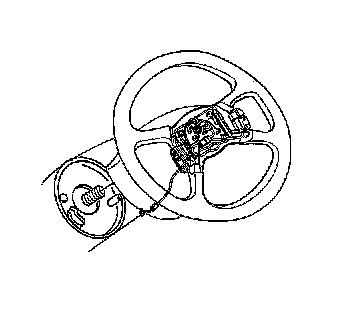

6. Mark the steering wheel to the steering shaft. This will ensure proper alignment during installation.





7. Notice: When removing the steering wheel, use only the specified steering wheel puller. Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity.

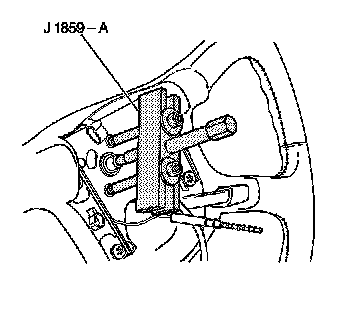

Install J 1859-A to the steering wheel.
8. Remove the steering wheel using J 1859-A.
9. Remove the J 1859-A from the steering wheel.

Installation Procedure





1. Important: Ensure that the turn signal on the multifunction switch is in the neutral position when installing the steering wheel.

Align the mark on the steering wheel and the steering shaft.
2. Install the steering wheel to the steering shaft.





3. Notice: Refer to Fastener Notice in Service Precautions.

Install the steering wheel retaining nut to the steering shaft.
^ Tighten the nut to 41 Nm (30 ft. lbs.).





4. On vehicles with redundant steering wheel controls, connect the steering wheel electrical connector.





5. Install the horn plunger to the steering column.
6. Install the inflator module.
7. Enable the Restraints system.
