Camshaft Position Sensor

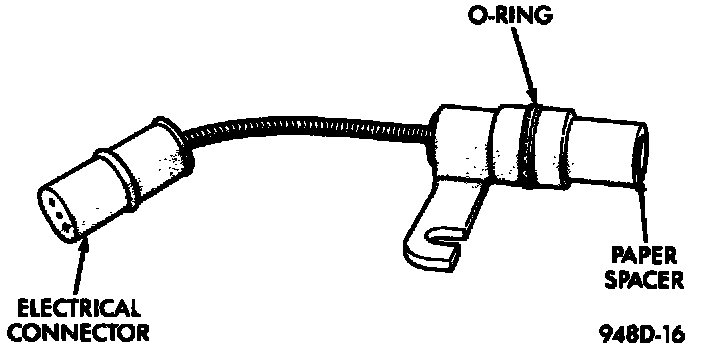

Fig 2 Camshaft Position Sensor:

Fig 3 Camshaft Sprocket:

Fig 4 Camshaft Position Sensor:

The PCM determines fuel injection synchronization and cylinder identification from inputs provided by the camshaft position sensor and crankshaft position sensor. From the two inputs, the PCM determines crankshaft position.


The sensor generates pulses as groups of notches on the camshaft sprocket pass underneath it (Fig. 2). The PCM keeps track of crankshaft rotation and identifies each cylinder by the pulses generated by the notches on the camshaft sprocket. Four crankshaft pulses follow each group of camshaft pulses.

When the PCM receives two camshaft pulses followed by the long flat spot on the camshaft sprocket, it knows that the crankshaft timing marks for cylinder one are next (on driveplate). When the PCM receives one camshaft pulse after the long flat spot on the sprocket, cylinder number two crankshaft timing marks are next. After 3 camshaft pulses, the PCM knows cylinder four crankshaft timing marks follow. One camshaft pulse after the three pulses indicates cylinder five. The two camshaft pulses after cylinder 5 signals cylinder six (Fig. 3). The PCM can synchronize on cylinders 1 or 4.

When metal aligns with the sensor, voltage goes low (less than 0.5 volts). When a notch aligns with the sensor, voltage spikes high (5.0 volts). As a group of notches pass under the sensor, the voltage switches from low (metal) to high (notch) then back to low. The number of notches determine the amount of pulses. If available, an oscilloscope can display the square wave patterns of each timing events.

Top dead center (TDC) does not occur when notches on the camshaft sprocket pass below the cylinder. TDC occurs after the camshaft pulse (or pulses) and after the 4 crankshaft pulses associated with the particular cylinder. The arrows and cylinder call outs on Figure 4 represent which cylinder the flat spot and notches identify, they do not indicate TDC position.

The camshaft post ti on sensor is mounted to the top of the timing case cover (Fig. 4). The bottom of the sensor is positioned above the camshaft sprocket. The distance between the bottom of sensor and the camshaft sprocket is critical to the operation of the system. When servicing the camshaft position sensor, refer to the service procedures.
