Chrysler Truck
>>
2001
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

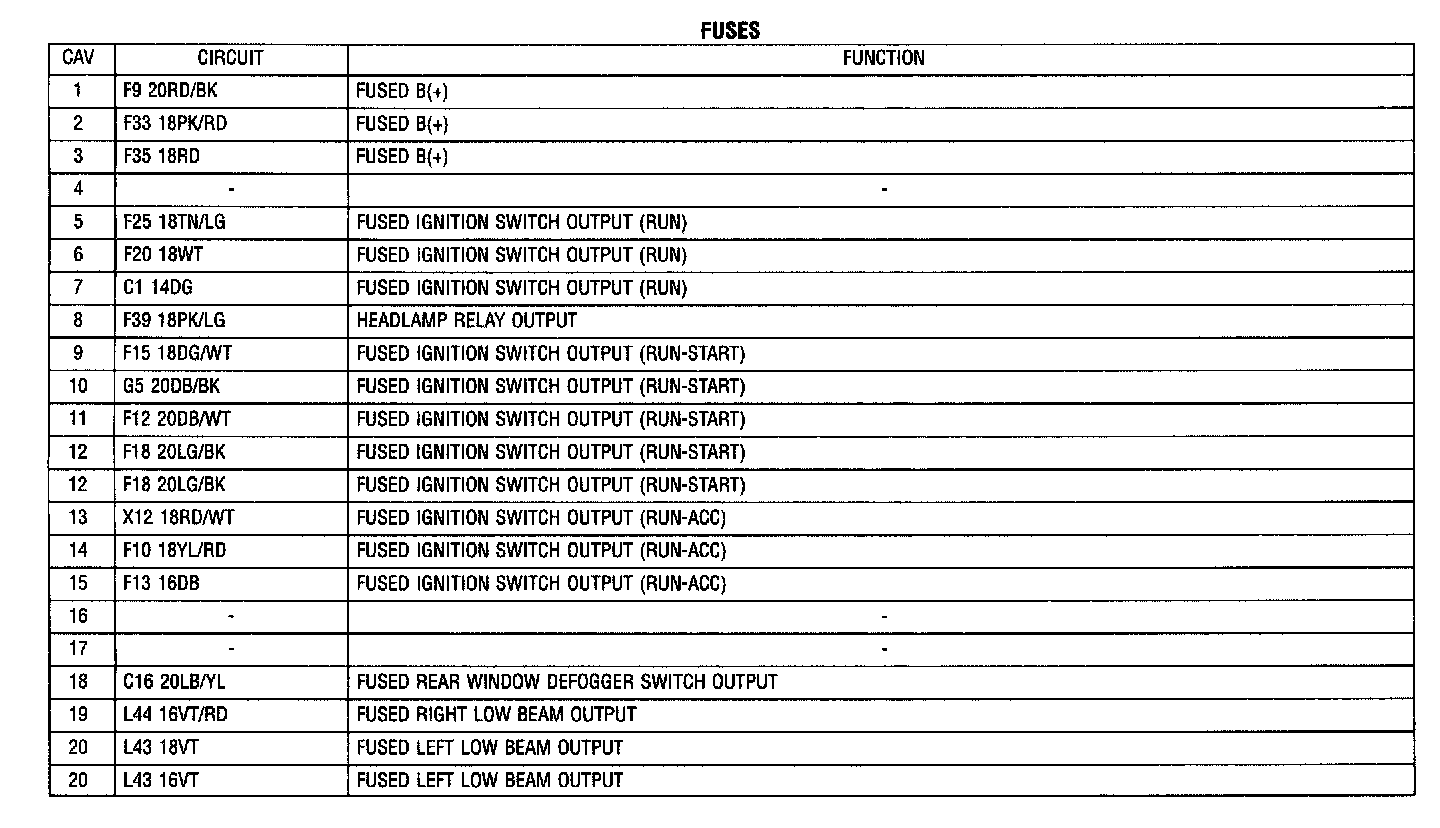

Fuses
Fuses
Top Of Fuse Block (LHD):

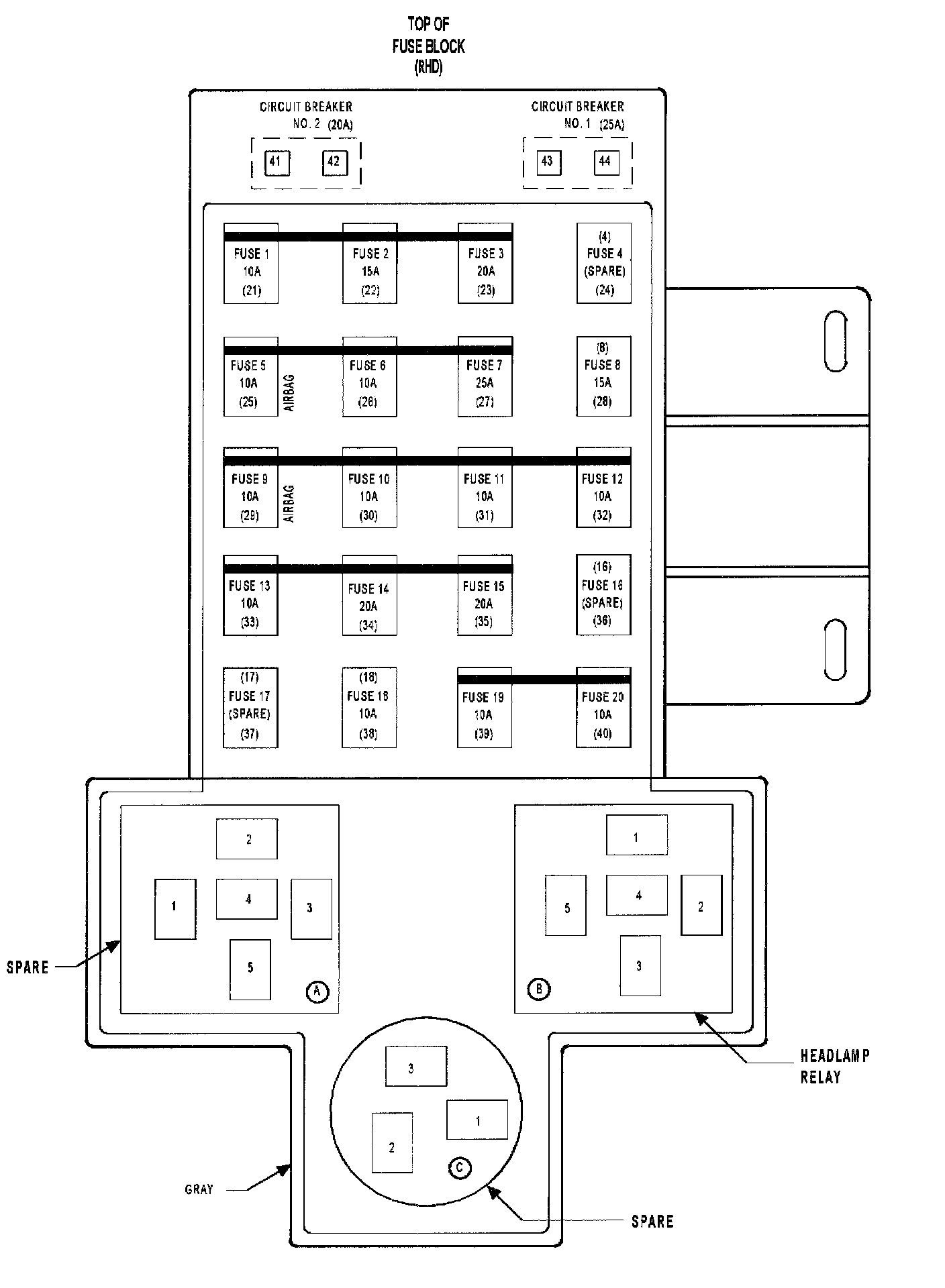

Top Of Fuse Block (RHD):
