Engine Control Module
Engine Control Module

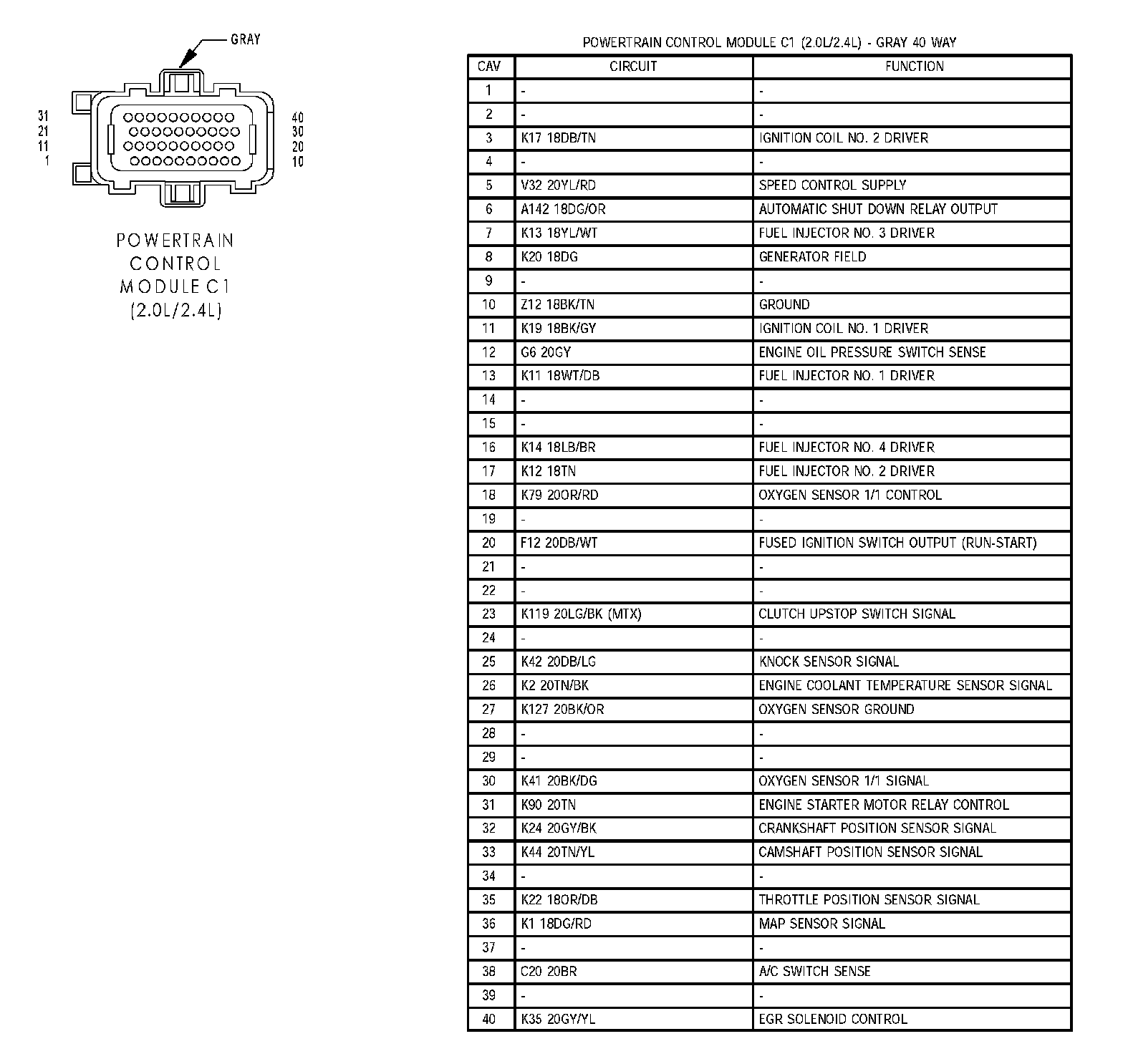

Powertrain Control Module C1 (2.0L/2.4L):

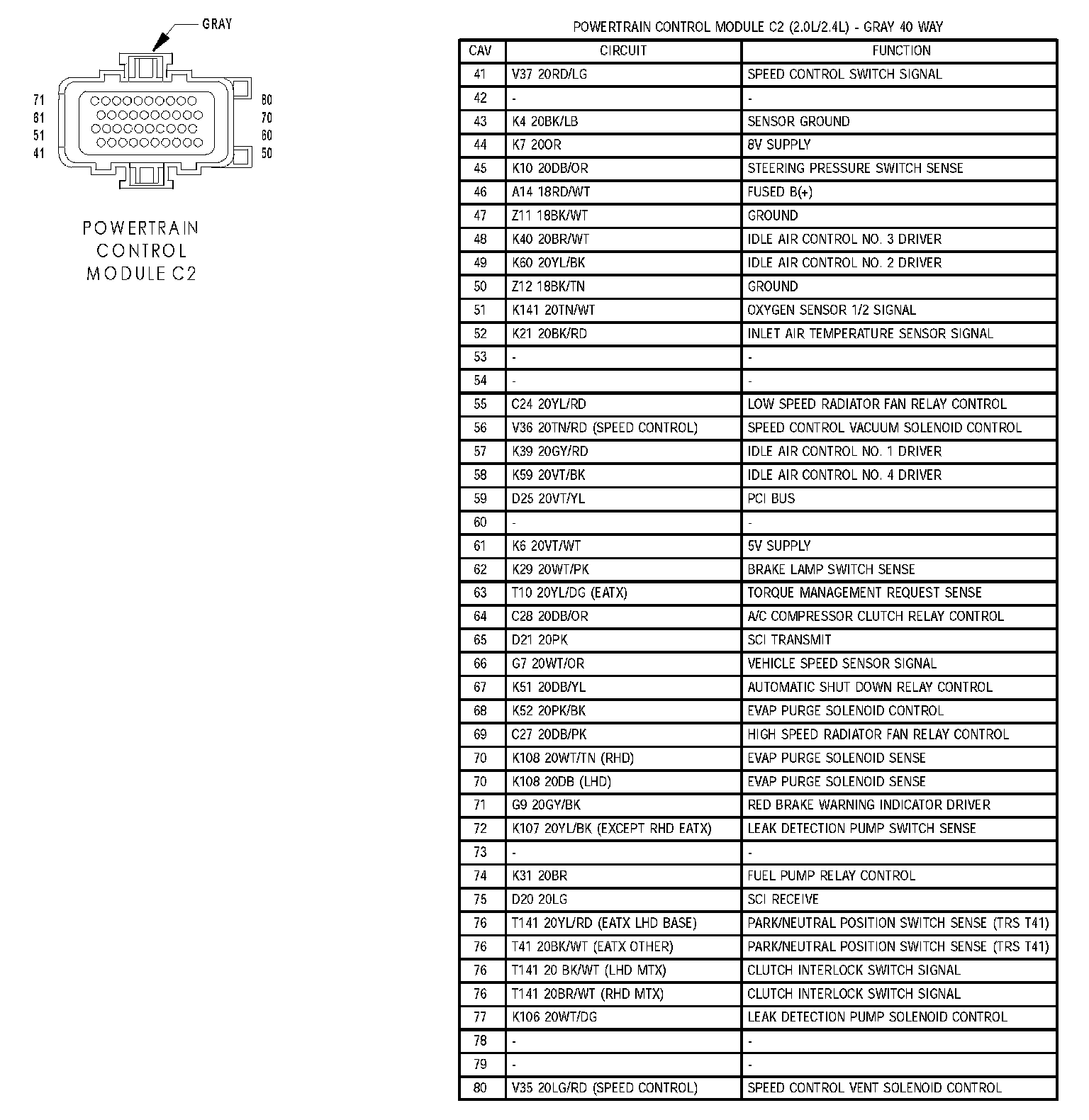

Powertrain Control Module C2 (2.0/2.4L):
