A/C Heater Control

A/C HEATER CONTROL

REMOVAL

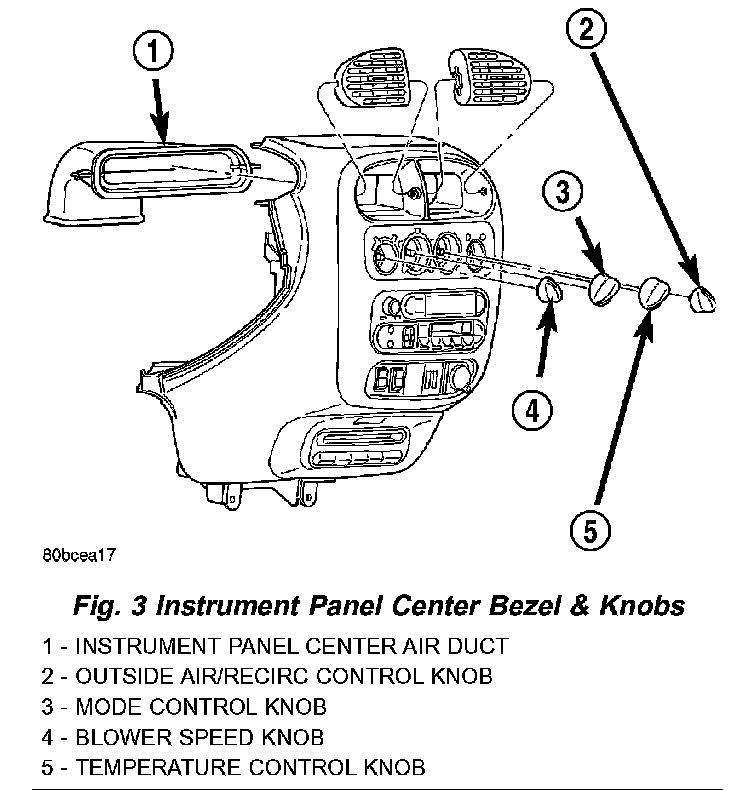

Fig. 3 Instrument Panel Center Bezel & Knobs:

1. Remove the instrument panel center stack bezel.

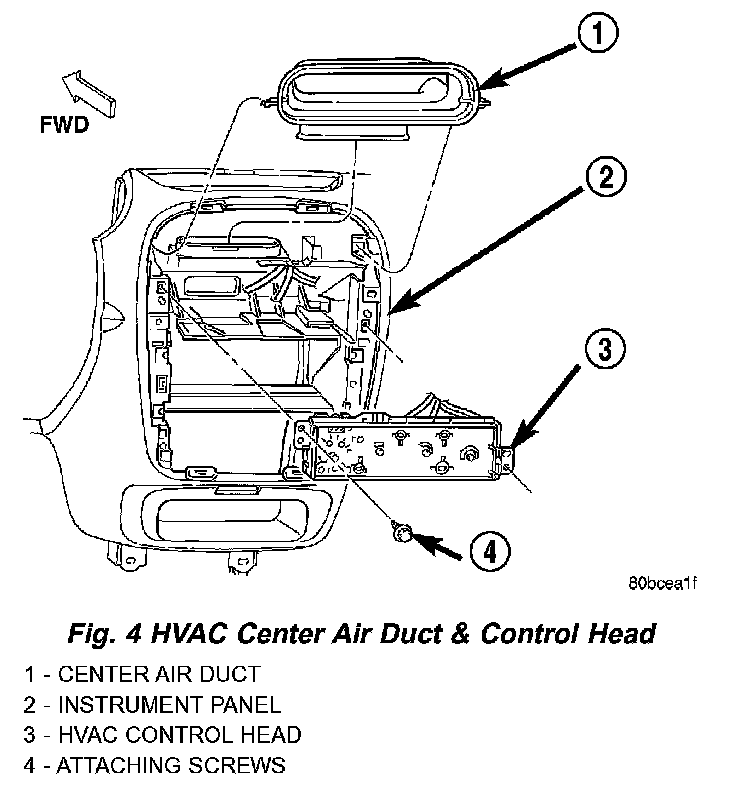

Fig. 4 HVAC Center Air Duct & Control Head:

2. Remove the center air duct.

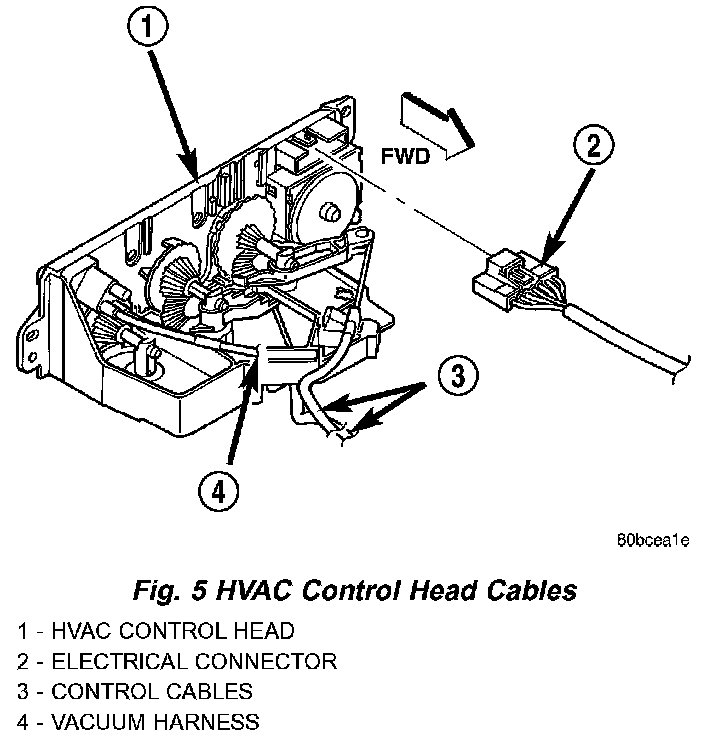

Fig. 5 HVAC Control Head Cables:

3. Remove the heater-A/C control head and disconnect the cable.

INSTALLATION
1. Connect the control head cable and install the heater-A/C control head to the dash.
2. Install the center air duct.
3. Install the instrument panel center stack bezel.
