Engine Control Module

REMOVAL
1. Disconnect negative battery cable.
2. Remove left front headlamp module.

Engine Control Module Lower Mounting Bolt:

3. Remove lower headlamp assembly mounting bolt.

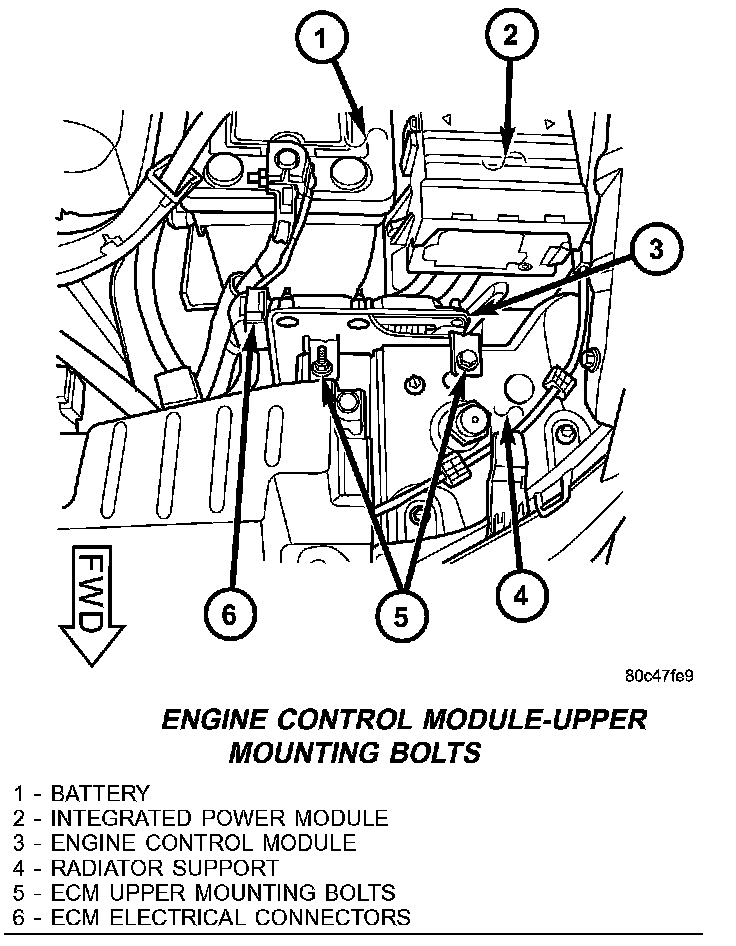

Engine Control Module Upper Mounting Bolts:

4. Remove ECM upper mounting bolts.
5. Lift ECM from radiator support.
6. Disconnect ECM electrical connectors.
7. Separate ECM from mounting bracket.

INSTALLATION
1. Install ECM on mounting bracket.
2. Connect ECM electrical connectors.
3. Place ECM and bracket assembly in position on radiator support.
4. Install upper and lower mounting bolts.
5. Install left headlamp module.
6. Connect negative battery cable.
7. Program ECM as necessary.
