Motor-Window-Left Rear

Component ID: 190
Component : MOTOR-WINDOW-LEFT REAR

Connector:
Name : MOTOR-WINDOW-LEFT REAR
Color : BLACK
# of pins : 2
Qualifier : (PT27)




Pin Description Circuit
1 LEFT REAR WINDOW DRIVER (DOWN) Q23 14OR/LB
2 LEFT REAR WINDOW DRIVER (UP) Q13 14OR/DB

Component Location - 46




Component Location - 56

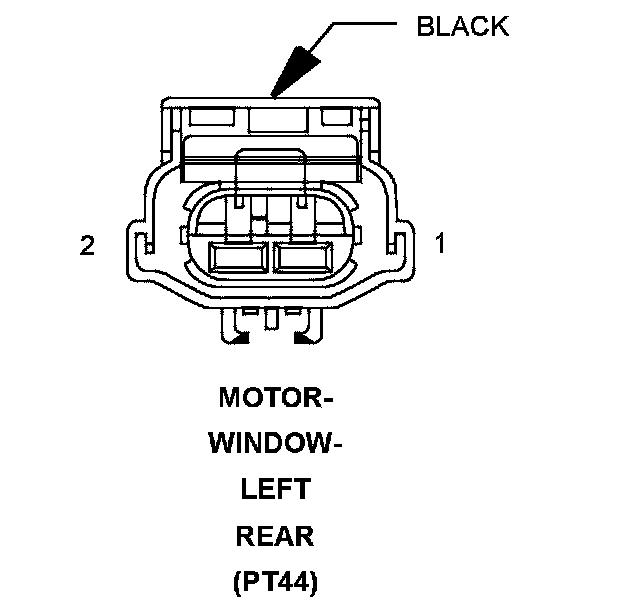

Connector:
Name : MOTOR-WINDOW-LEFT REAR
Color : BLACK
# of pins : 2
Qualifier : (PT44)




Pin Description Circuit
1 LEFT REAR WINDOW DRIVER (DOWN) Q211 14TN/LB
2 LEFT REAR WINDOW DRIVER (UP) Q111 14TN/YL

Component Location - 46




Component Location - 56
