Transmission Mode Switch, A/T

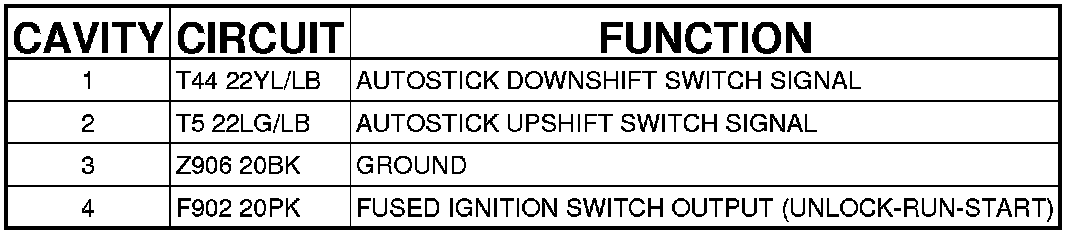

Connector - (INSTRUMENT PANEL) 4 WAY

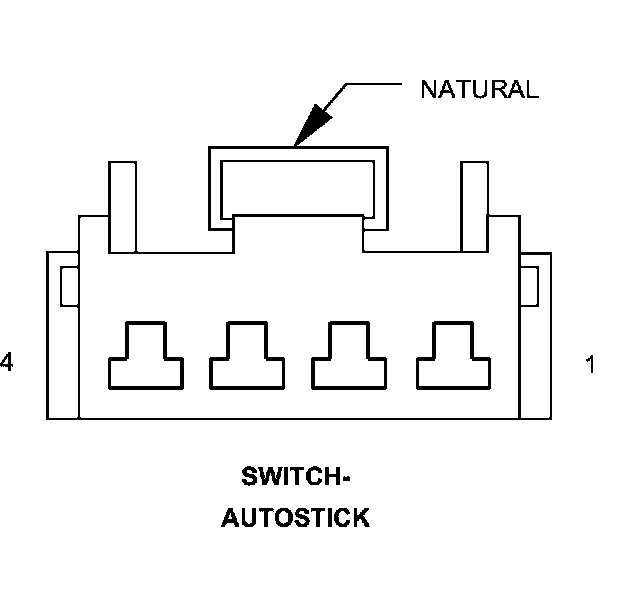

SWITCH-AUTOSTICK - (INSTRUMENT PANEL) 4 WAY
