Data Link Connector: Diagrams

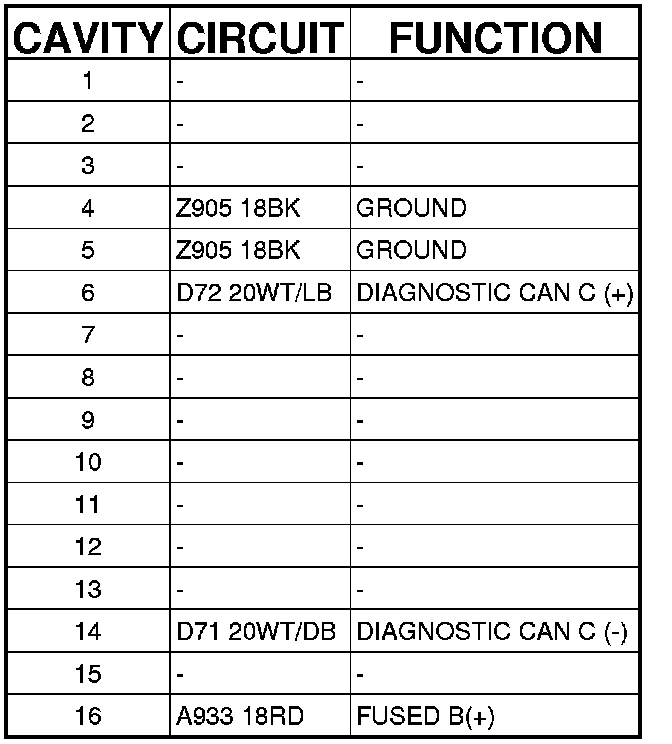

Connector - (HEADLAMP AND DASH) 16 WAY

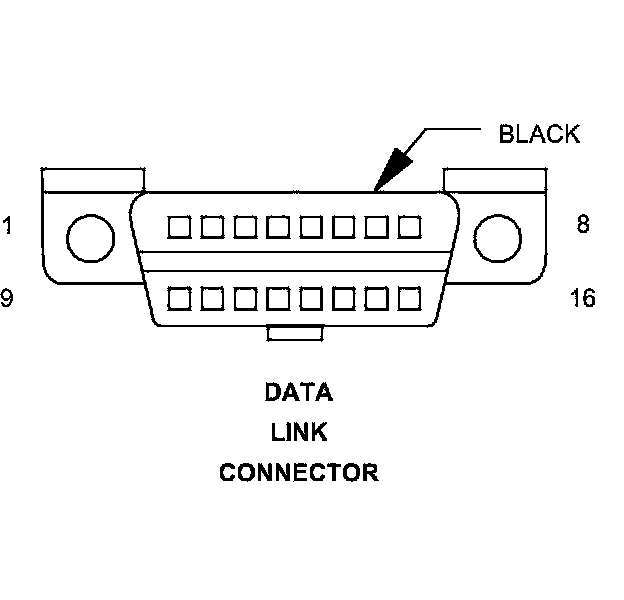

DATA LINK CONNECTOR - (HEADLAMP AND DASH) 16 WAY
