Electrical Switch Connector
Electrical Switch Connector

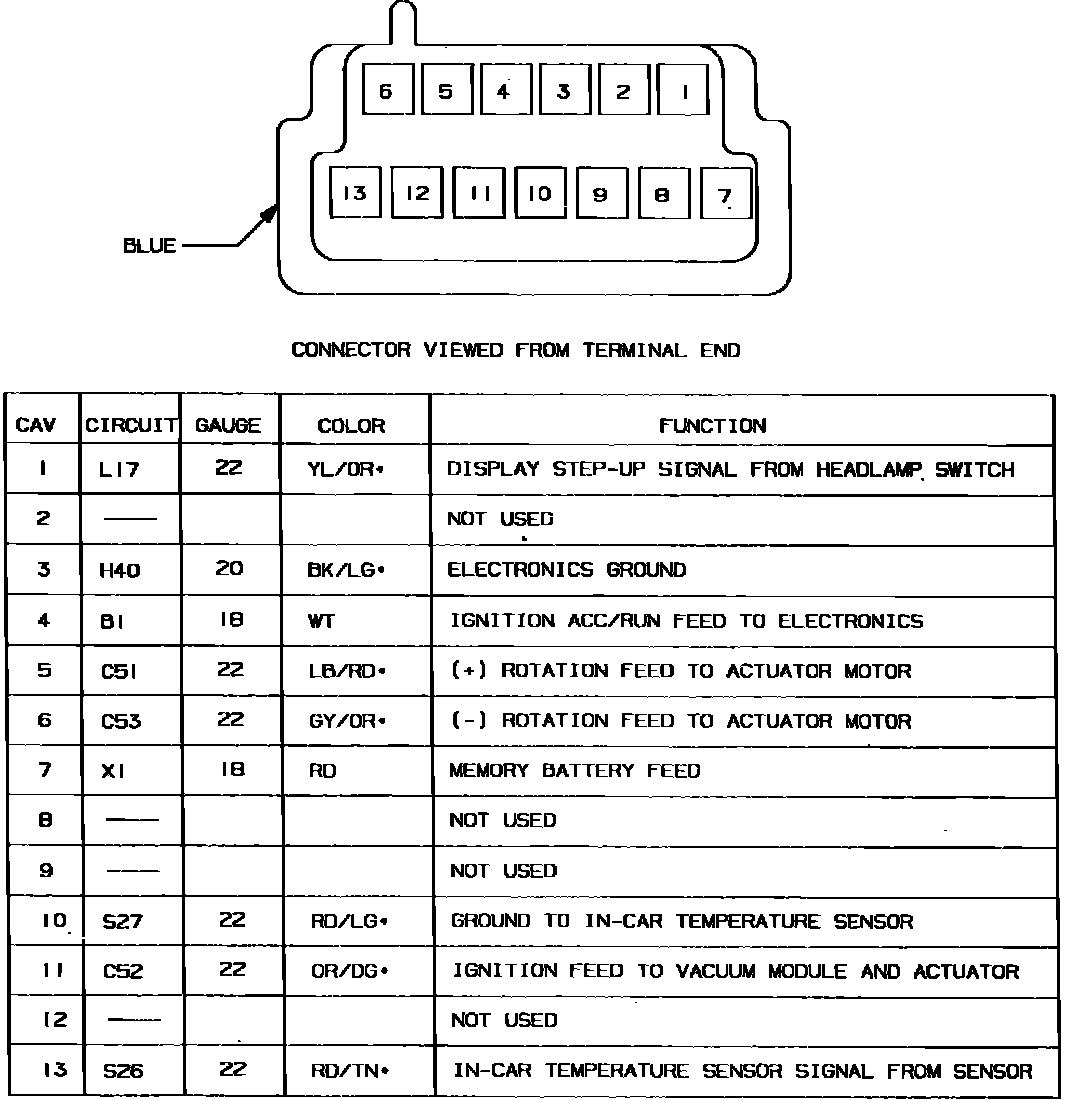

Fig. 5 Automatic Temperature Control Switch Connectors (Part 1 of 2):
