Power and Ground Distribution
>>
Fuse Block
>>

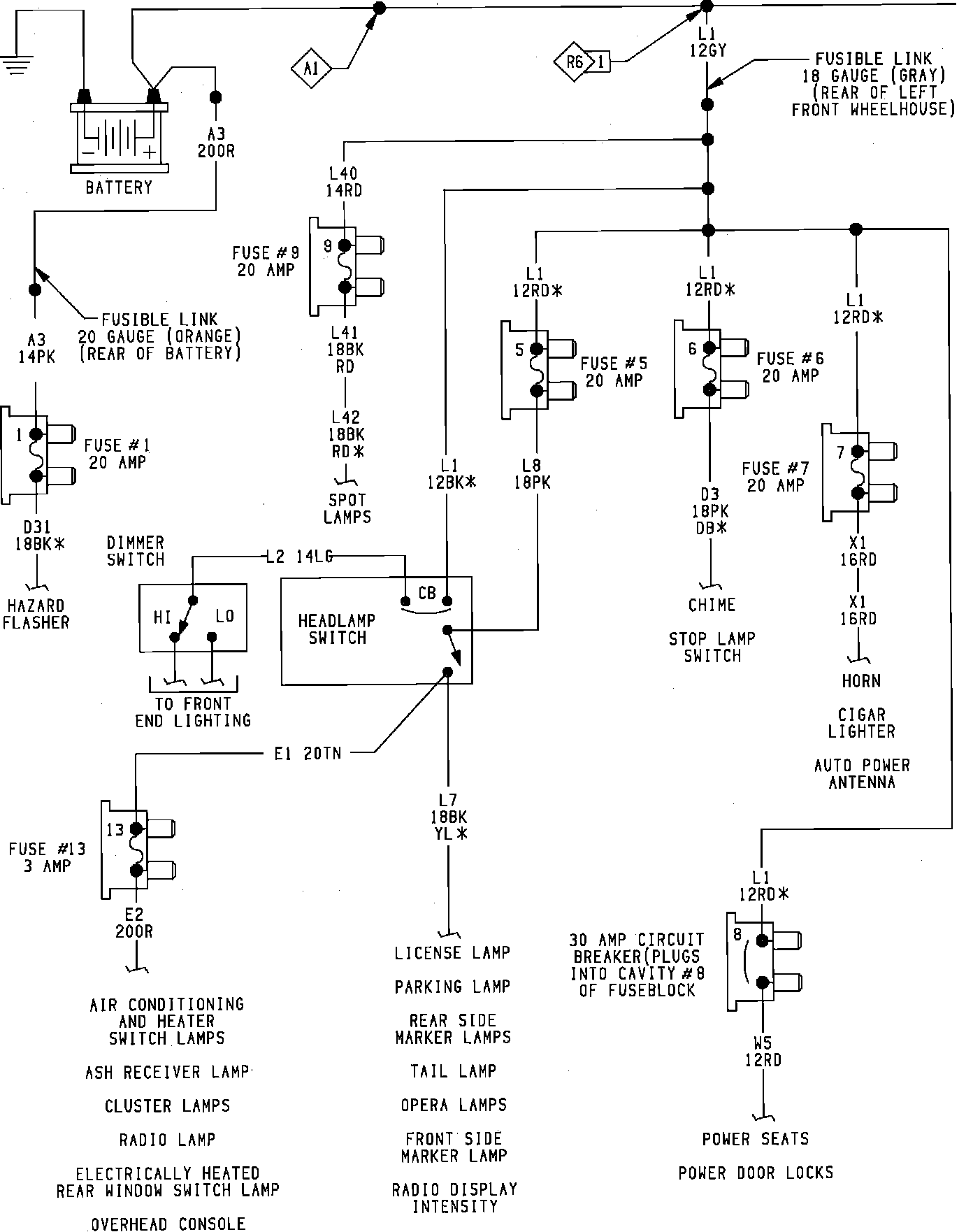

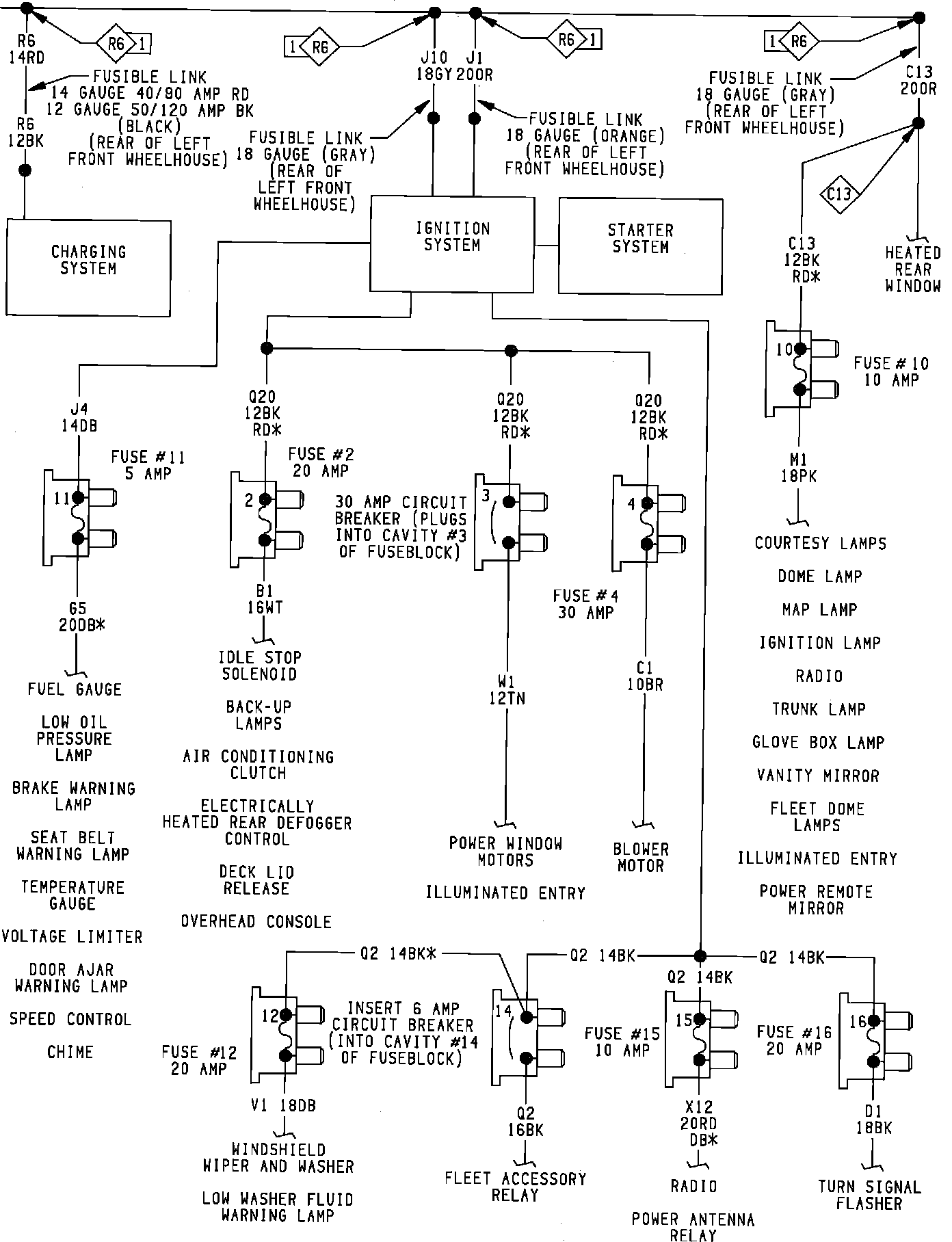

Diagrams
>>
Connector Views
Connector Views
Fuse Panel - Under Instrument Panel, Left Of Steering Column:

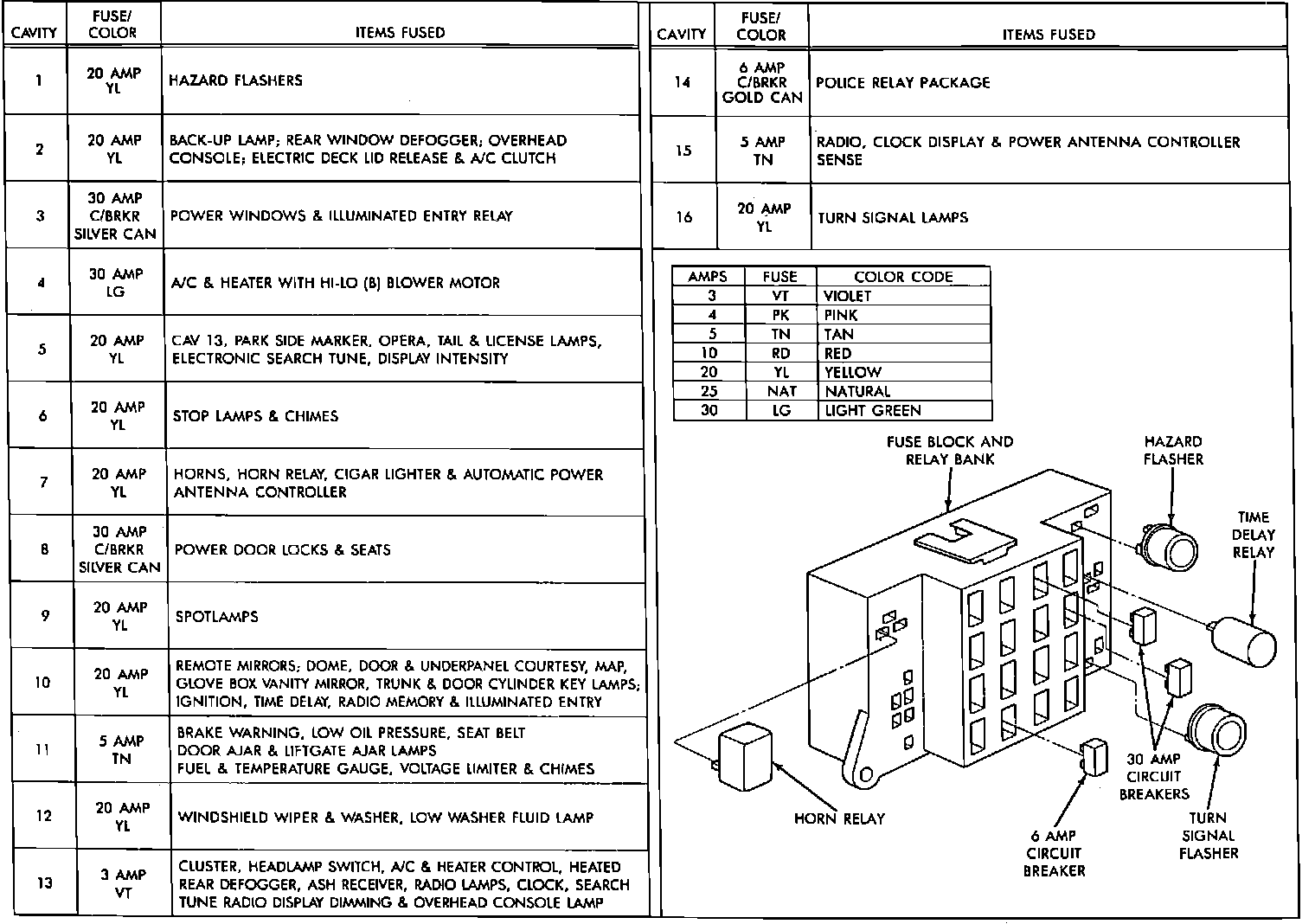

Fuse Application Chart:
Fuse Application Chart:
