76C Repairing Open Low Fuel Warning Lamp Circuit
76C Repairing Open Low Fuel Warning Lamp Circuit

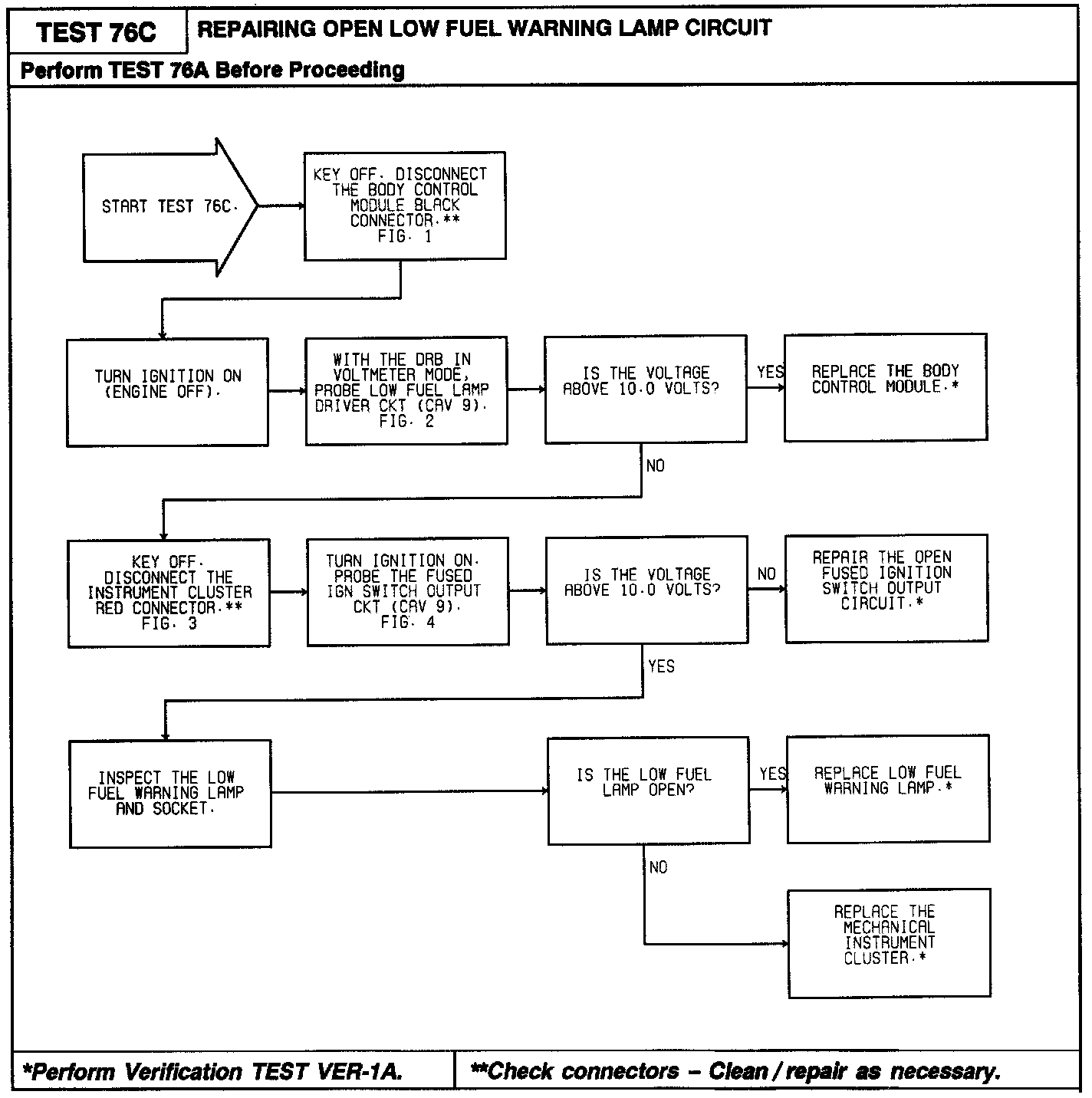

Diagnostic Chart:
Related Images:
