Instrument Panel Outlet Replacement

Ventilators (Instrument Panel) Replacement:

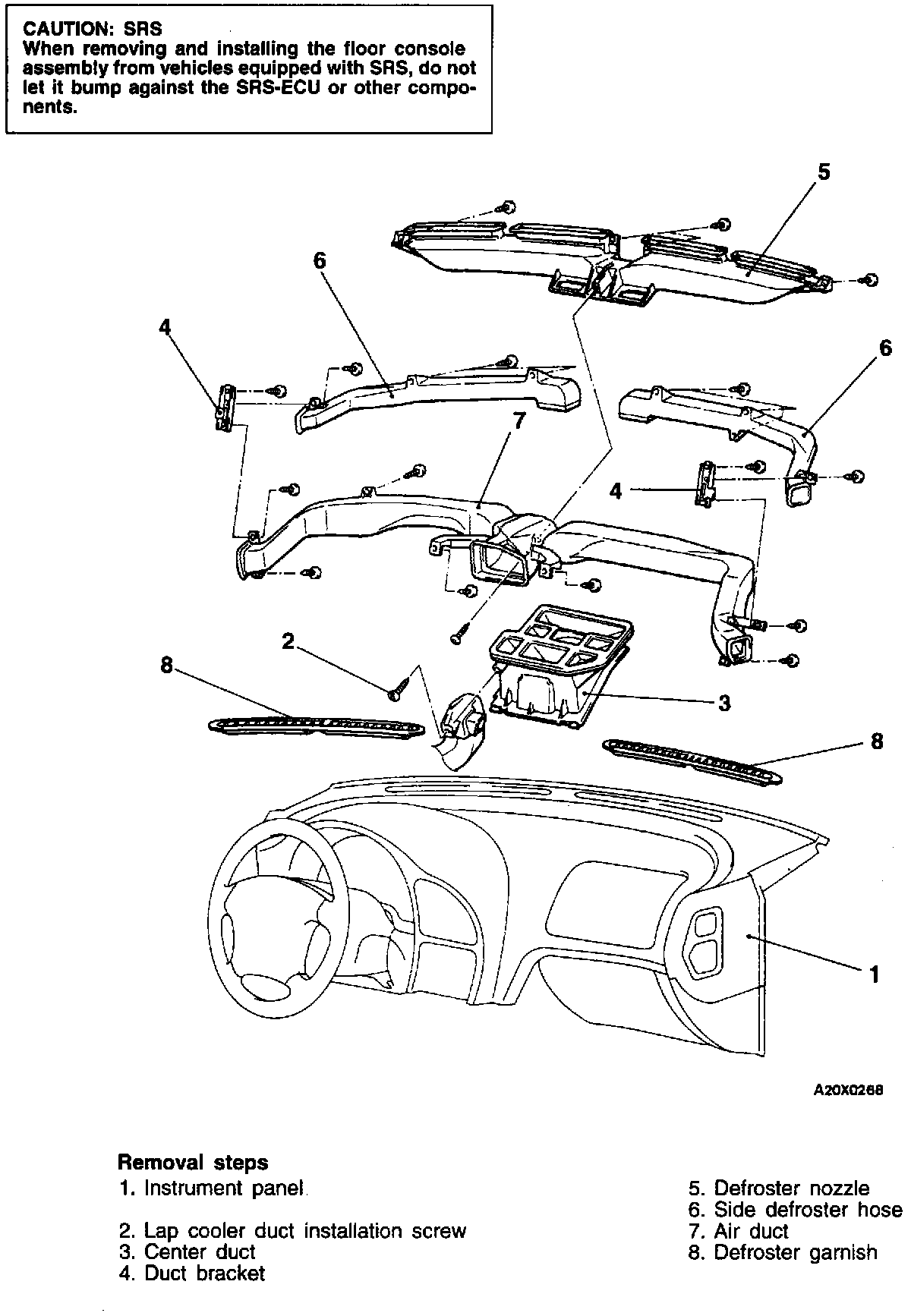

NOTE: For Removal and Installation follow the steps in the image.
