Shift Interlock: Service and Repair

CAUTION: SRS Be careful not to subject the SRS-ECU to any shocks during removal and installation of the key interlock cable and shift lock cable.






REMOVAL

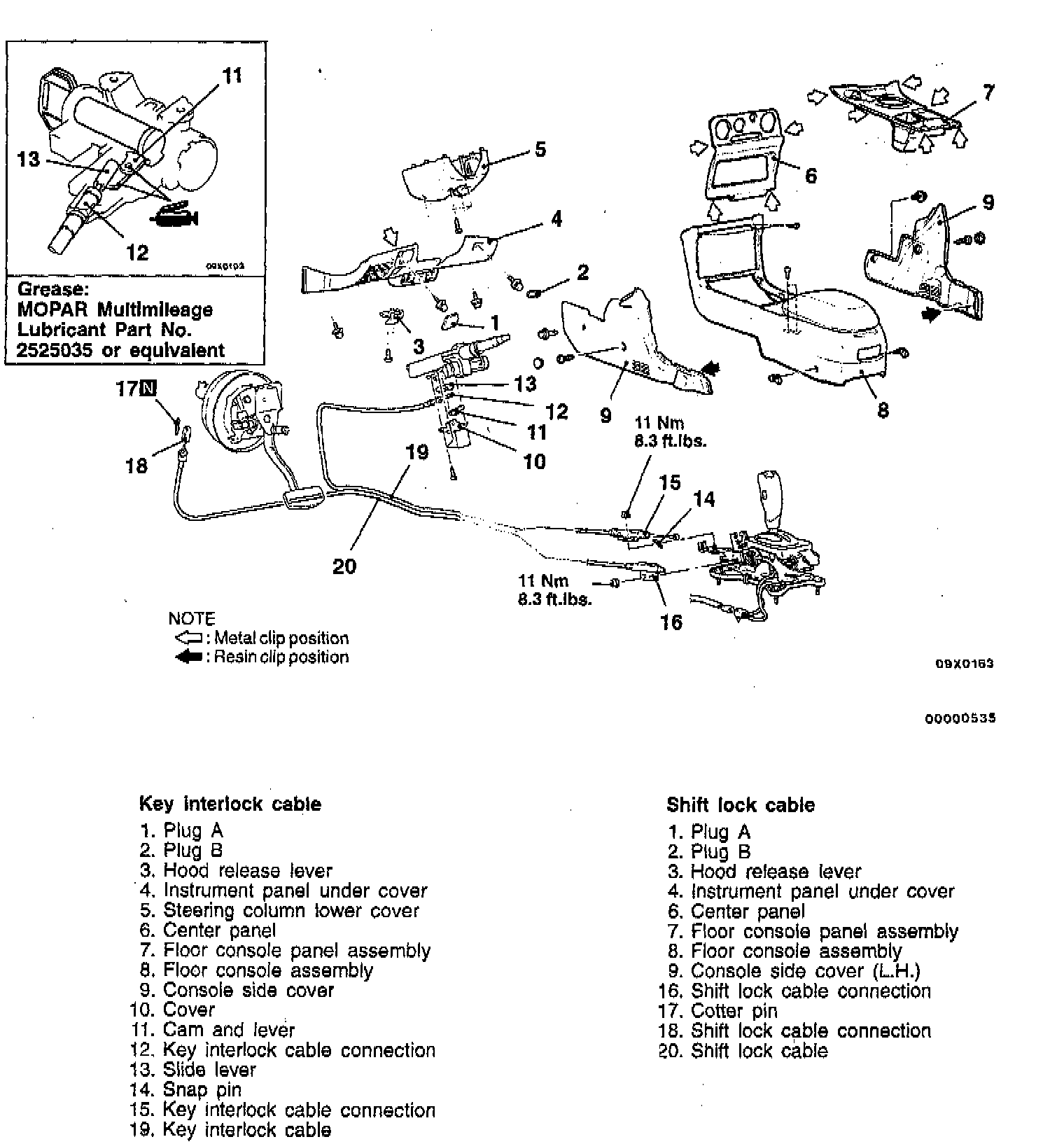

Follow removal steps outlined in the illustration, referring to the following steps.

INSPECTION
Check the cable assemblies for function and for damage.

INSTALLATION
1. Follow removal steps outlined in the illustration in reverse order for installation, referring to the following.

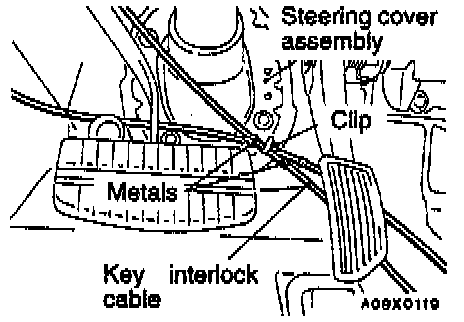

2. Secure the section between the metals of the shift lock cable and key interlock cable with the clip of the steering cover assembly.

CAUTION: Do not change the routing of shift lock cable to the selector lever assembly.





3. Place the selector lever in position "P".

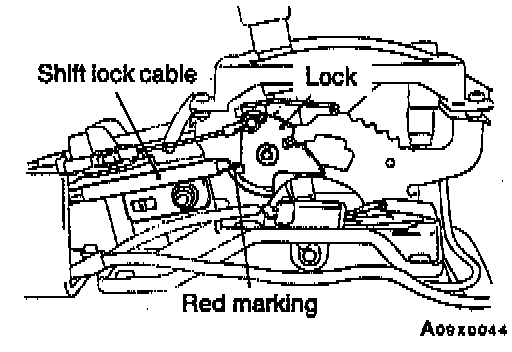

4. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking.





5. Install the key interlock cable on the lock cam.
6. Install the spring and washer of the key interlock cable as shown.
7. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to fasten the key interlock cable.
