Tire Tread Wear Patterns

Under inflation will cause wear on the shoulders of tire. Over inflation will cause wear at the center of tire.

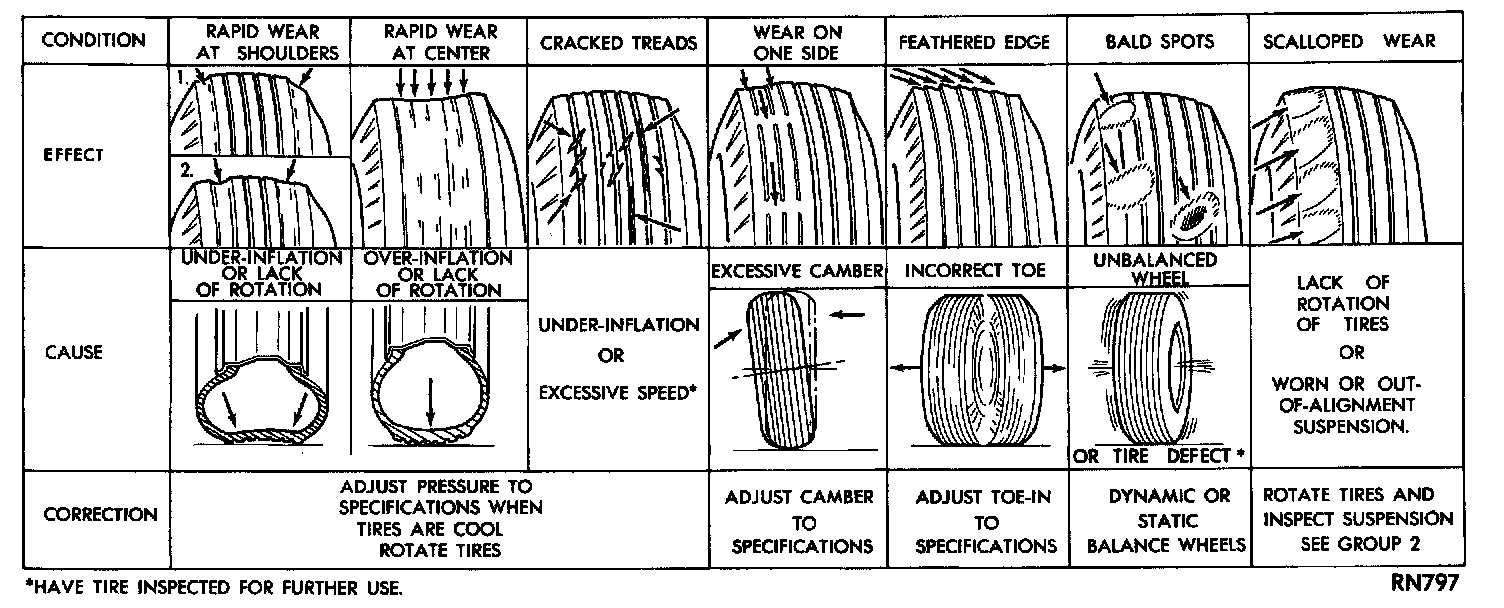

Tire Wear Patterns:

Excessive camber causes the tire to run at an angle to the road. One side of tread is then worn more than the other.

Excessive toe-in or toe-out causes wear on the tread edges and a feathered effect across the tread.
