Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2000
>>
LHS V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

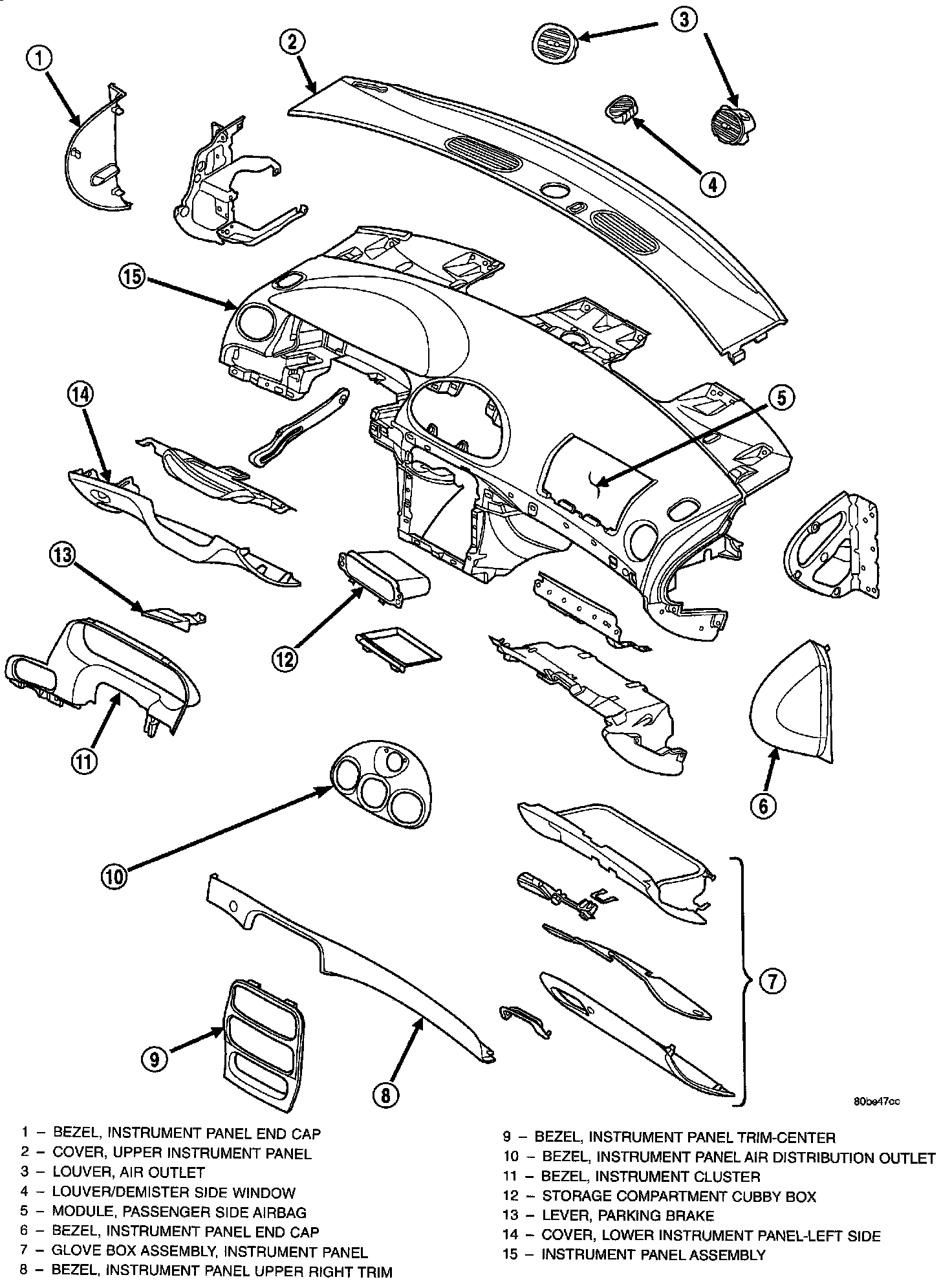

Instrument Panel Components - LHS/300M:
