Home >> Chrysler >> 2000 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Locations >> Connector Locations >> C Connector - Dash Panel

C Connector - Dash Panel

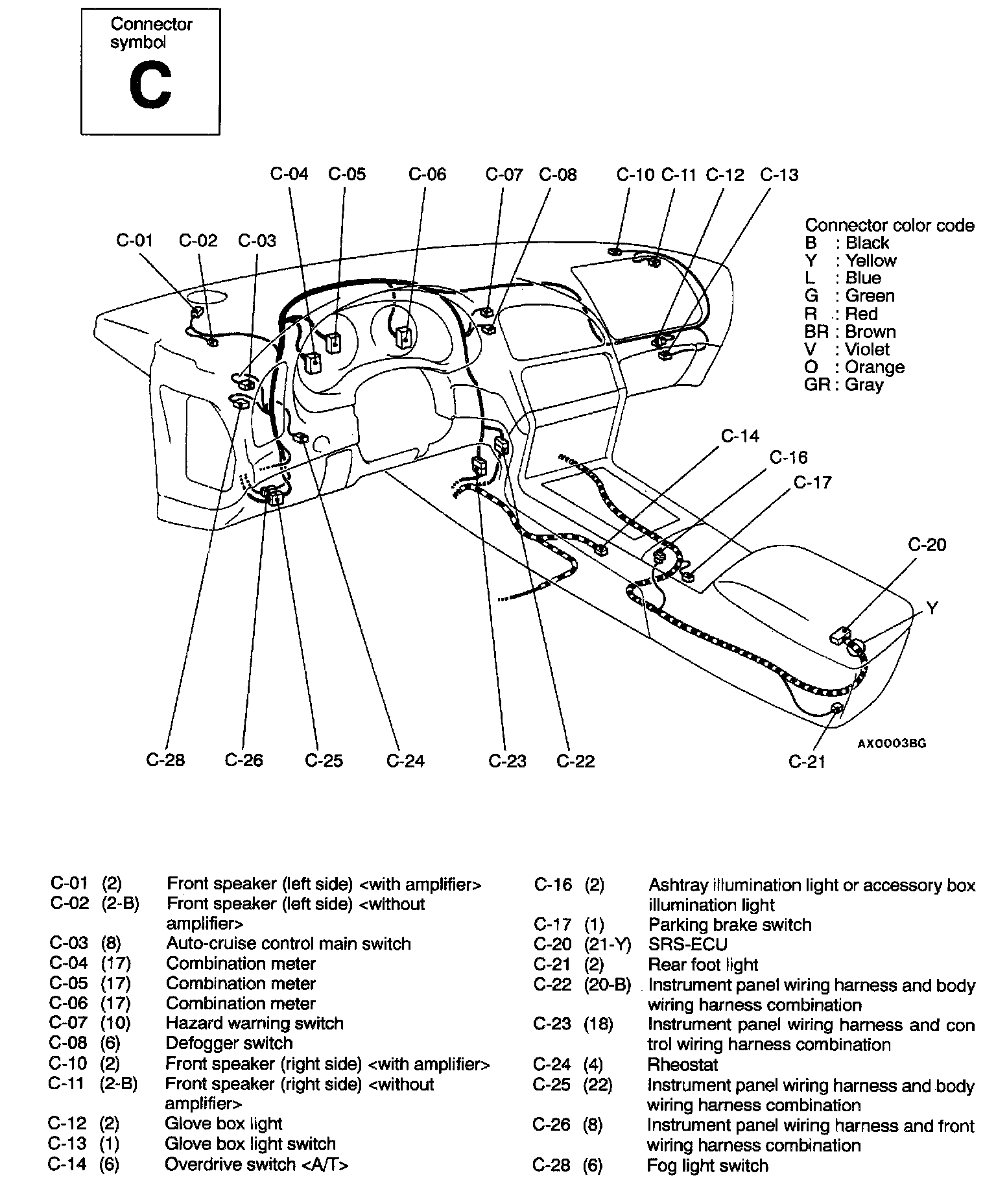

Instrument Panel And Floor Console - C Connectors (01 - 28):
