Passenger Heated Seat Switch Open/Shorted to Ground

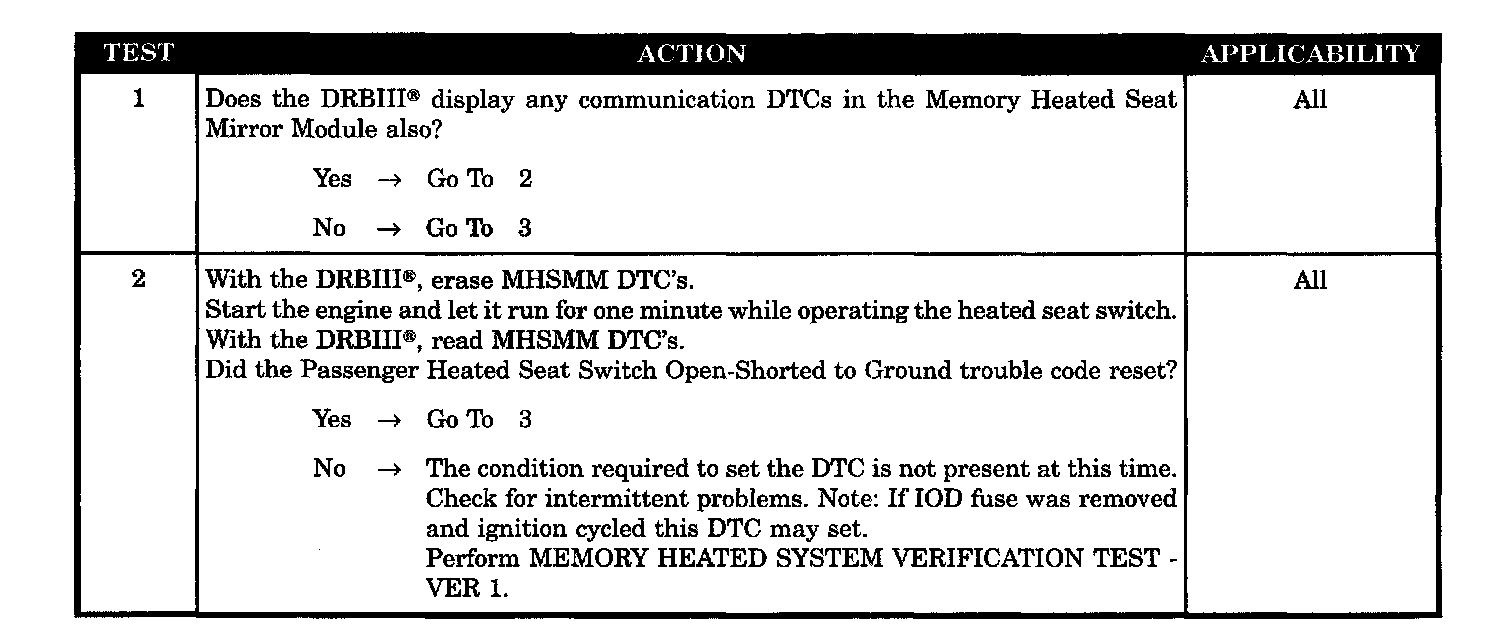

Tests 1 - 2:

Tests 3 - 7:

SYMPTOM
PASSENGER HEATED SEAT SWITCH OPEN/SHORTED TO GROUND

WHEN MONITORED
Ignition ON.

SET CONDITION
If the switch is open or grounded the MHSMM Will have a loss of switch feed back and this code will set immediately. Once the condition is resolved the switch will return to it's normal operation.

POSSIBLE CAUSES
- Fused ignition switch output st-run open
- Passenger seat heater switch MUX circuit open
- Erase and read MHSMM DTC
- Passenger heated seat switch
- Passenger seat heater switch MUX circuit short to ground
- Memory heated seat mirror module
