Driver Mirror Inoperative From Memory

Tests 1 - 2:

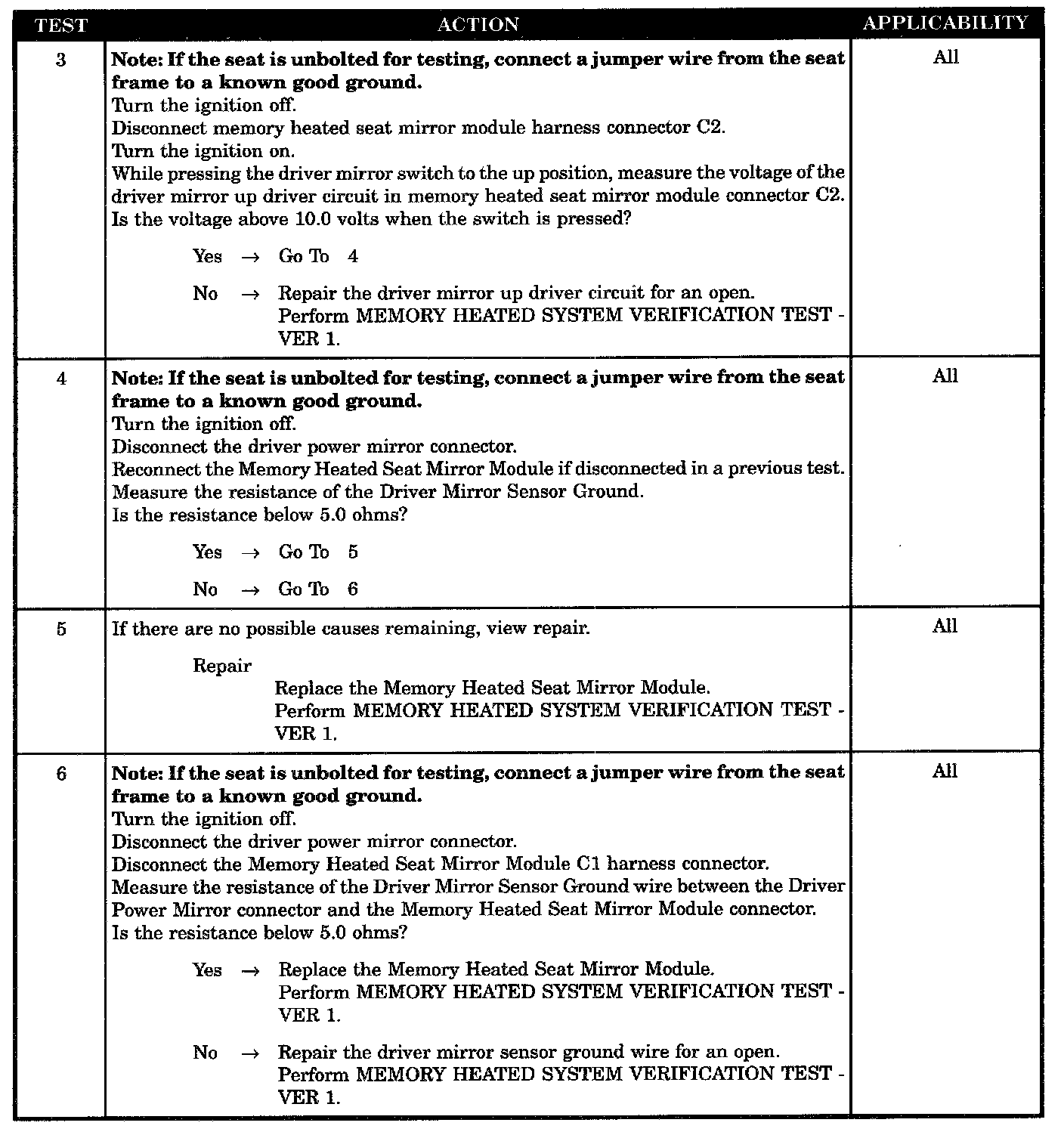

Tests 3 - 6:

SYMPTOM
DRIVER MIRROR INOPERATIVE FROM MEMORY

POSSIBLE CAUSES
- Driver mirror left driver circuit open
- Driver mirror sensor ground wire open
- Driver mirror-common driver circuit open
- Driver mirror-up driver circuit open
- Memory heated seat mirror module
- Memory heated seat mirror module-sensor ground
