Wiper Not Working In the High Speed

Tests 1 - 3:

Tests 4 - 8:

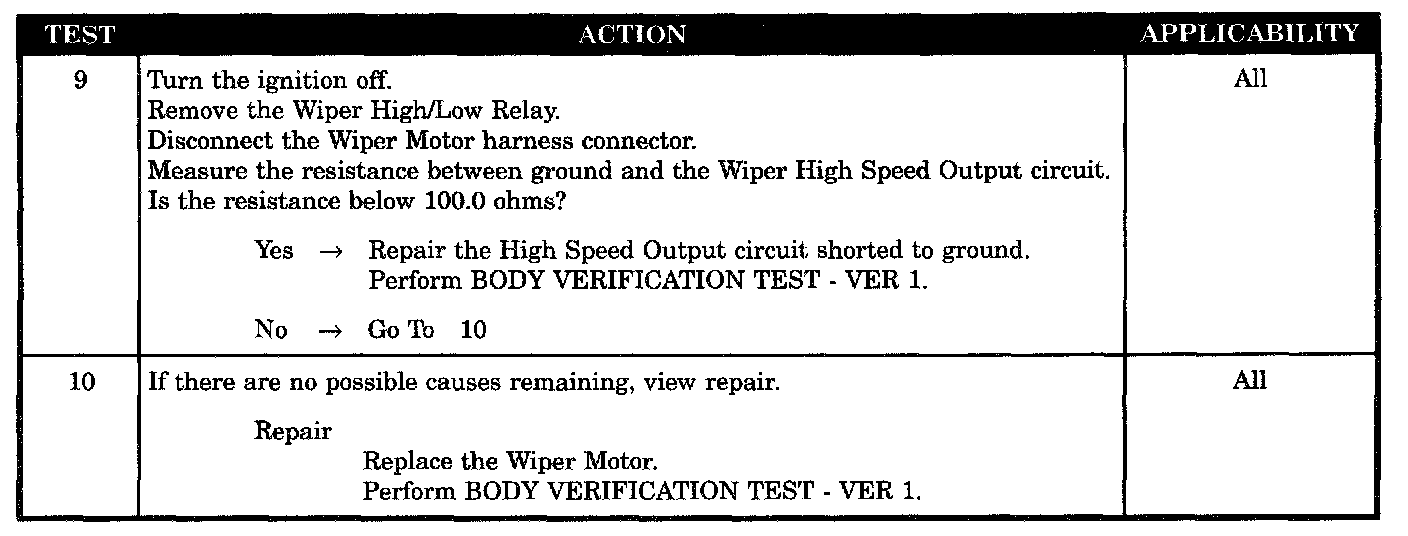

Tests 9 - 10:

SYMPTOM
WIPER, NOT WORKING IN THE HIGH SPEED

POSSIBLE CAUSES
- Wiper high/low relay
- Multi-function switch high switch open
- Wiper high/low relay control CKT short to voltage
- Wiper high/low relay control circuit open
- Fused B(+) CKT open
- High speed output circuit open
- High speed output shorted to ground
- BCM
- Wiper motor-hi speed relay
