Electrical Diagrams
Electrical Diagrams
Power Distribution System Part 1:
Power Distribution System Part 2:
Power Distribution System Part 3:

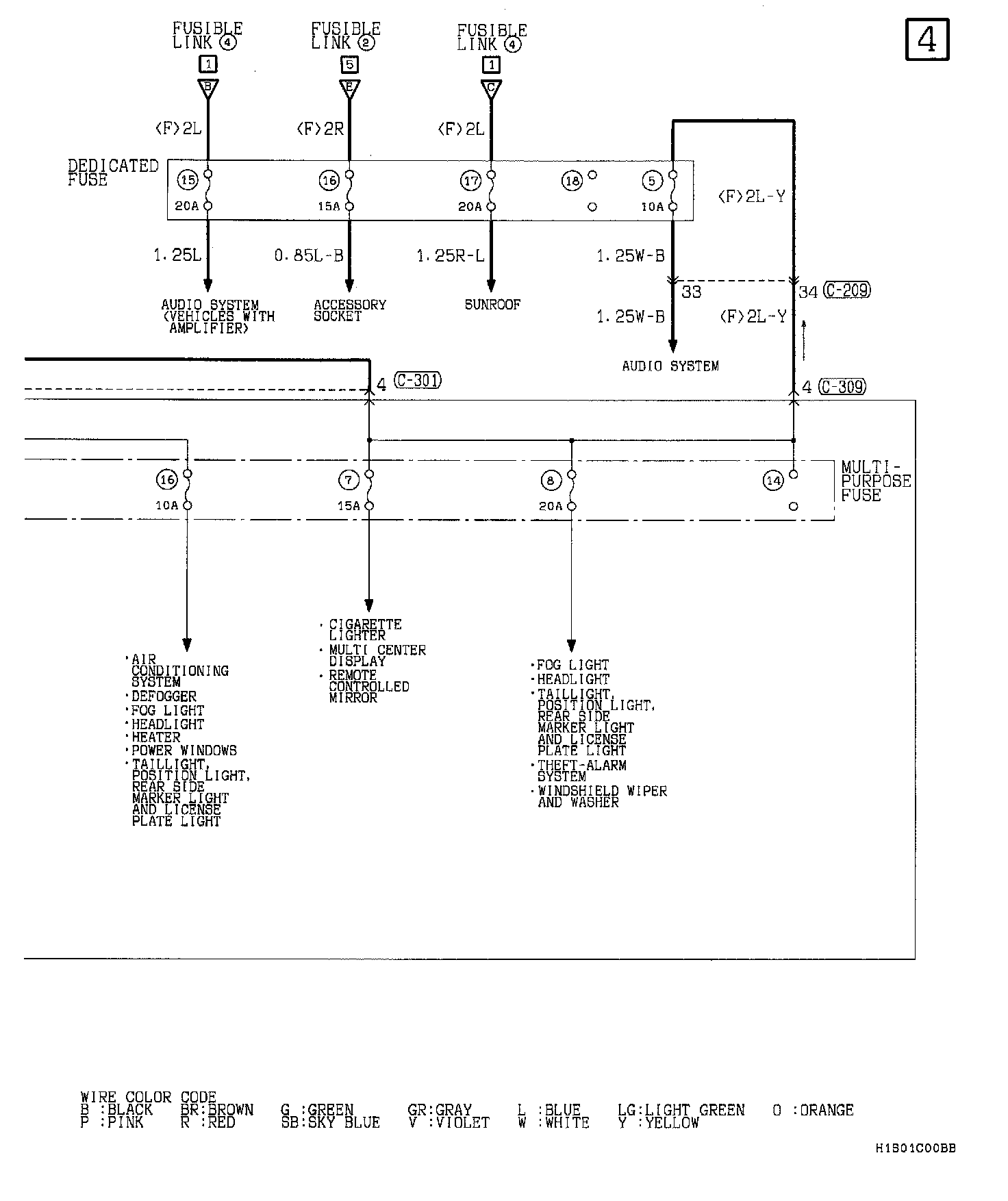

Power Distribution System Part 4:
Power Distribution System Part 5:
