Sunroof Motor Assembly

Sunroof Motor Assembly Terminal No: 1 - 6:

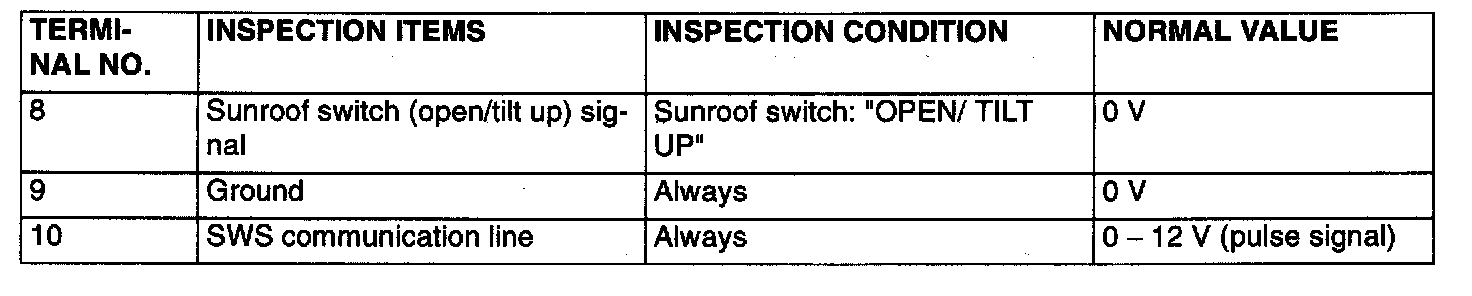

Sunroof Motor Assembly Terminal No: 8 - 10:
