Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
Trunk / Liftgate Switch
Trunk / Liftgate Switch

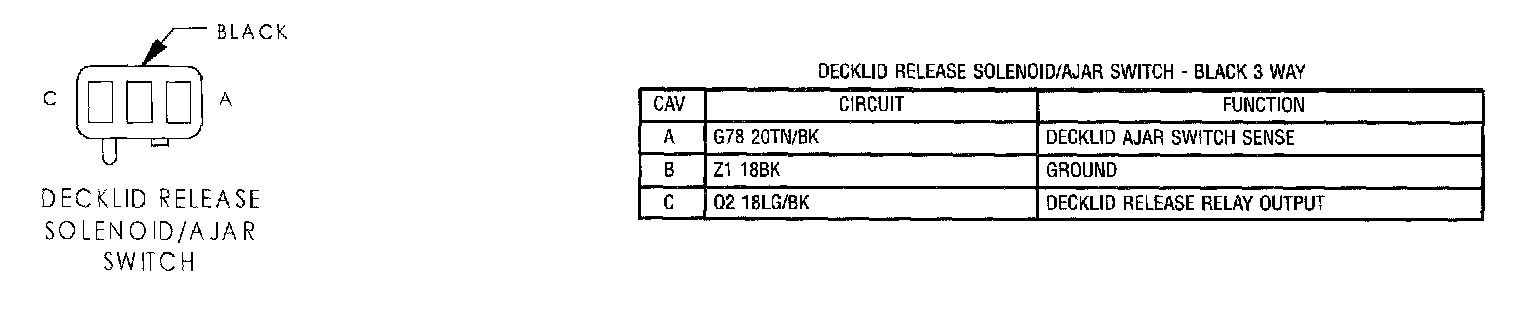

Decklid Release Solenoid/Ajar Switch:

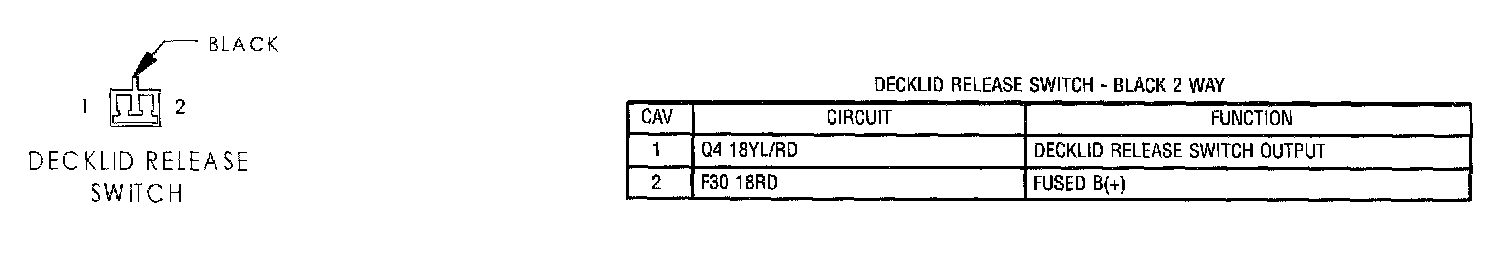

Decklid Release Switch:
