Fog/Driving Lamp
>>
System Diagram
System Diagram

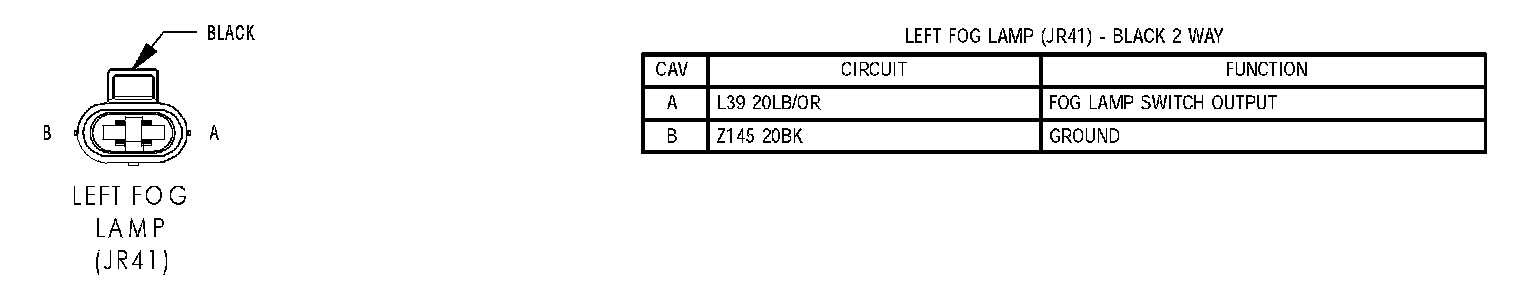

Left Fog Lamp (JR41):

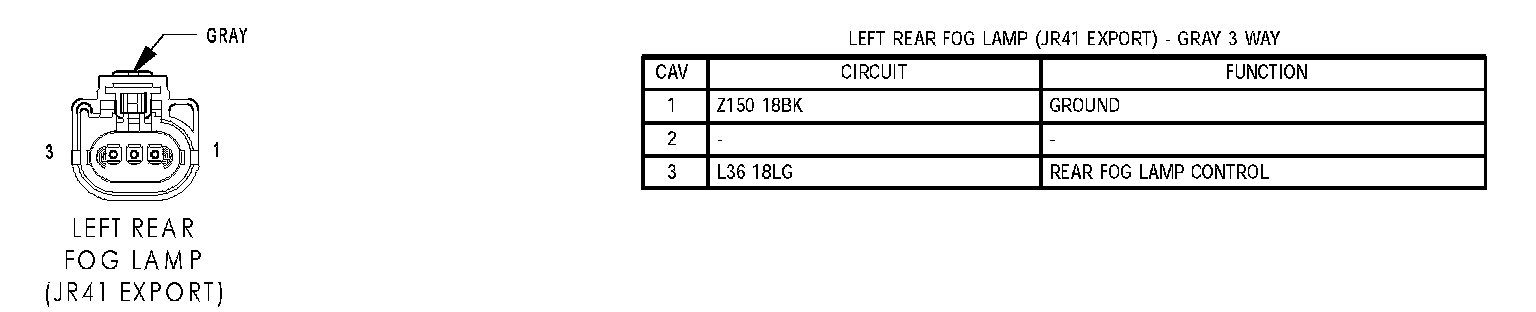

Left Rear Fog Lamp (JR41 Export):

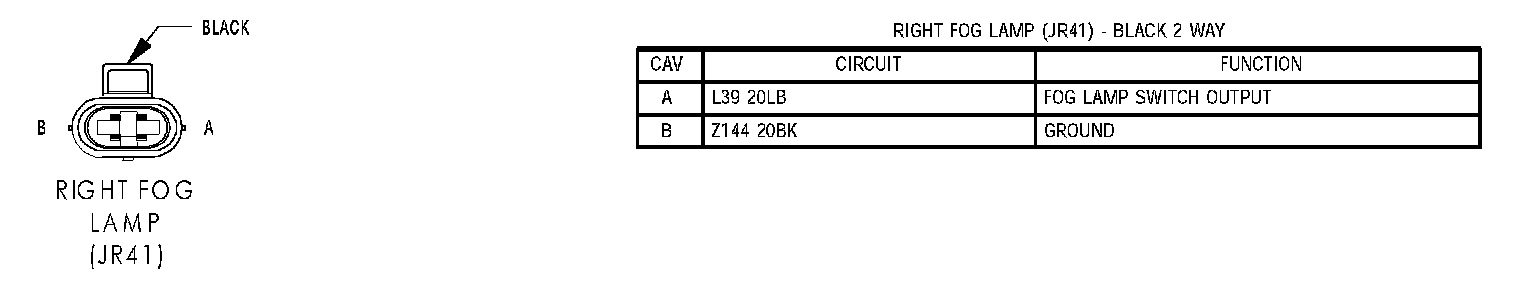

Right Fog Lamp (JR41):

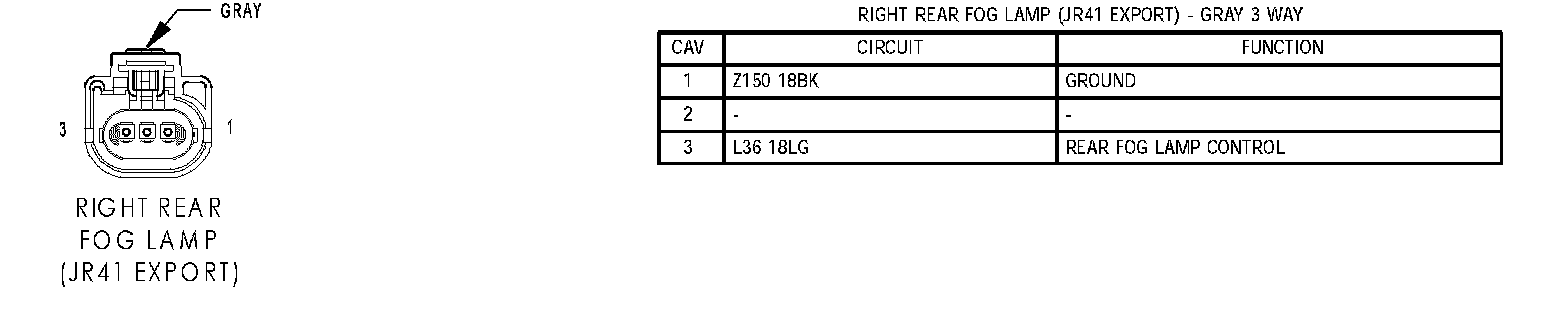

Right Rear Fog Lamp (JR41 Export):
