Component Tests and General Diagnostics
The most reliable, efficient, and accurate means to diagnose the power lock system requires the use of a DRBIII(R) scan tool and the proper Diagnostic Procedures. Refer to power locks electrical diagnostics.
WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
When trouble shooting problems with the power locks system, always verify that the power lock switch is functional. If the doors, rear liftgate, or fuel door do not lock/unlock with the power lock switch, the following system components should be analyzed:
- Power door lock switch
- Body Control Module (BCM)
- Remote Keyless Entry Relay
- Power Lock/Actuator assemblies
- Sentry Key Remote Entry Module (SKREEM)
- Central Locking Pump/Security System Module
- Pneumatic supply lines
There are three main electronic control modules which are interdependent on each other to complete lock/unlock commands, they are the BCM, SKREEM, and Central Locking Pump/Security System Module. These modules cannot be adjusted or repaired. For complete power locks diagnosis procedures, see power locks electrical diagnostics.
PNEUMATIC SUPPLY LINES

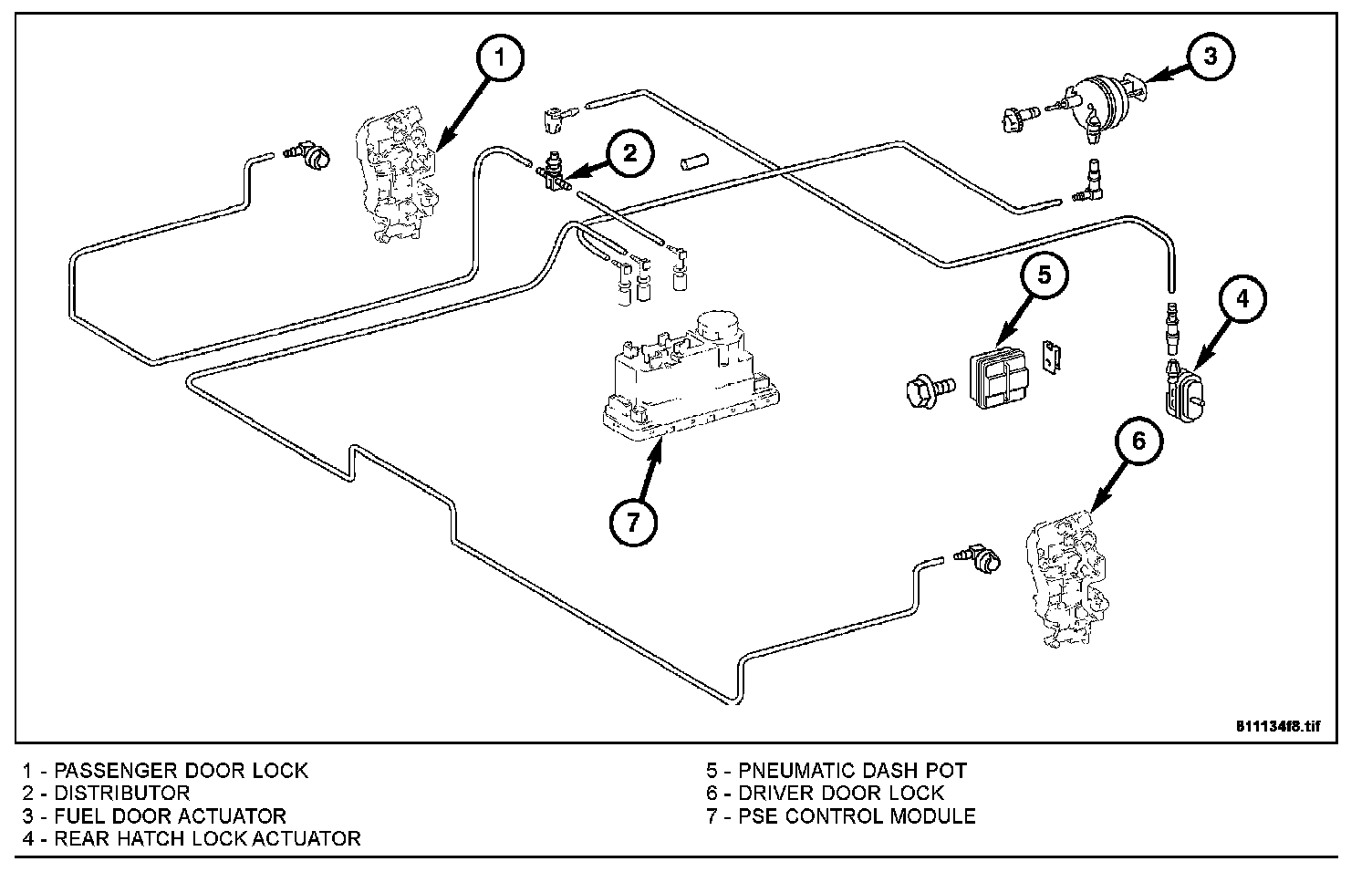

The power lock actuators are controlled by pneumatic supply lines that transfer either vacuum or pressure from the Central Locking Pump/Security System Module to the component through distributors. When trouble shooting problems related to the pneumatic portion of the power lock system, a preliminary inspection should be performed to determine that the pneumatic supply lines and harness connectors are free from kink or blockage damage. If necessary, repairs to the pneumatic supply lines or harness connectors must be performed first before proceeding with additional power lock system diagnosis.
SUPPLY LINE/ACTUATOR TESTING
When trouble shooting a pneumatic supply line or actuator for the power lock system, perform the following steps:
Entire System
1. Disconnect the pneumatic supply line connected to the Central Locking Pump/Security System Module.
2. Using a hand held vacuum pump, connect an appropriate rubber hose 2 in. (50 mm) long to the disconnected pneumatic supply line.
3. Apply 600 mbar (17.7 in. Hg) pressure to the pneumatic supply line for 1 minute.
If after 1 minute the vacuum loss is less than 30 mbar (0.9 in. Hg), the pneumatic supply lines and actuators are not the cause of the fault. If after 1 minute the vacuum loss is greater than 30 mbar (0.9 in. Hg), perform the Pneumatic line with actuator test.
Pneumatic Line with actuator

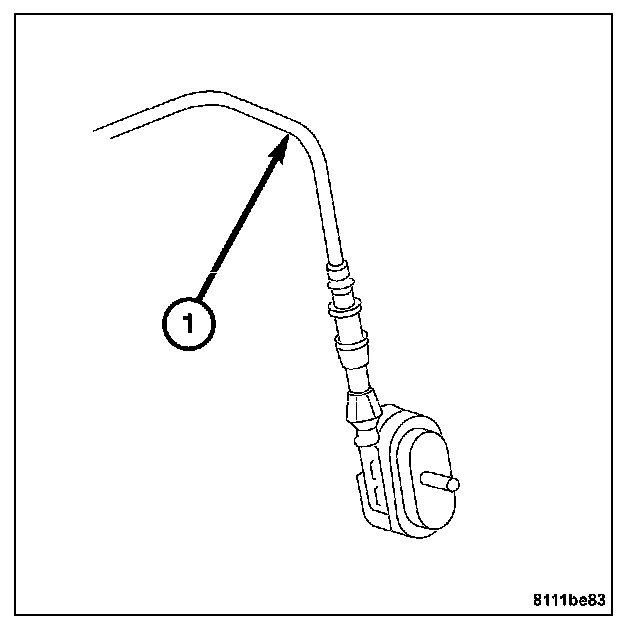

1. Disconnect the pneumatic supply line (1) connected to the pneumatic distributor.
2. Using a hand held vacuum pump, connect an appropriate rubber hose 2 in. (50 mm) long to the disconnected pneumatic supply line (1).
3. Apply 600 mbar (17.7 in. Hg) pressure to the pneumatic supply line for 1 minute.
If after 1 minute the vacuum loss is less than 30 mbar (0.9 in. Hg), the pneumatic supply lines and actuator are not the cause of the fault. If after 1 minute the pressure loss is greater than 30m bar (0.9 in. Hg), perform the Pneumatic line test.
Pneumatic Line
1. Disconnect the pneumatic supply line connected to the pneumatic distributor and block off.
2. Disconnect the pneumatic supply line connected to the actuator and connect a hand held vacuum pump.
3. Apply 300 mbar (8.9 in. Hg) vacuum to the pneumatic supply line for 1 minute.
If after 1 minute the vacuum loss is 0 mbar (0 in. Hg), then replace the actuator. If after 1 minute the vacuum loss is greater than 0 mbar (0 in. Hg), repair the pneumatic supply line.
