Brake Pedal Assy: Service and Repair

PEDAL

REMOVAL

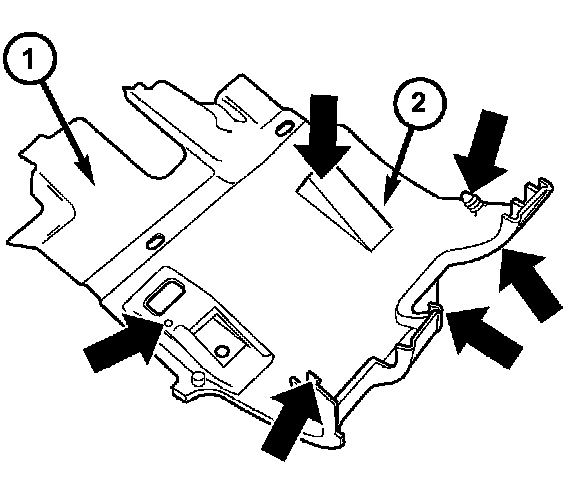

1. Remove the instrument panel lower cover (2) off of the instrument panel.

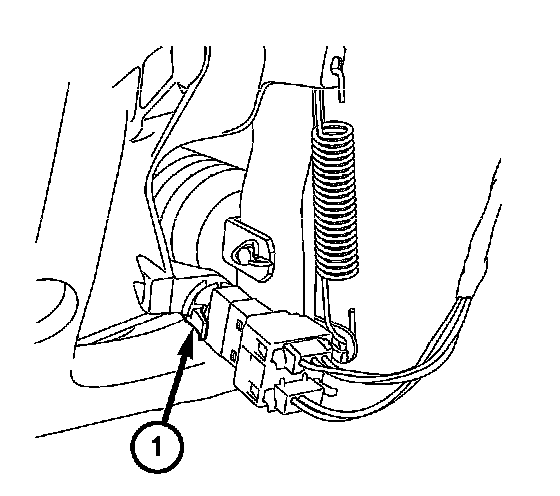

2. Disconnect the stop lamp connector from the stop lamp switch (1).

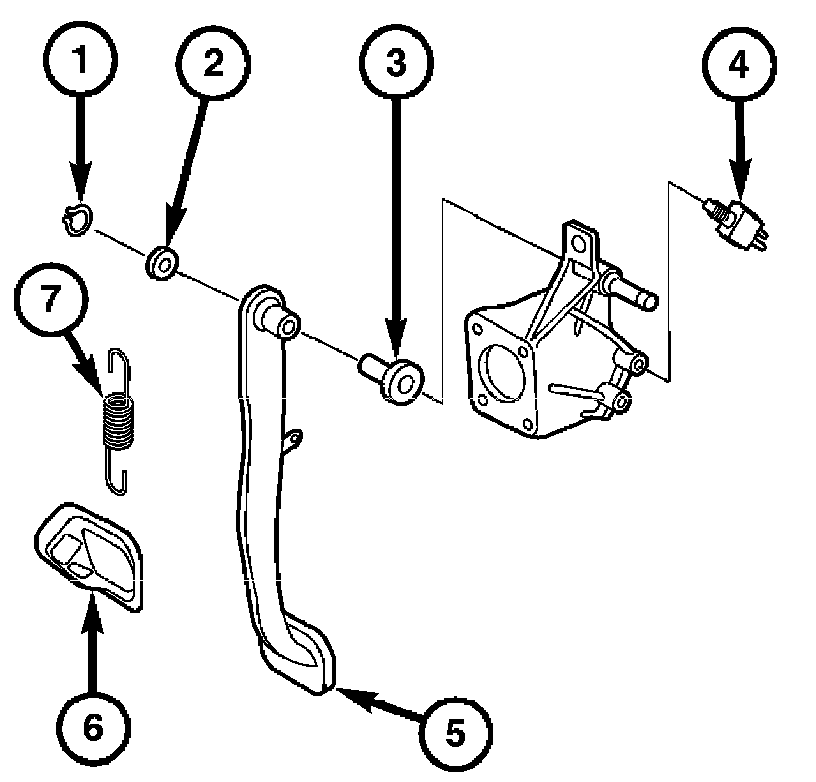

3. Remove the return spring (7).
4. Remove the c-clip (1).
5. Remove the washer (2).
6. Remove the bushing (3).
7. Remove the brake pedal from the bracket (5).

INSTALLATION





1. Install the brake pedal (5) to the bracket.
2. Install the bushing (3).
3. Install the washer (2).
4. Install the c-clip (1).
5. Install the return spring (7).





6. Install the stop lamp switch electrical connector (1) to the stop lamp switch.





7. Install the instrument panel lower cover (2) to the instrument panel.
