Chrysler
>>
2004
>>
Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
Connector Views
Connector Views

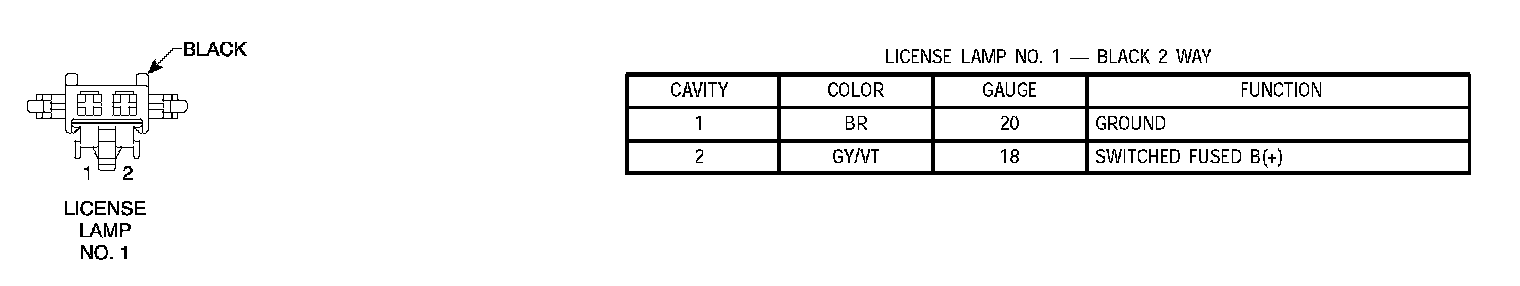

License Lamp No. 1:

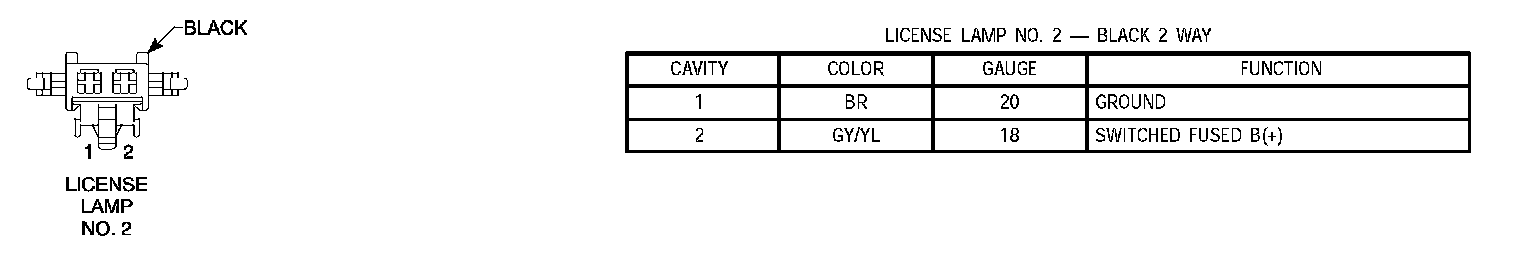

License Lamp No. 2:
