Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.




2. Remove the air cleaner housing.
3. Disconnect the Manifold Absolute Pressure (MAP) harness connector.

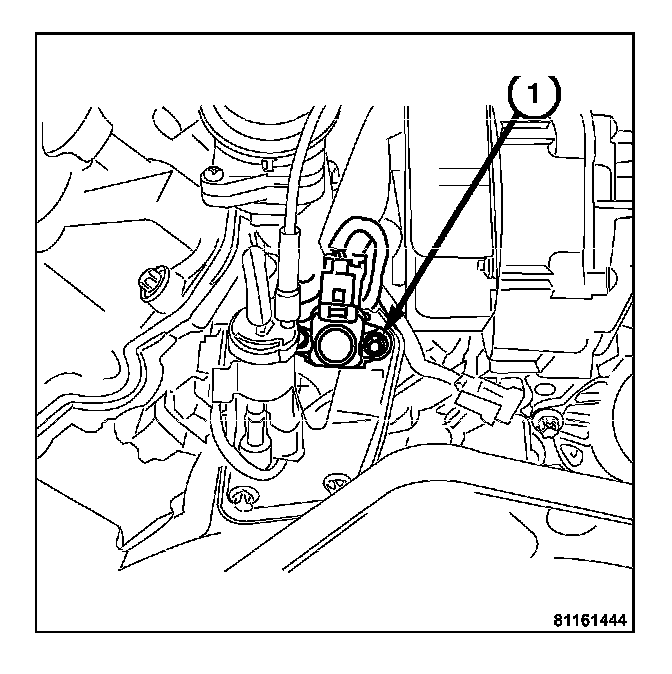

4. Remove the retaining bolt (1).
5. Remove the (MAP) sensor.

INSTALLATION
1. Install the MAP sensor.




2. Install the bolt (1).
3. Connect the Manifold Absolute Pressure (MAP) harness connector.
4. Install the air cleaner housing.
5. Connect the negative battery cable.
