Windshield Washer Spray Nozzle: Service and Repair

WASHER NOZZLE

REMOVAL




1. Remove the cowl grille.

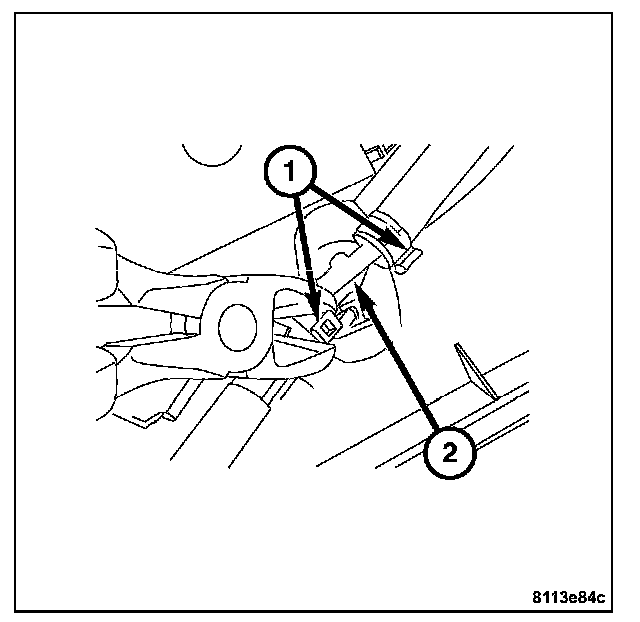

2. Remove the clamp(s) (1) attaching the hose to the washer nozzle (2).




3. Insert a screwdriver into the slot between the washer nozzle (1) and the cowl grille (2) pressing inward to release the retaining clip. Remove the washer nozzle.

INSTALLATION




1. Install the washer nozzle (1) into the cowl grille (2). Press downward with a rocking motion until the retaining clip is fully seated.

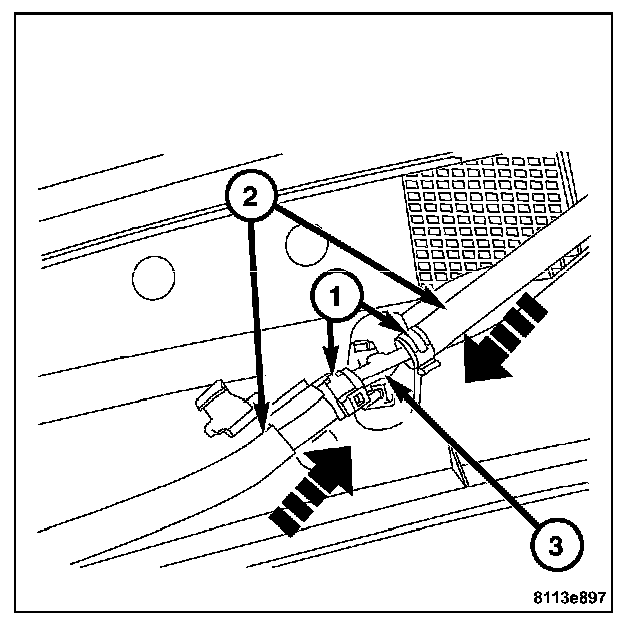

2. Install the washer hose clamps (1) onto the washer hose (2).
3. Install the washer hose (2) over the washer nozzle (3).
4. Tighten the washer clamps (1) onto the washer nozzle (3) allowing approximately 0.78 inch (20 mm) clearance between the washer hoses.
