Wiper Blade: Adjustments

WINDSHIELD WIPER BLADE ALIGNMENT

WARNING: THE WINDSHIELD WIPER MECHANISM CAN PINCH, CRUSH OR, IN EXTREME CASES, EVEN SEVER EXTREMITIES. ALWAYS REMOVE THE IGNITION KEY WHEN WORKING ON WINDSHIELD WIPER MECHANISM.

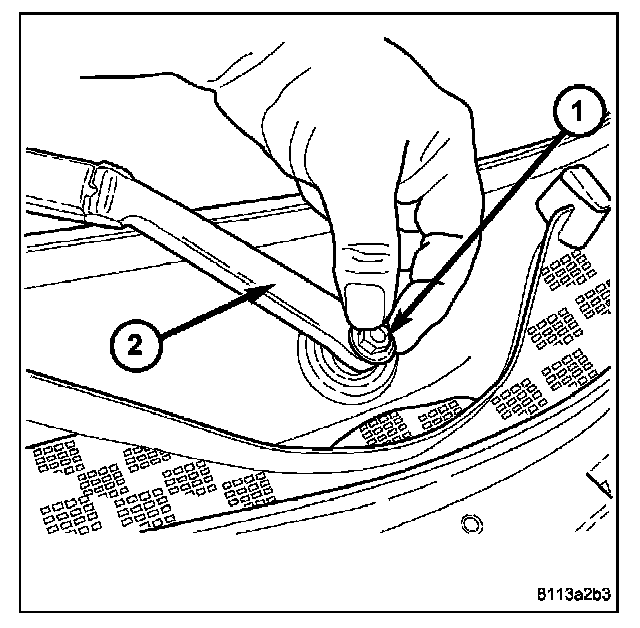

1. Remove both of the wiper arms (2).

2. Turn the ignition switch to the ACC or ON/RUN position.
3. Rotate the multifunction switch to the LO position for approximately 2 seconds, then rotate back to the OFF position. Ensure the wiper arm pivots have stopped in the park position.

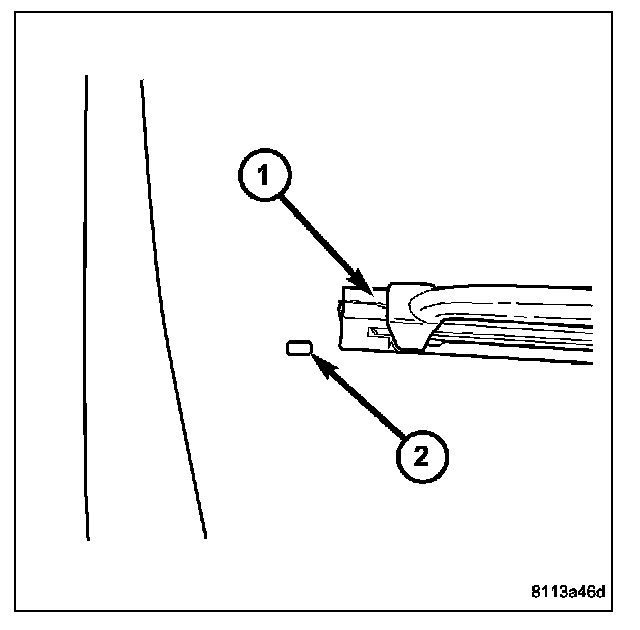

4. Install the wiper arm so the blade (1) is aligned with the mark on the windshield (2) and secure.
