Antenna Control Module: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove headliner to access antenna module.

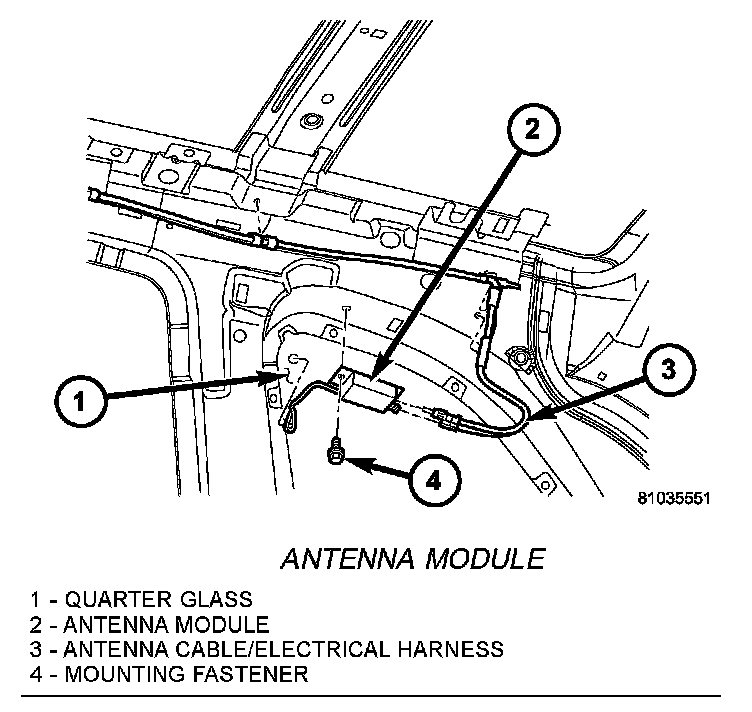

Antenna Module:

3. Disconnect antenna coax cable lead and electrical harness connector from antenna module.
4. Disconnect the antenna module connector from the quarter glass.
5. Remove the mounting screw and the antenna module.

INSTALLATION
1. Install the antenna module and the mounting fastener Tighten to 85 Nm (75 in lbs).
2. Connect the antenna connector to the quarter glass.
3. Connect the antenna lead and electrical connector to the antenna module.
4. Install headliner.
5. Connect the battery negative cable.
