Power Doors - Liftgate
Power Doors - Liftgate

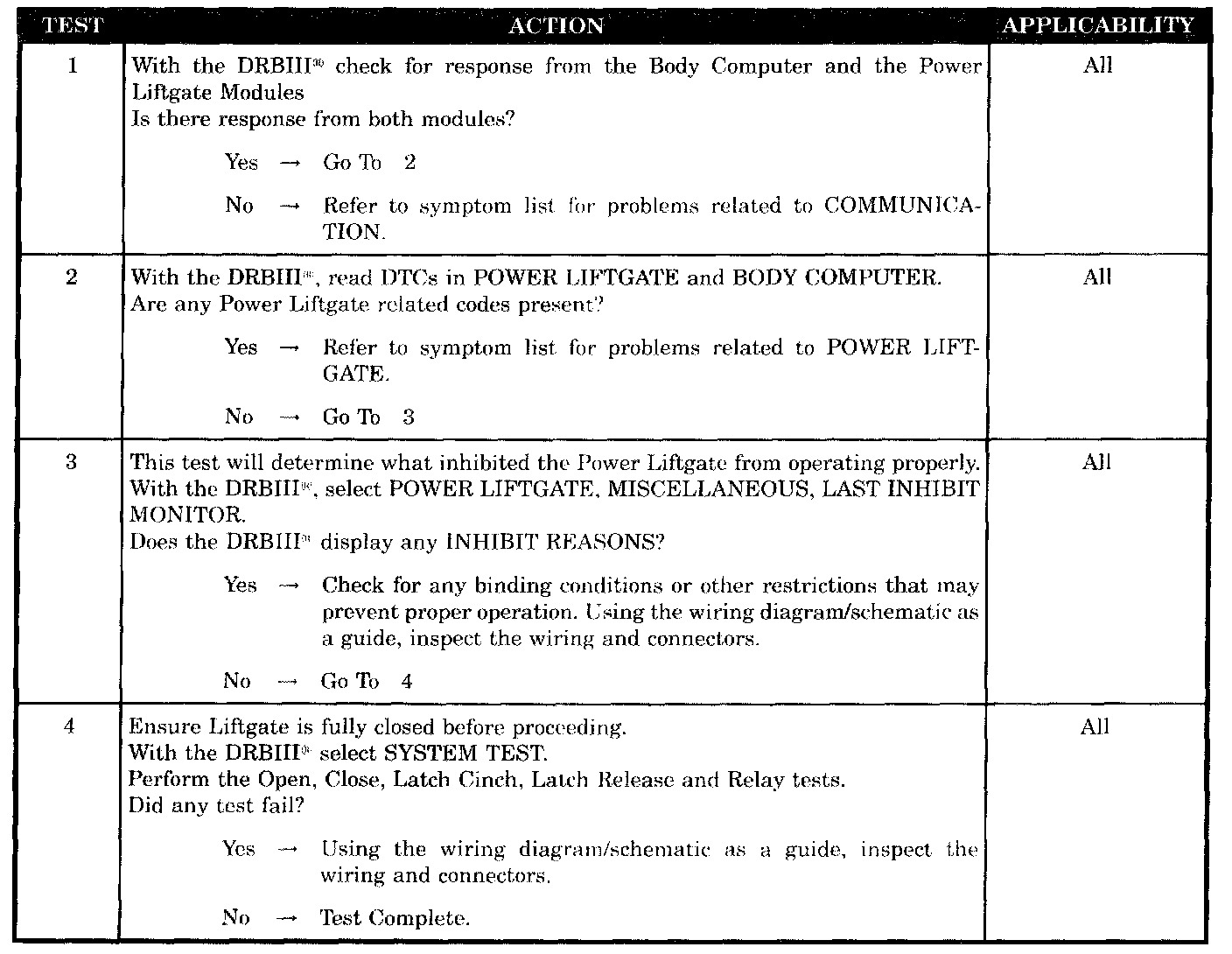

Test 1 - 4:
SYMPTOM
POWER LIFTGATE INOPERATIVE
POSSIBLE CAUSES
-
DTC's present
-
Module response
-
Intermittent problem
-
System tests
