Brakes and Traction Control: Testing and Inspection

DIAGNOSIS AND TESTING - BASE BRAKE SYSTEM

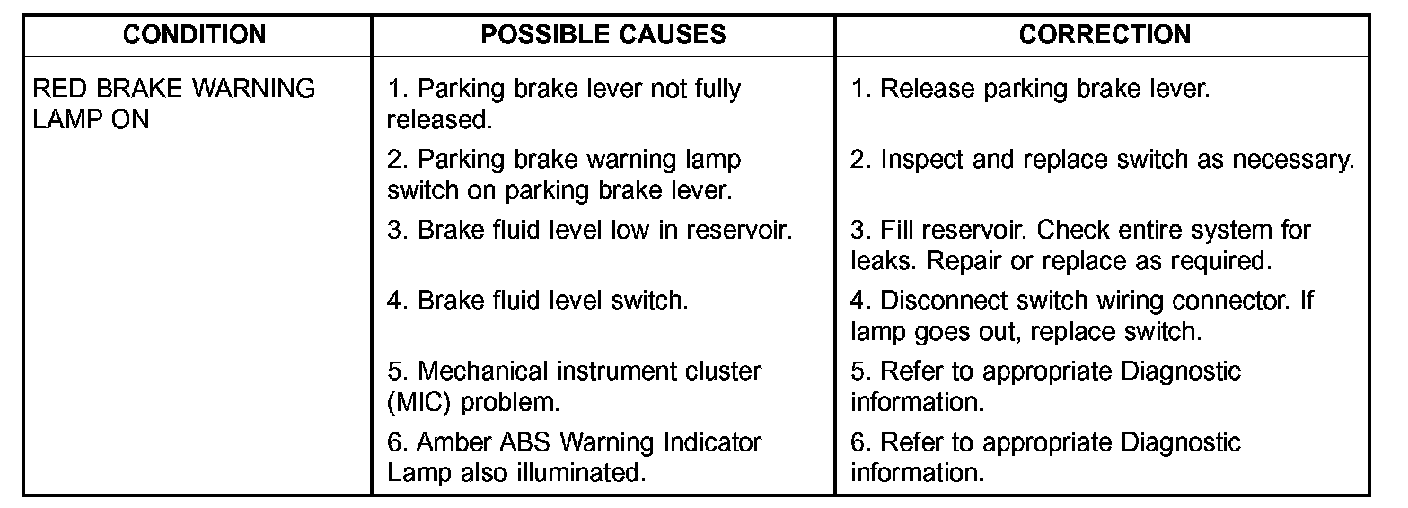

RED BRAKE WARNING INDICATOR LAMP

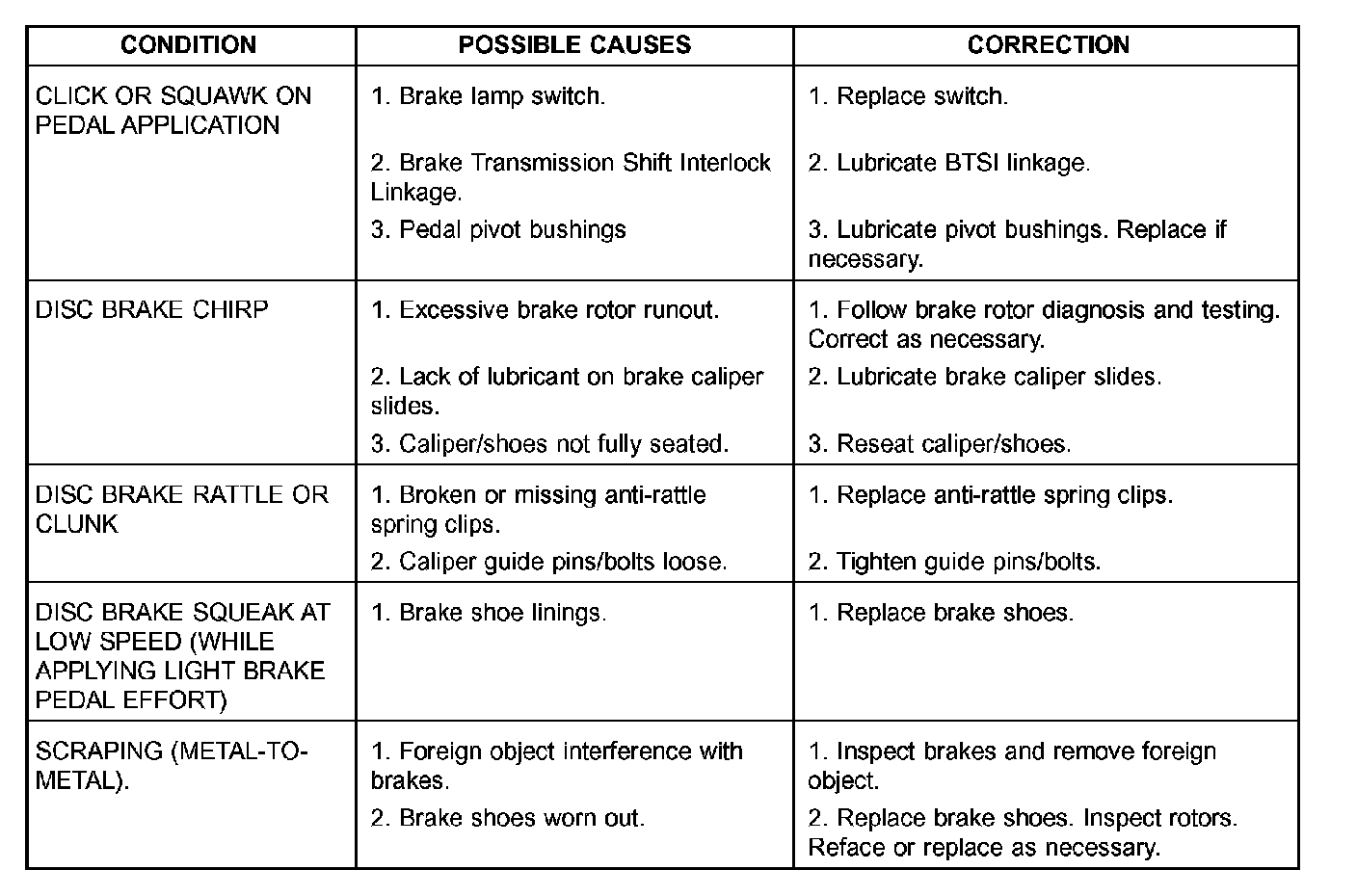

BRAKE NOISE

PART 1 OF 2:

PART 2 OF 2:

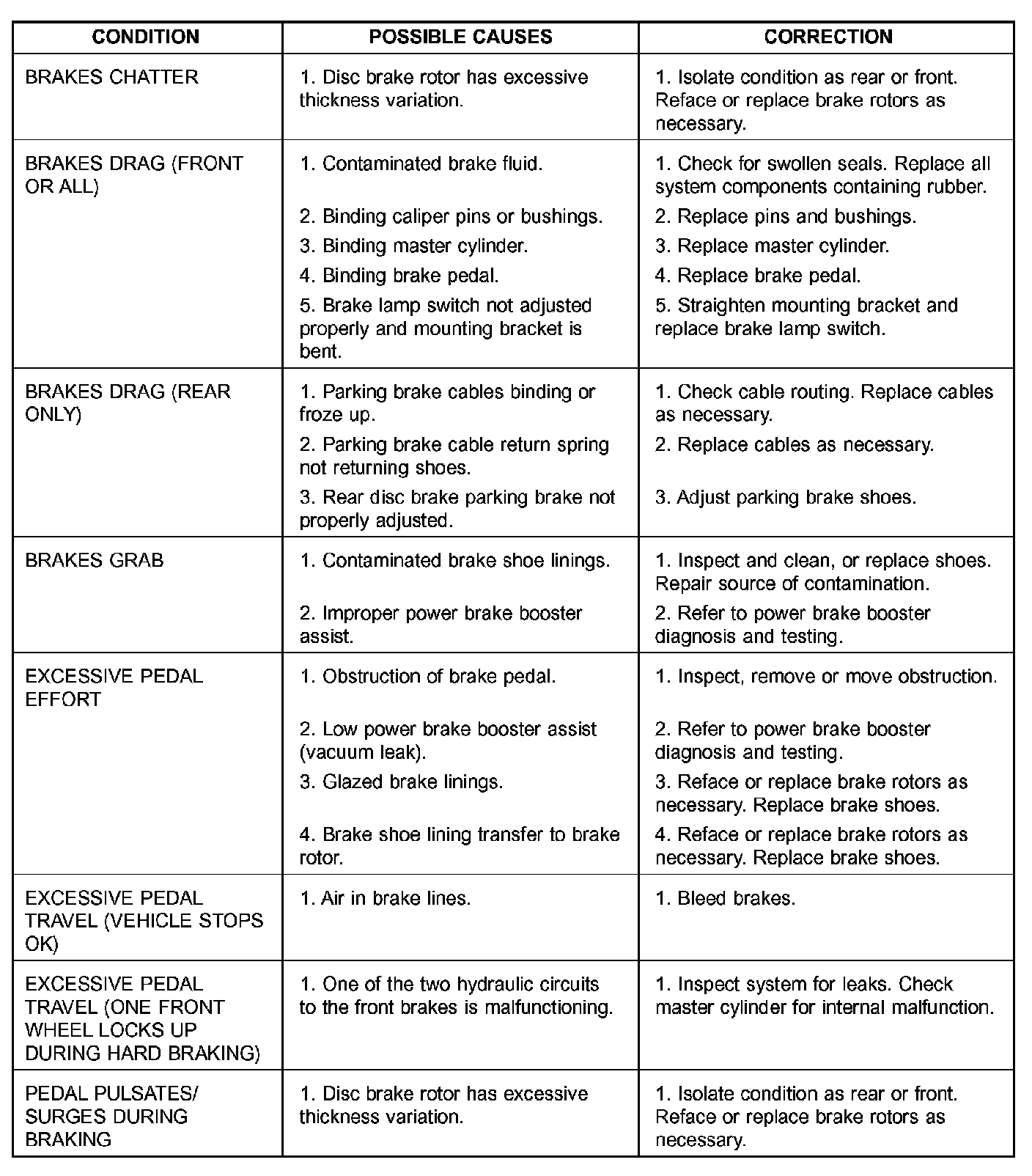

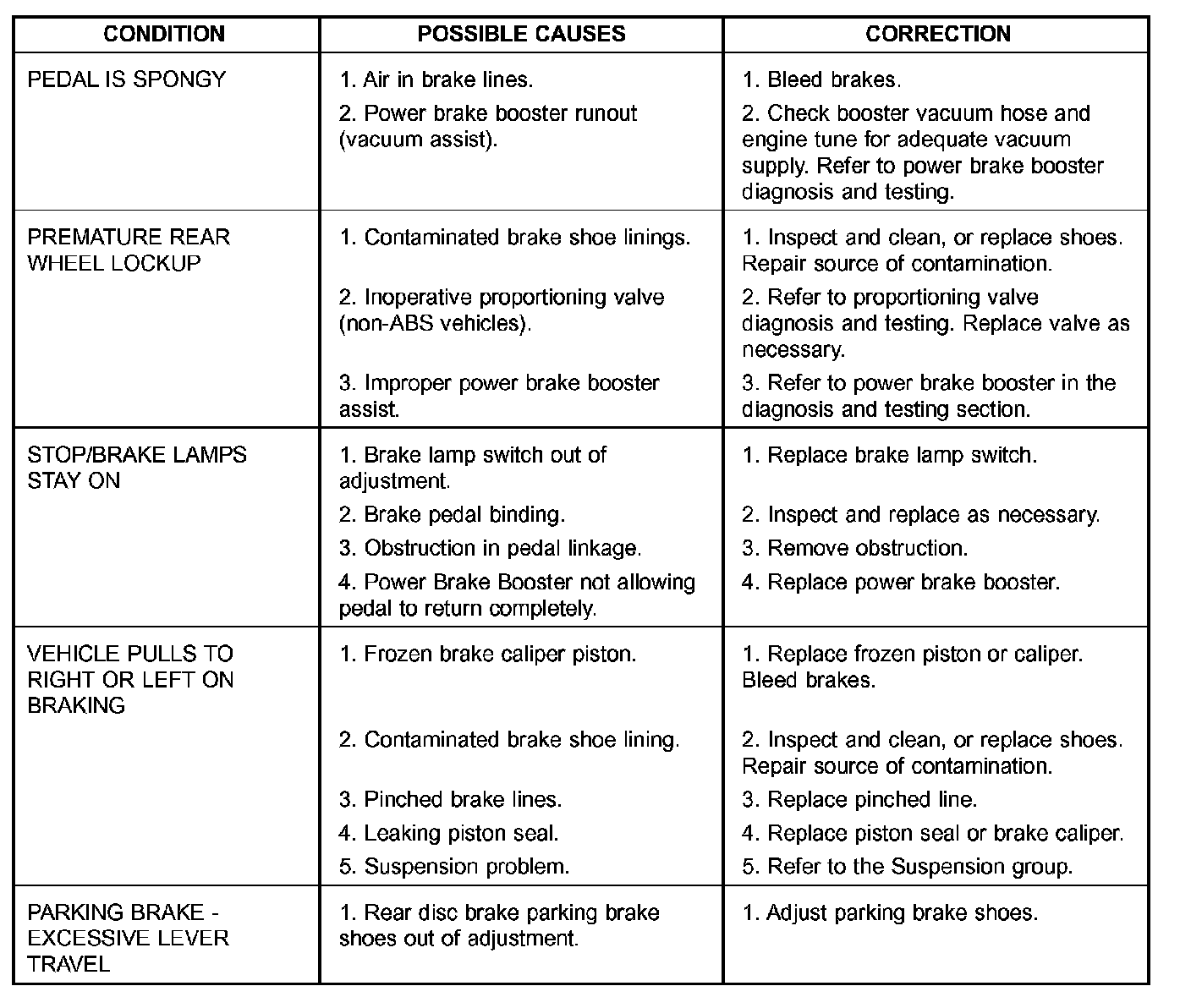

OTHER BRAKE CONDITIONS
