Door Module

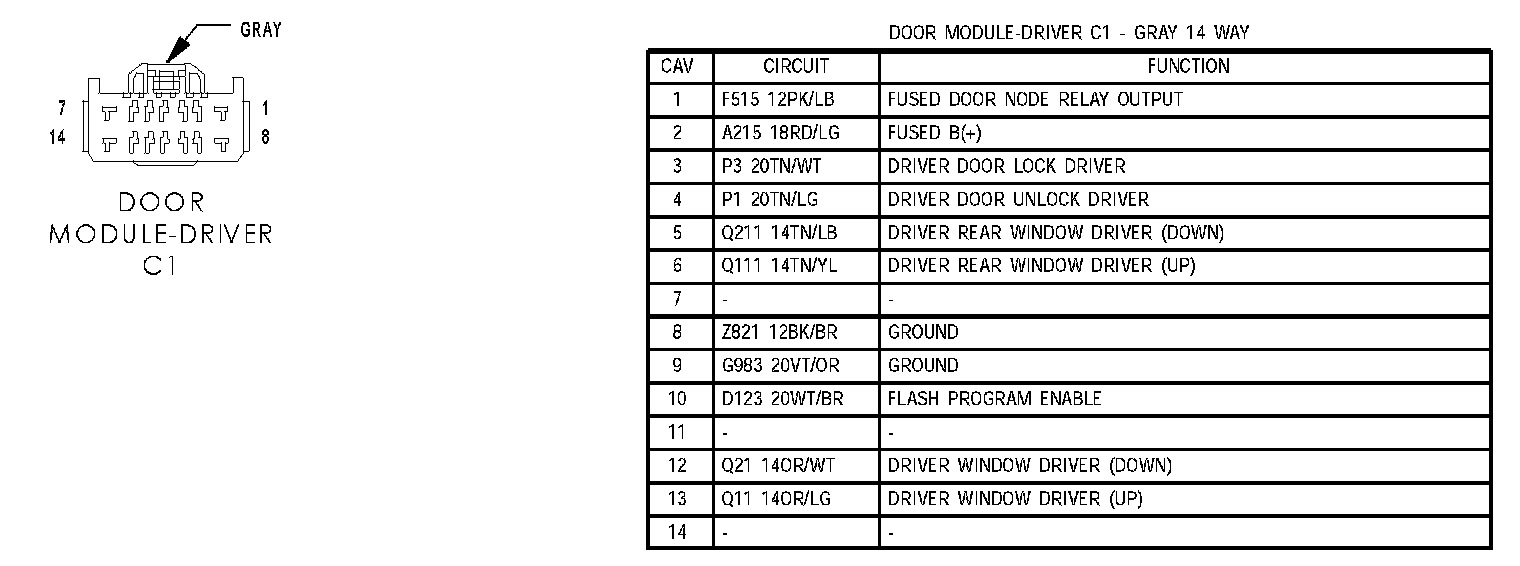

Door Module Driver C1:

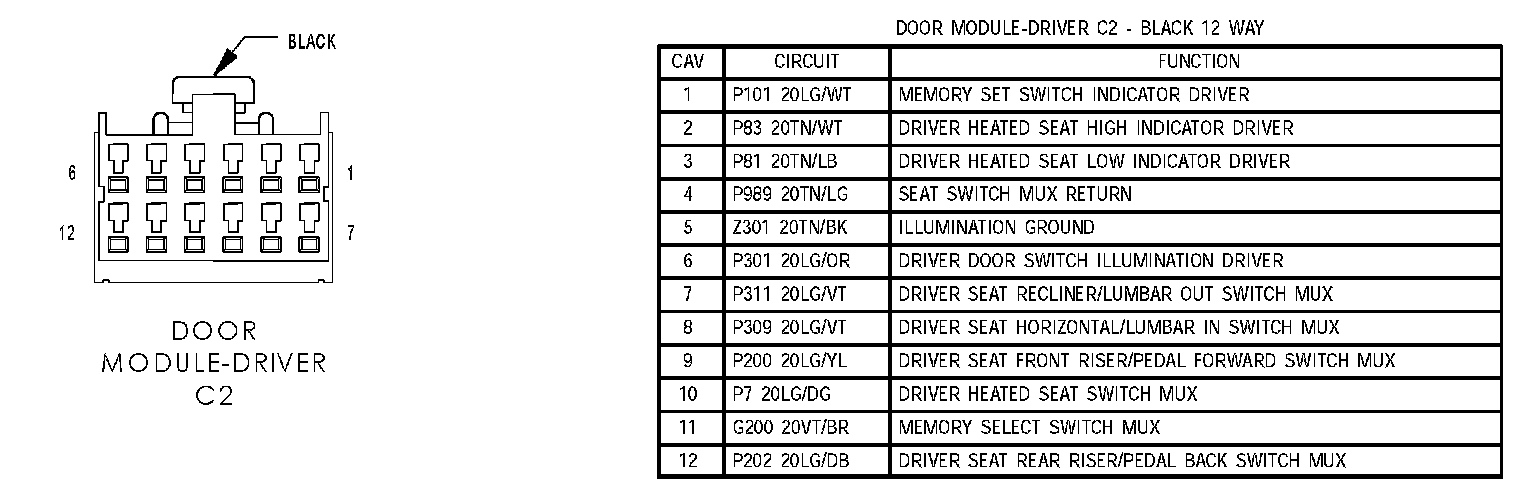

Door Module Driver C2:

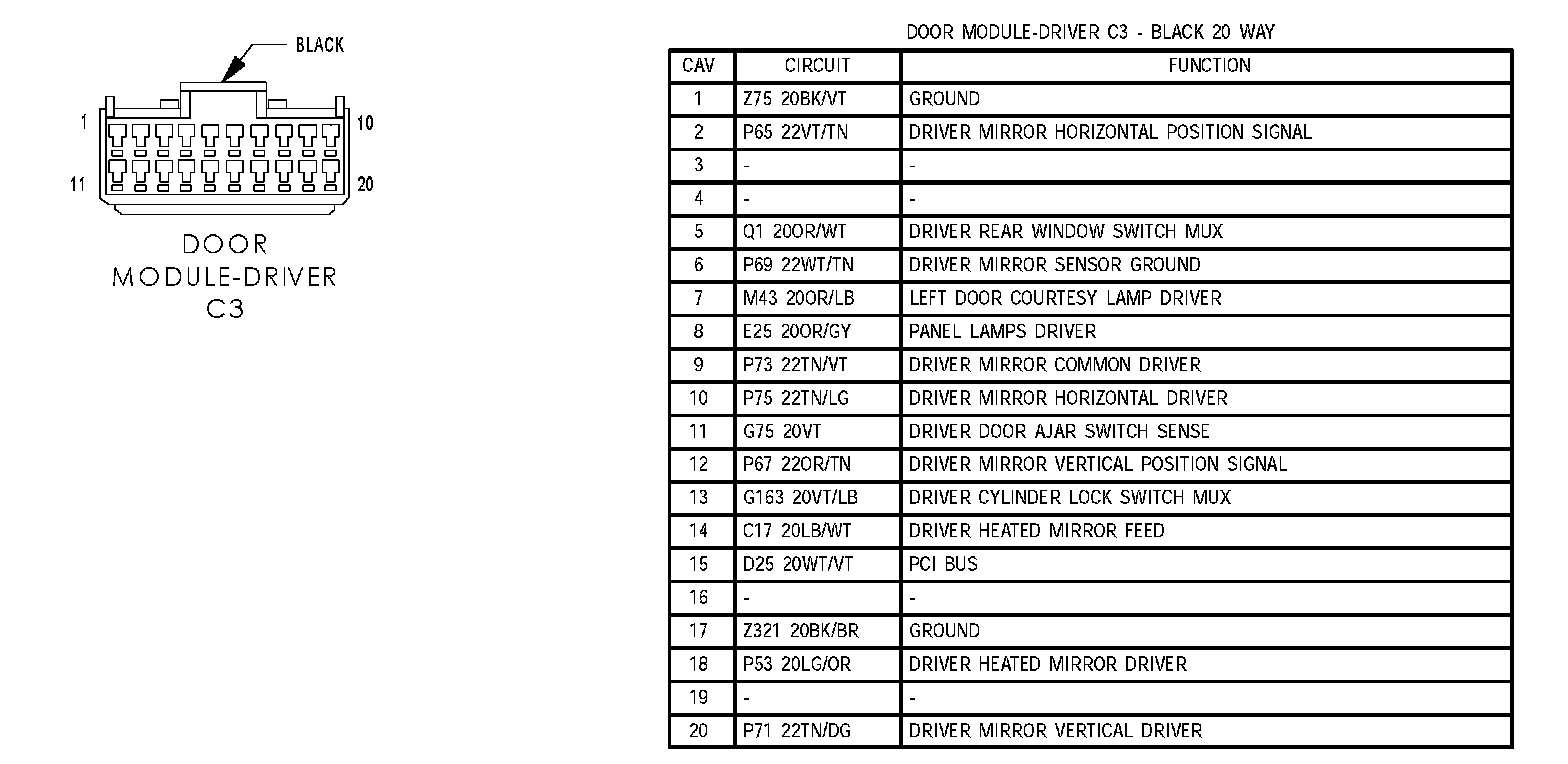

Door Module Driver C3:

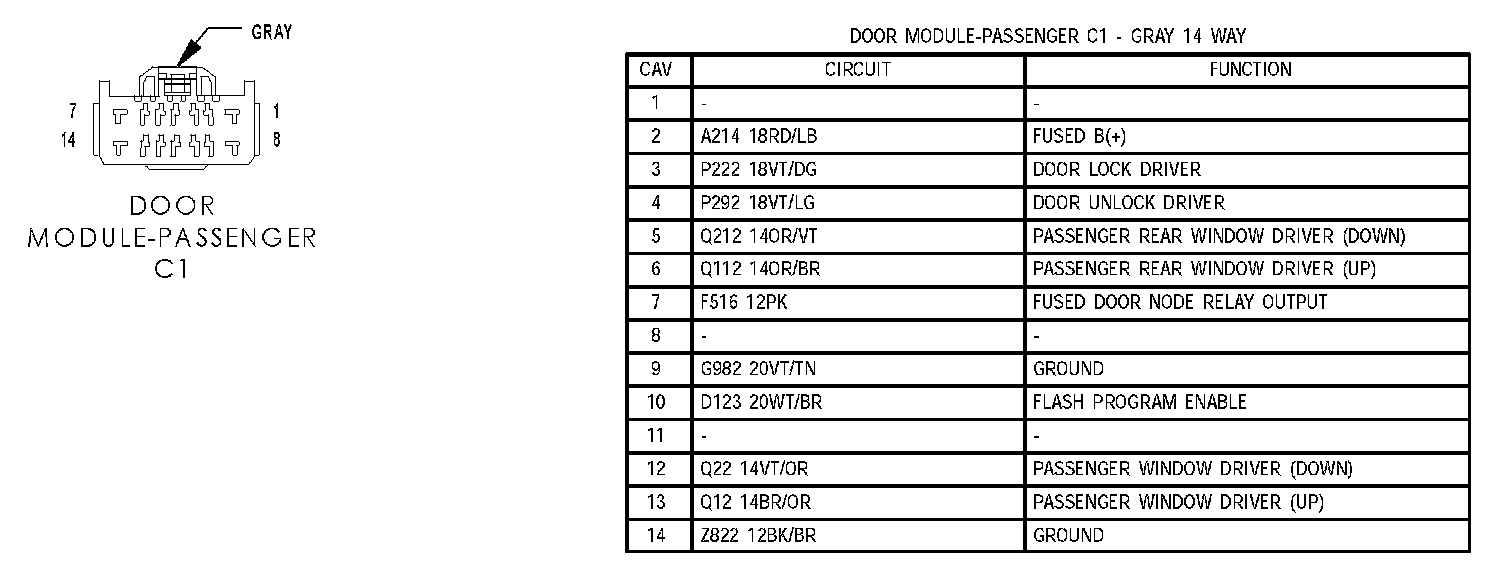

Door Module-Passenger C1:

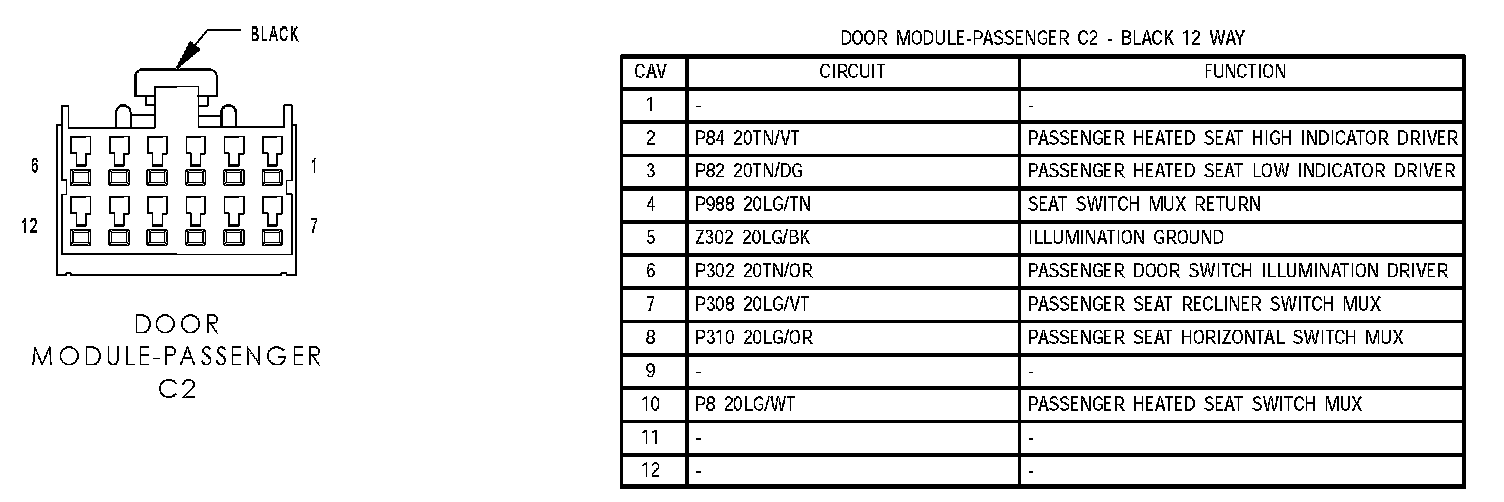

Door Module-Passenger C2:

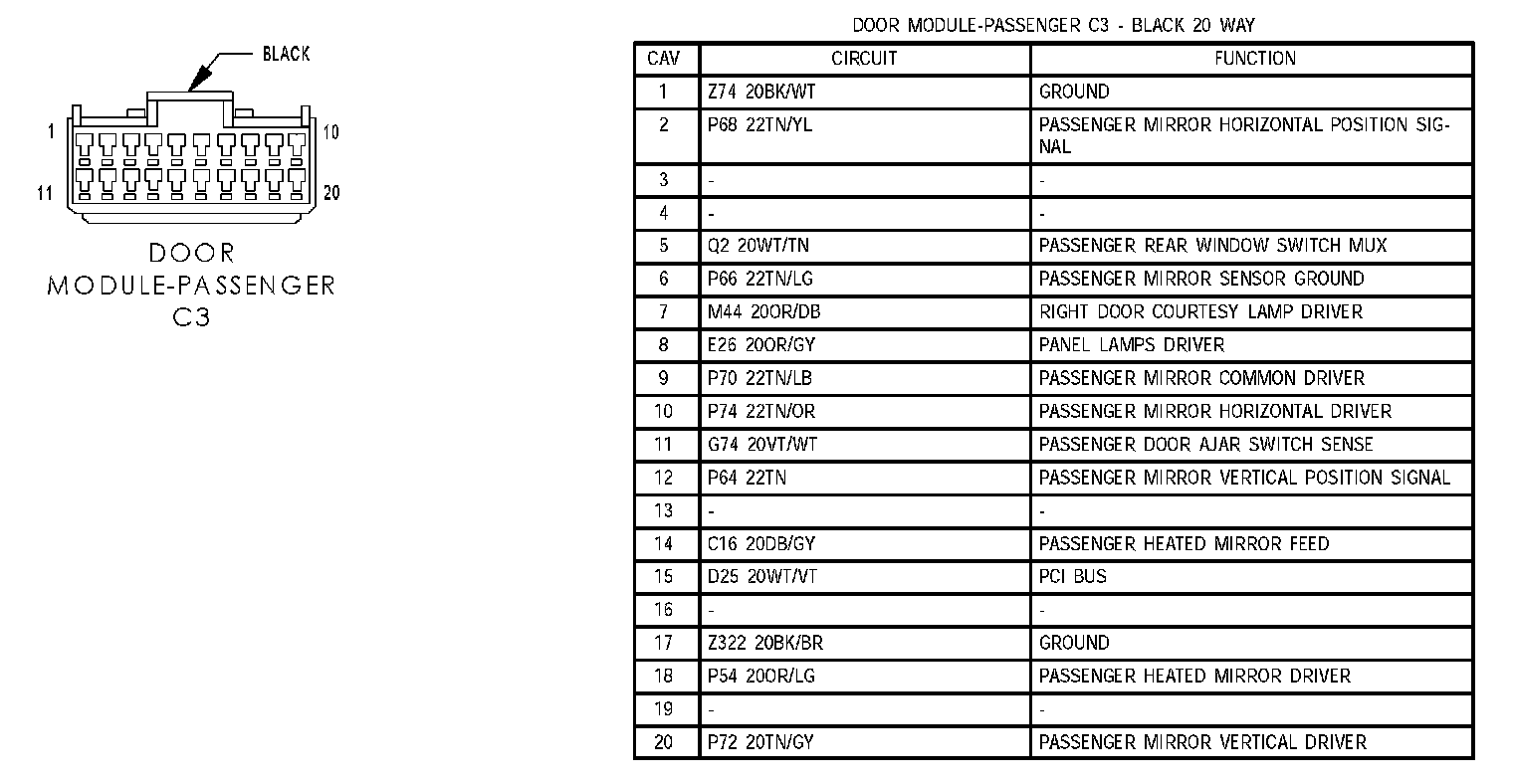

Door Module-Passenger C3:
