Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2004
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Assembly, HVAC
Control Assembly, HVAC

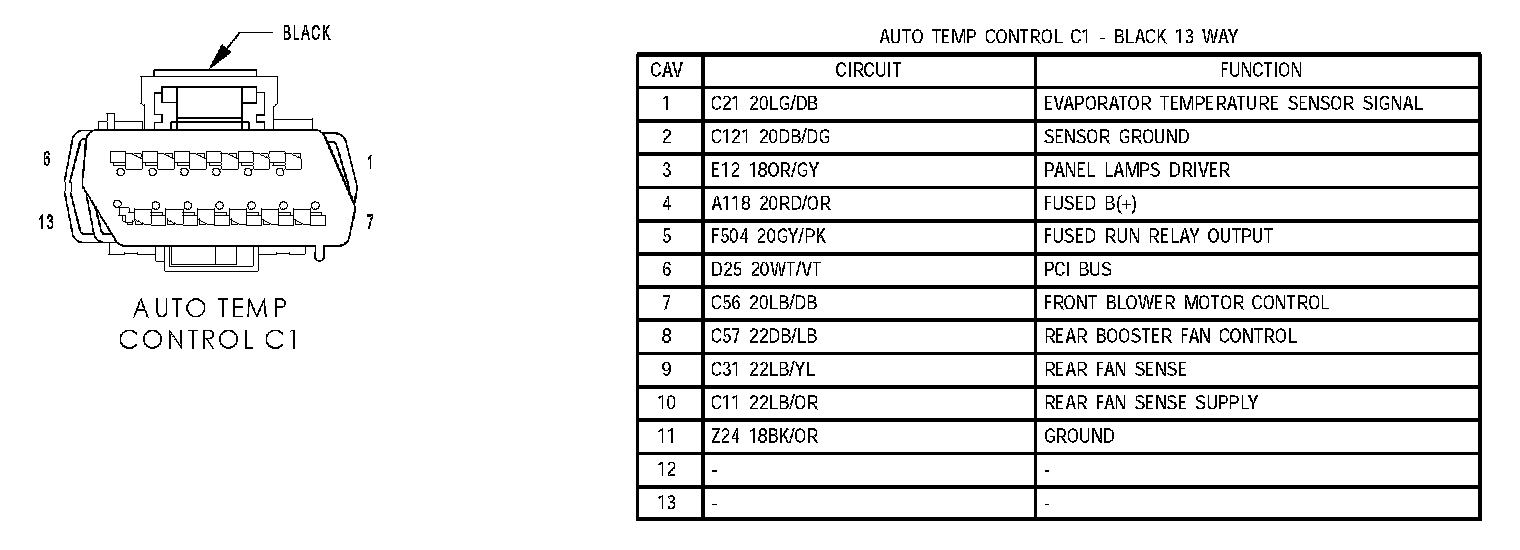

Auto Temp Control C1:
Auto Temp Control C2:
