System Diagram

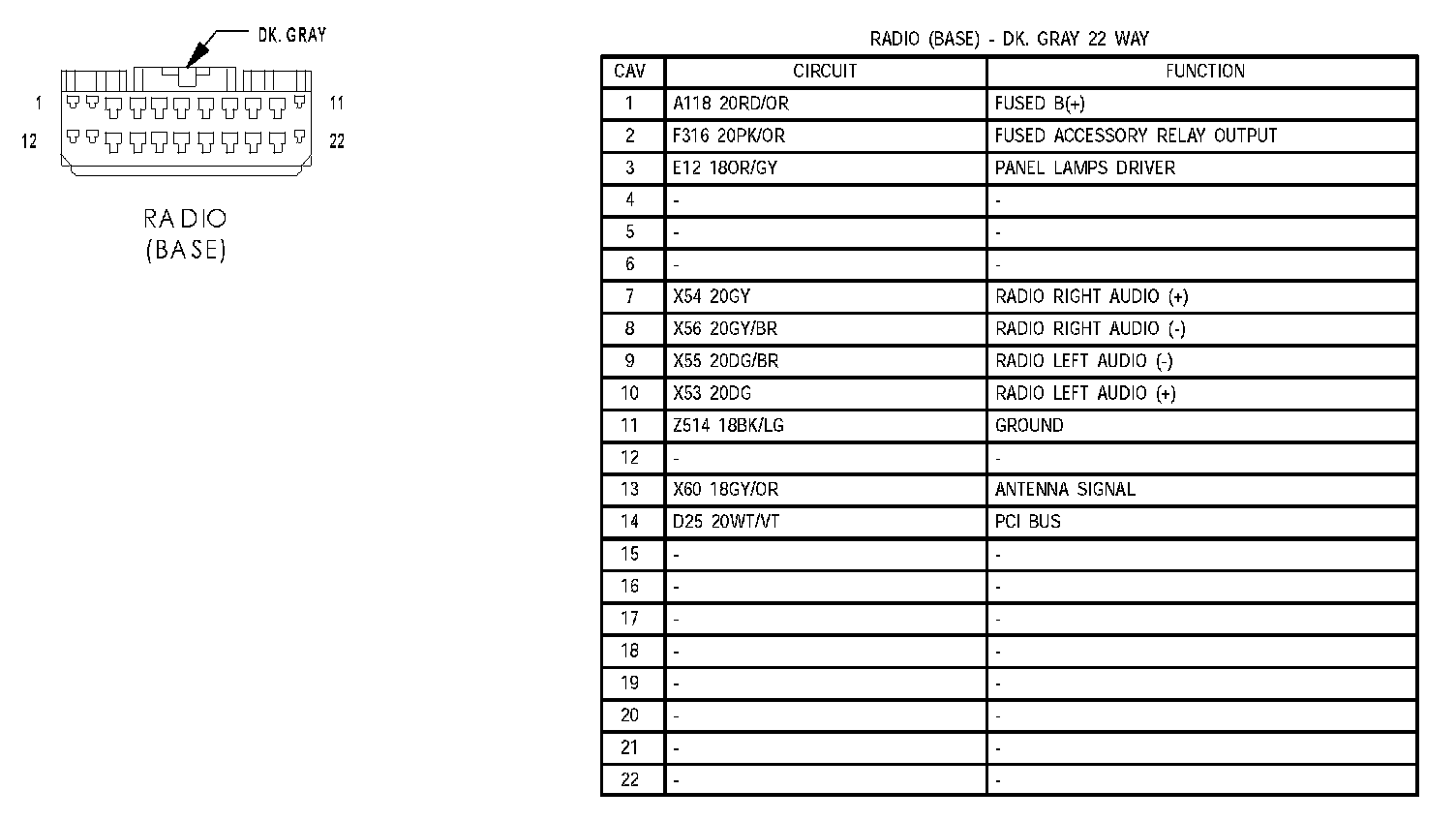

Radio (Base):

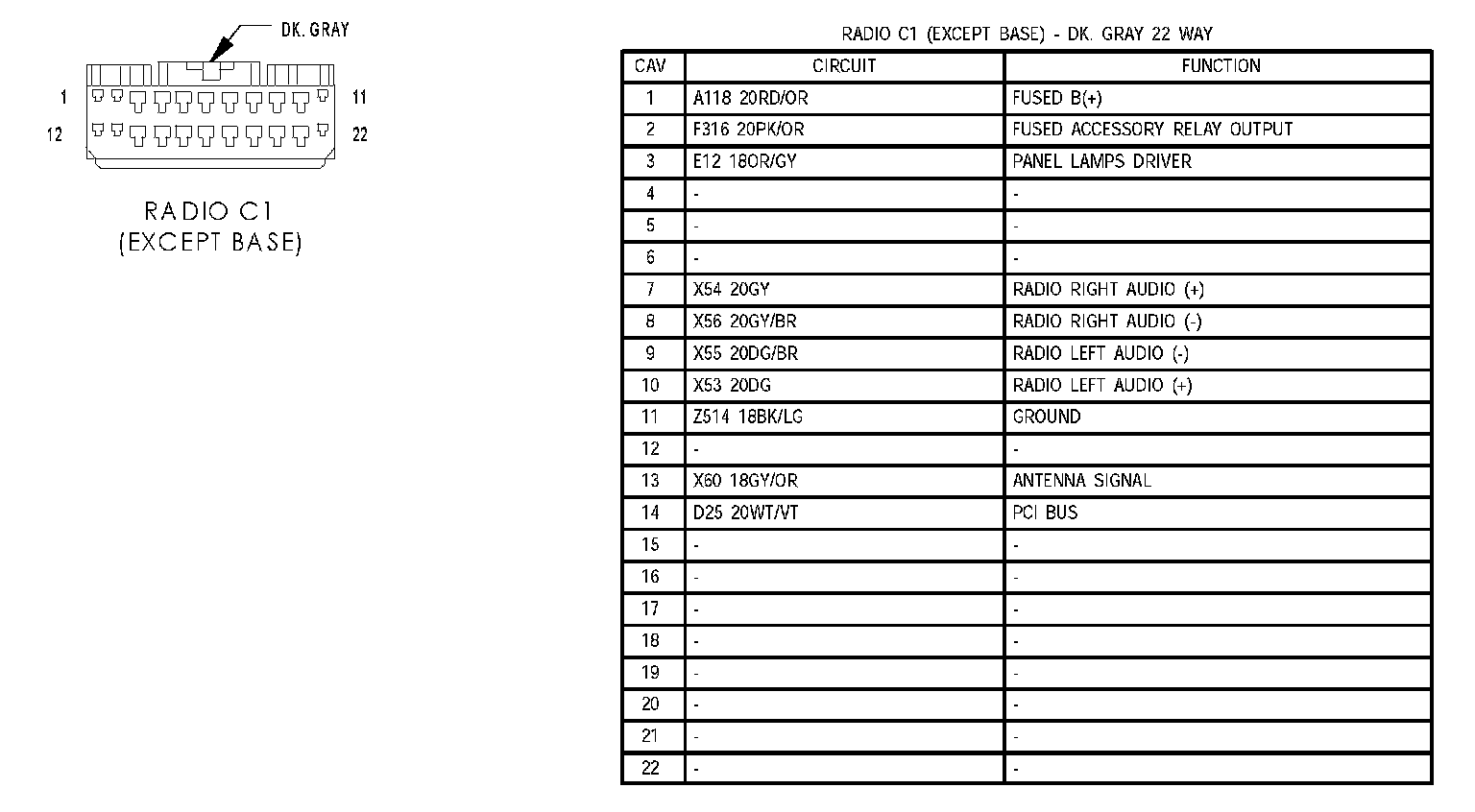

Radio C1 (Except Base):

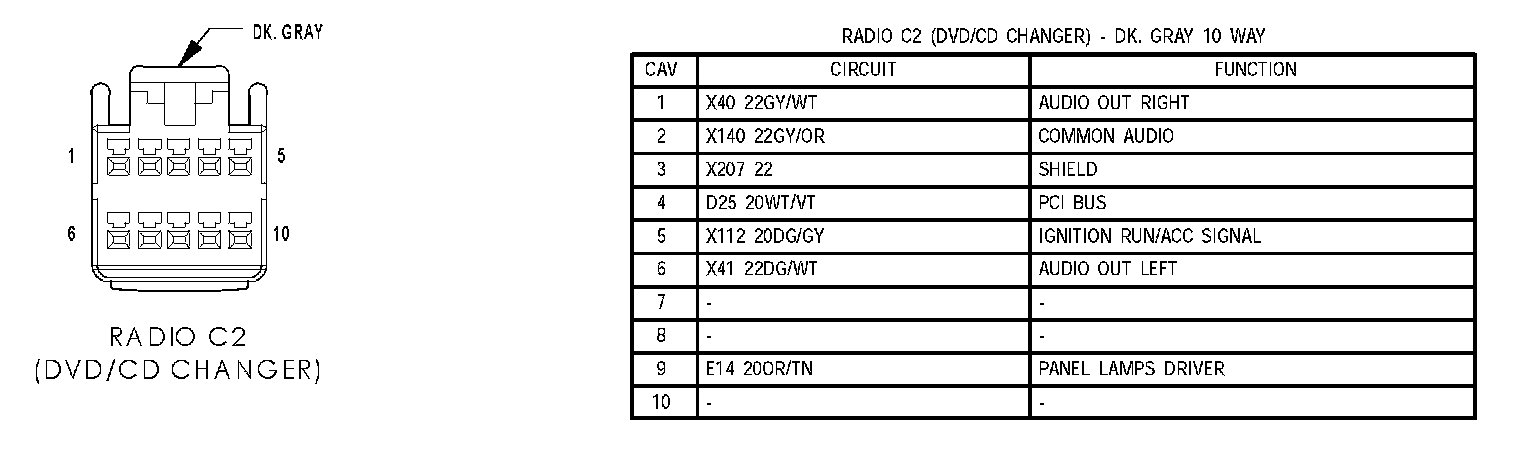

Radio C2 (CVD/CD Changer):

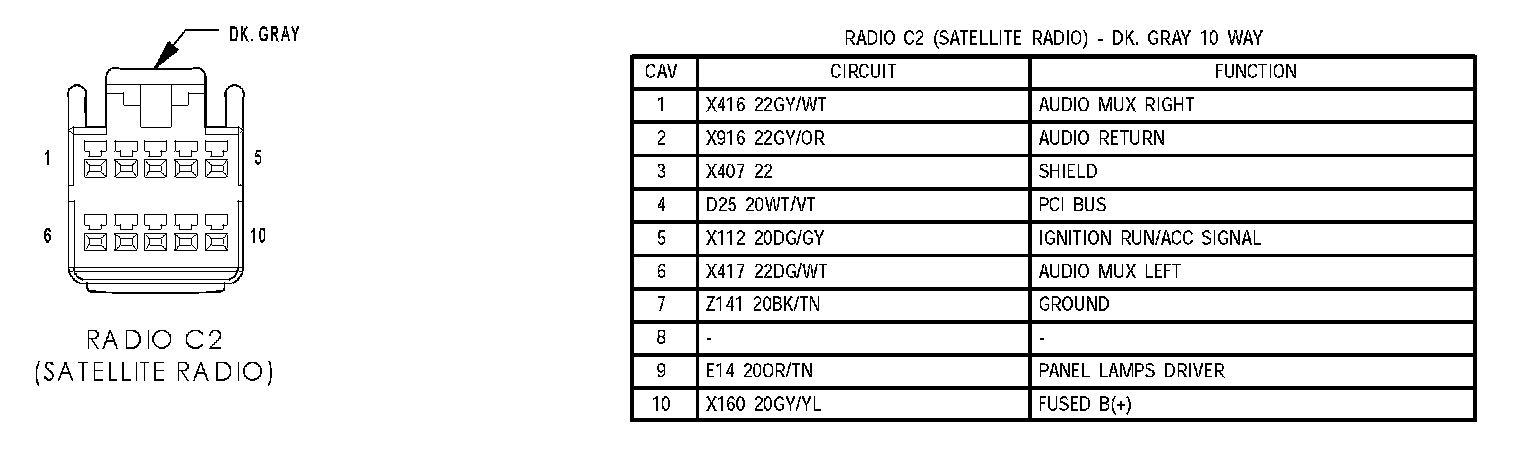

Radio C2 (satellite Radio):
