Diagrams
>>
Connector Views
>>
Variable Induction Control Solenoid
Variable Induction Control Solenoid

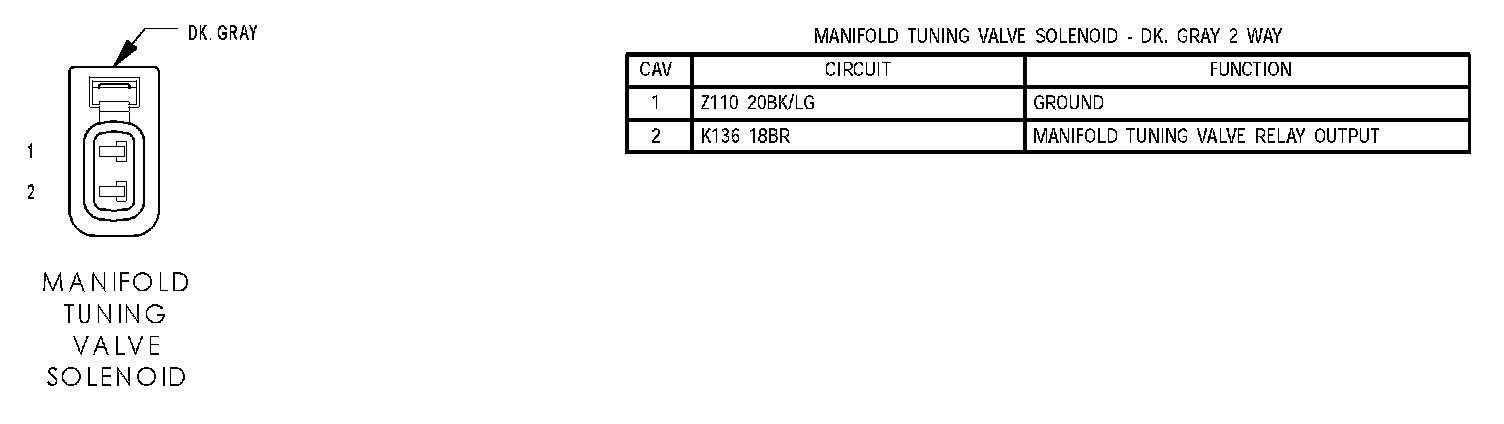

Manifold Tuning Valve Solenoid:

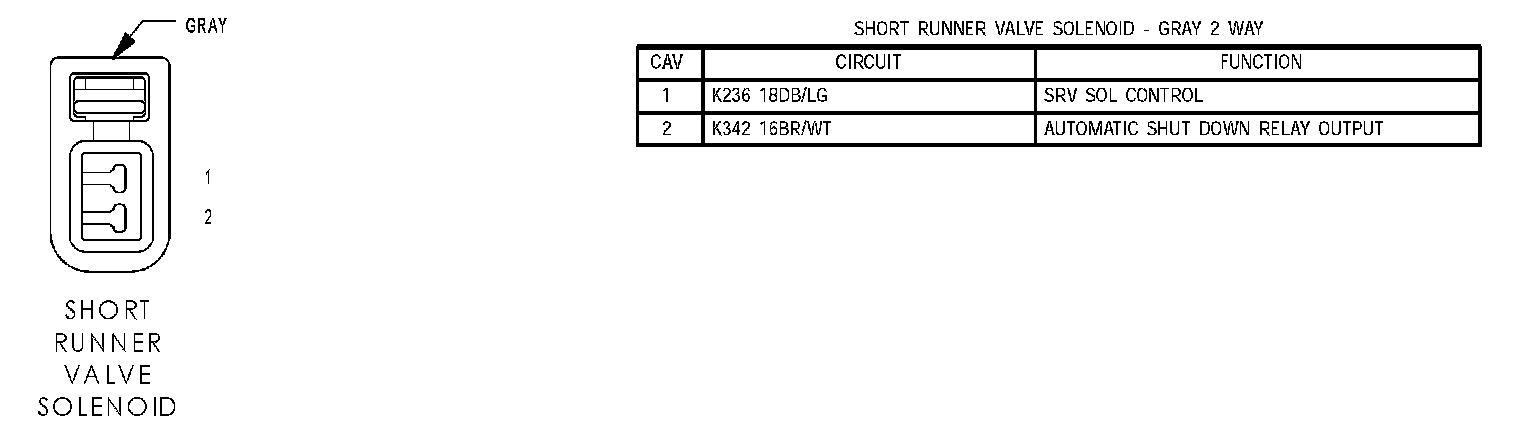

Short Runner Valve Solenoid:
