Wheel Speed Sensor

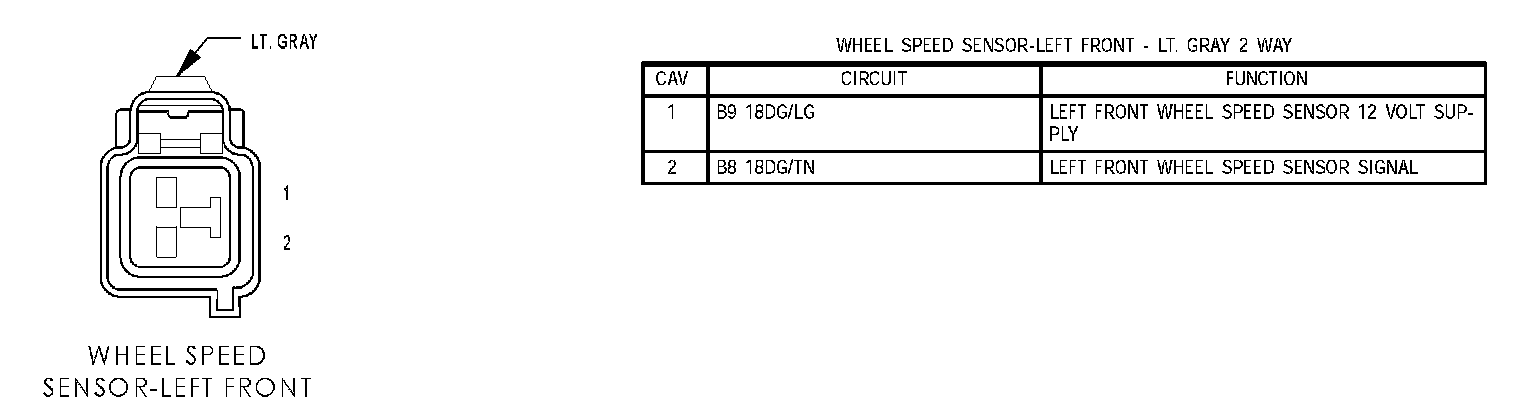

Wheel Speed Sensor Left Front:

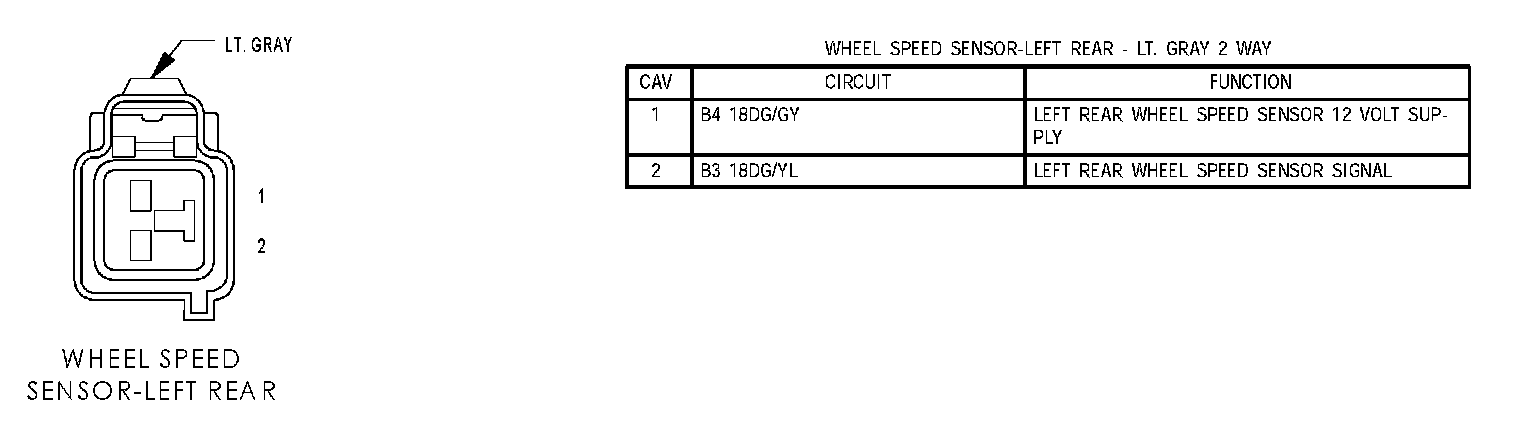

Wheel Speed Sensor Left Rear:

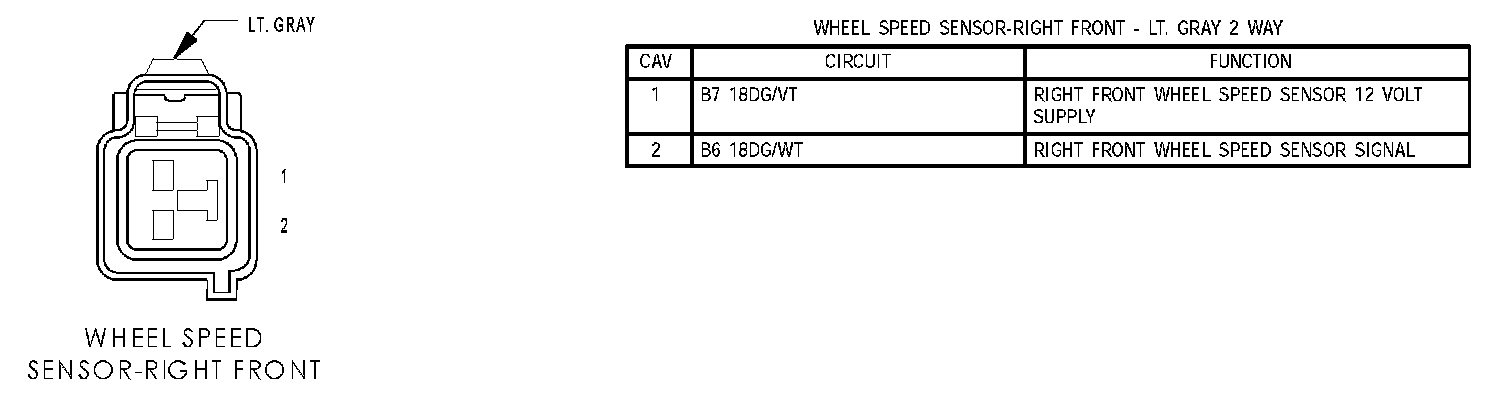

Wheel Speed Sensor Right Front:






Wheel Speed Sensor Right Rear:
