Heating and Air Conditioning: Specifications

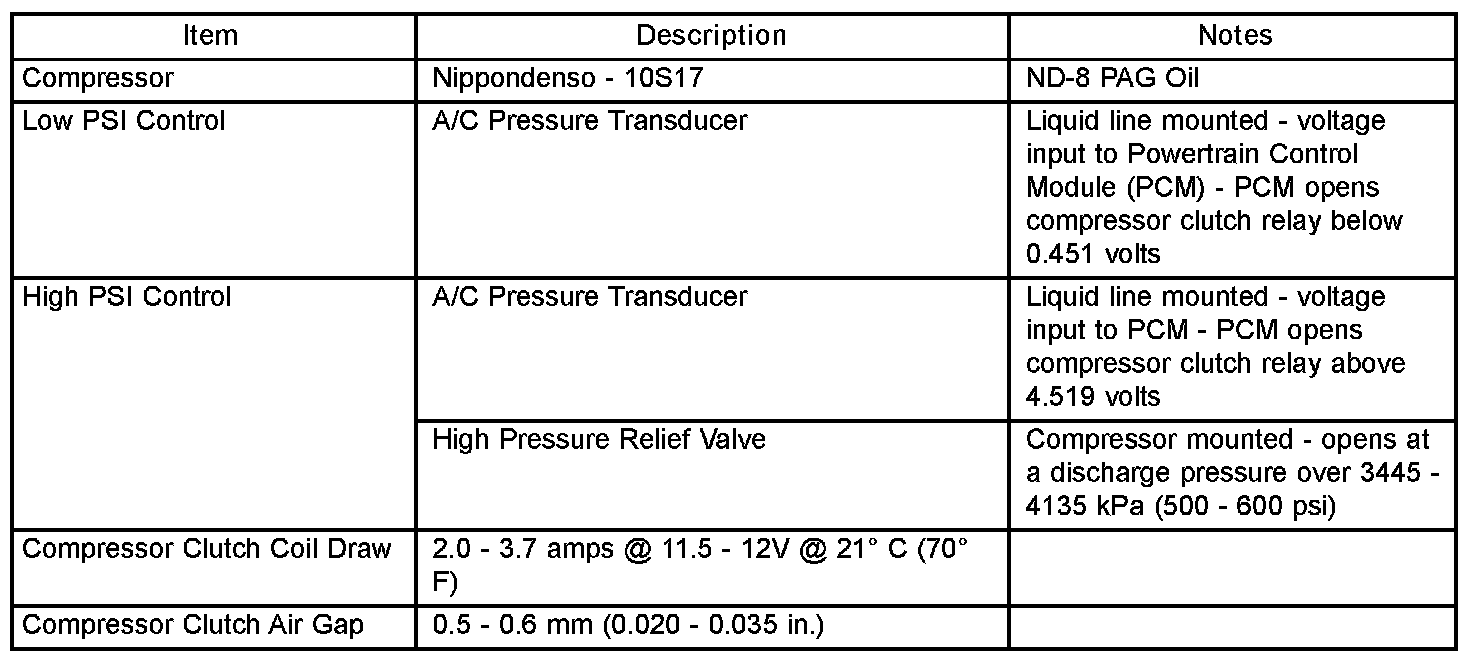

Heater - A/C System Specification Chart Part 1:

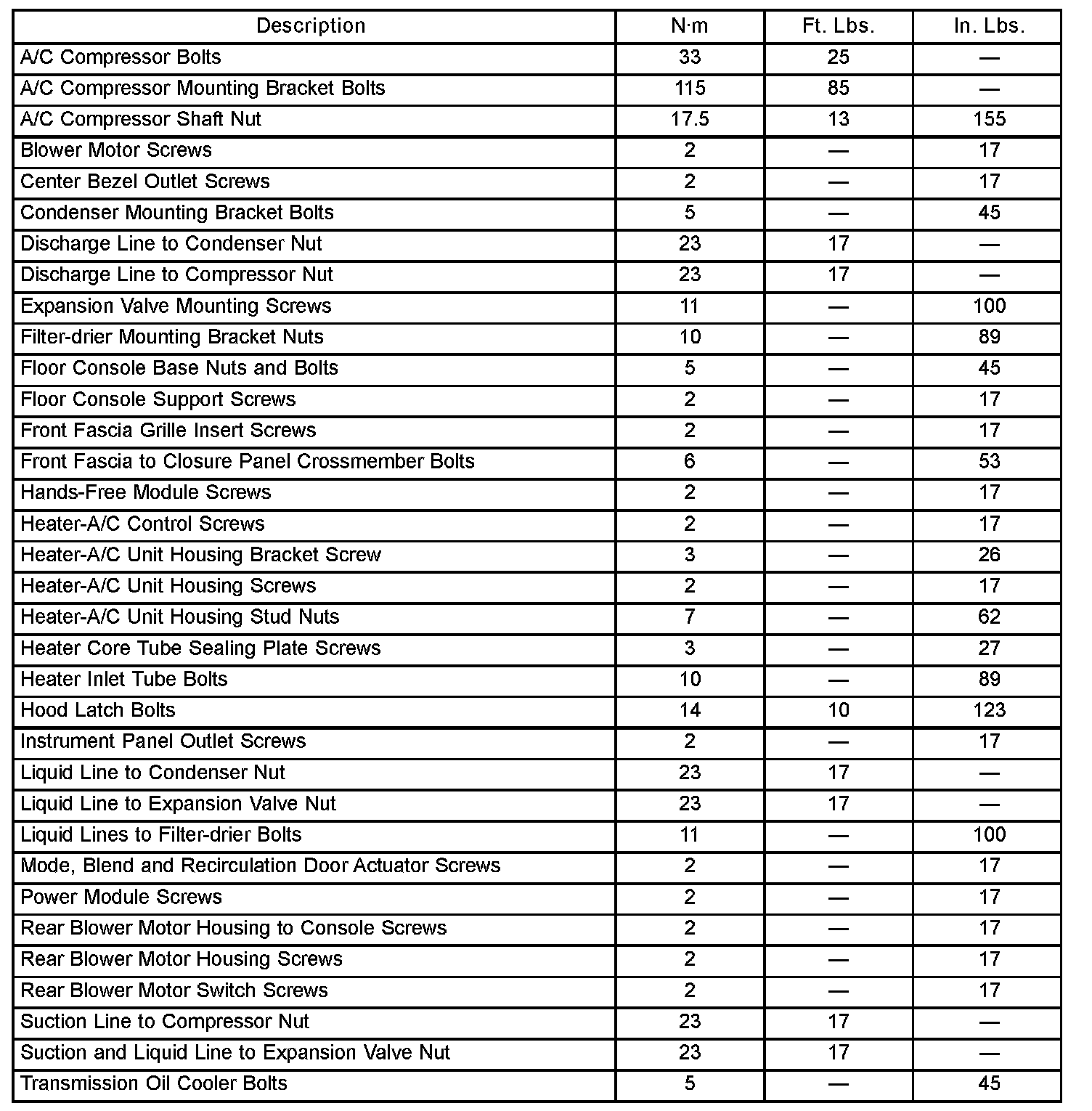

Torque Specifications Part 2:

HEATER-A/C SYSTEM
The R-134a refrigerant system charge capacity for this vehicle can be found on the underhood specification label for the A/C unit.
