Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

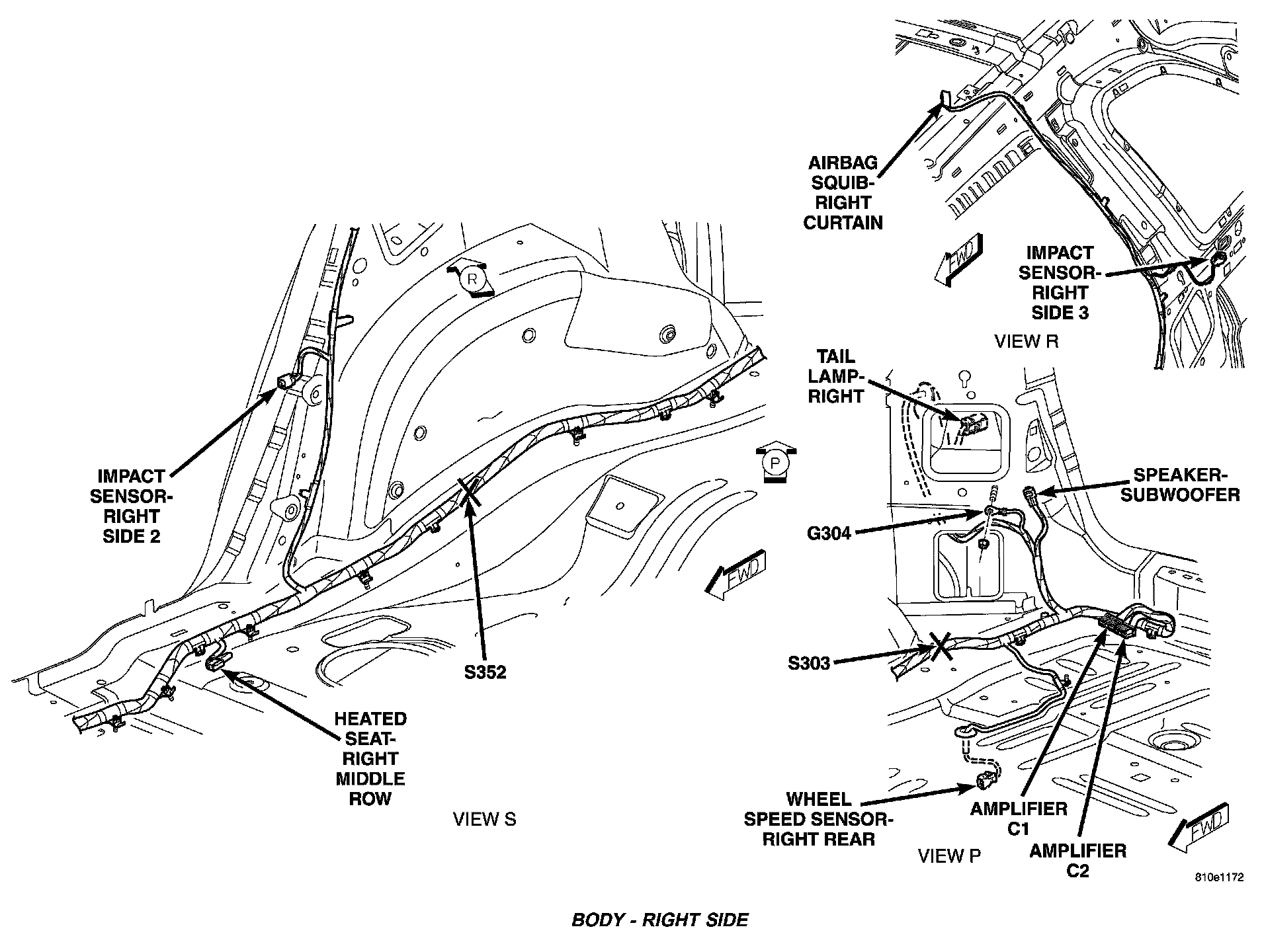

Figure 31
Figure 31
Body - Right Side:
