Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 28
Figure 28

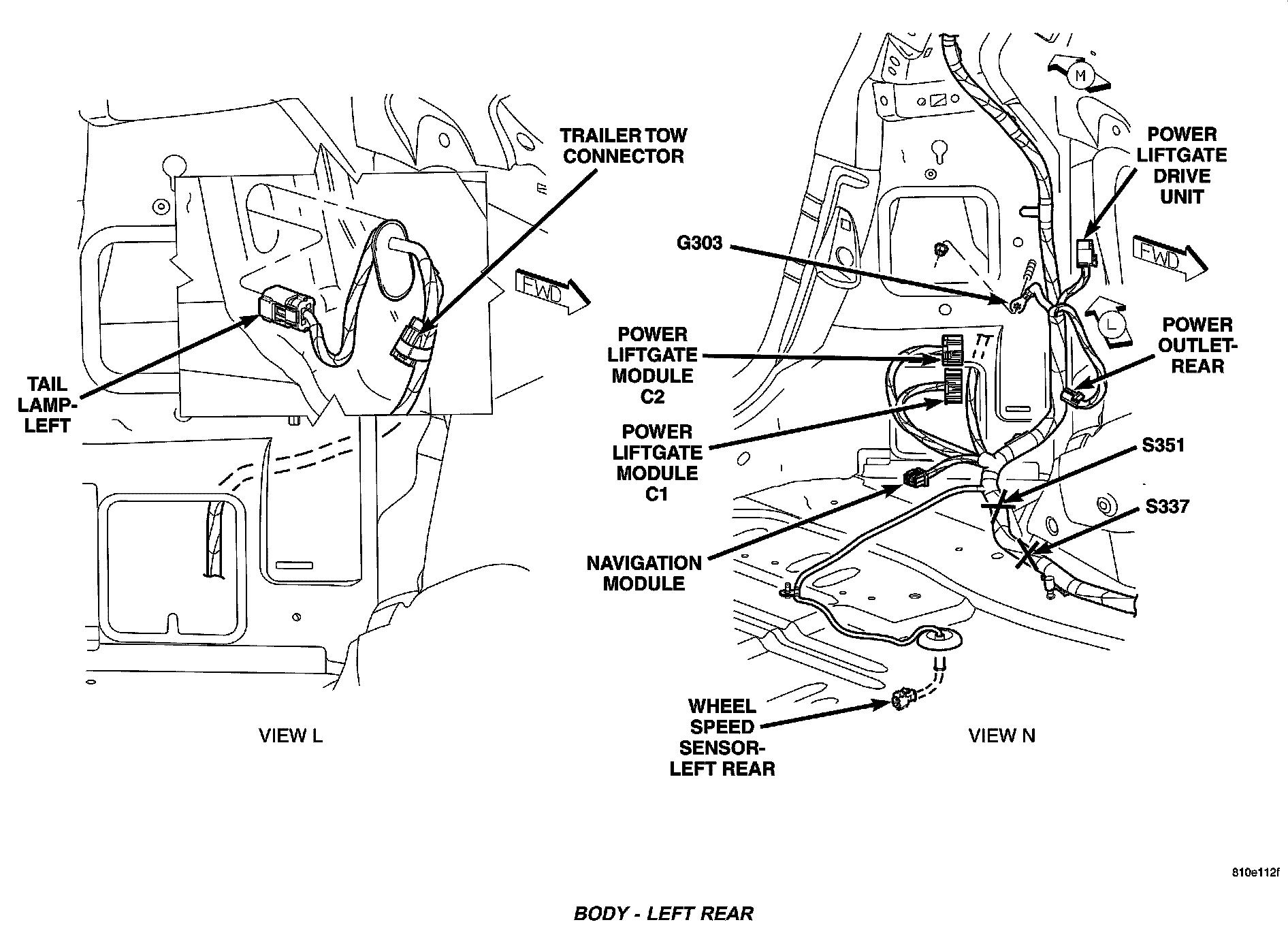

Body - Left Rear:

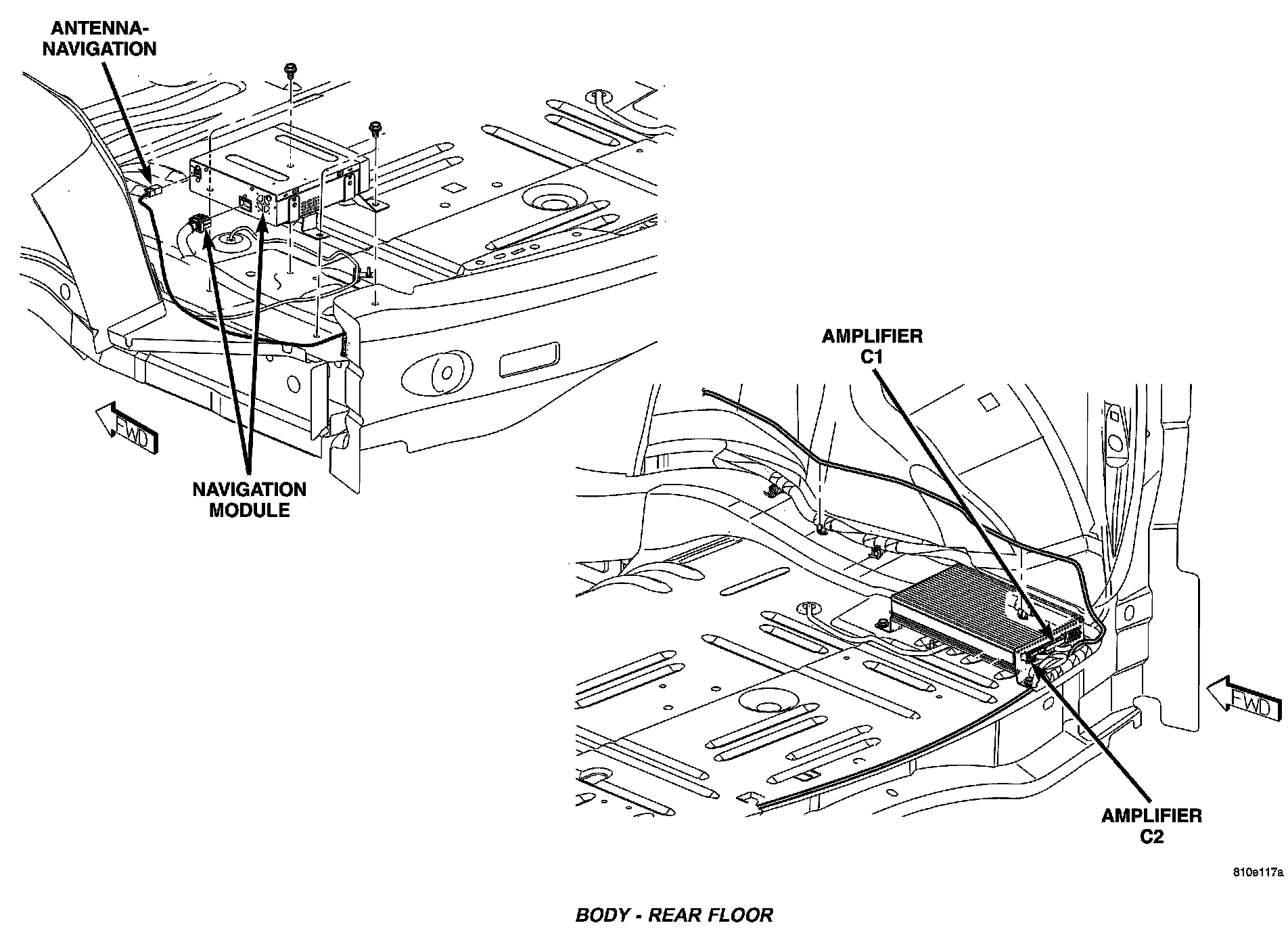

Body Rear Floor:
