INOP No Fault Codes - SDARS

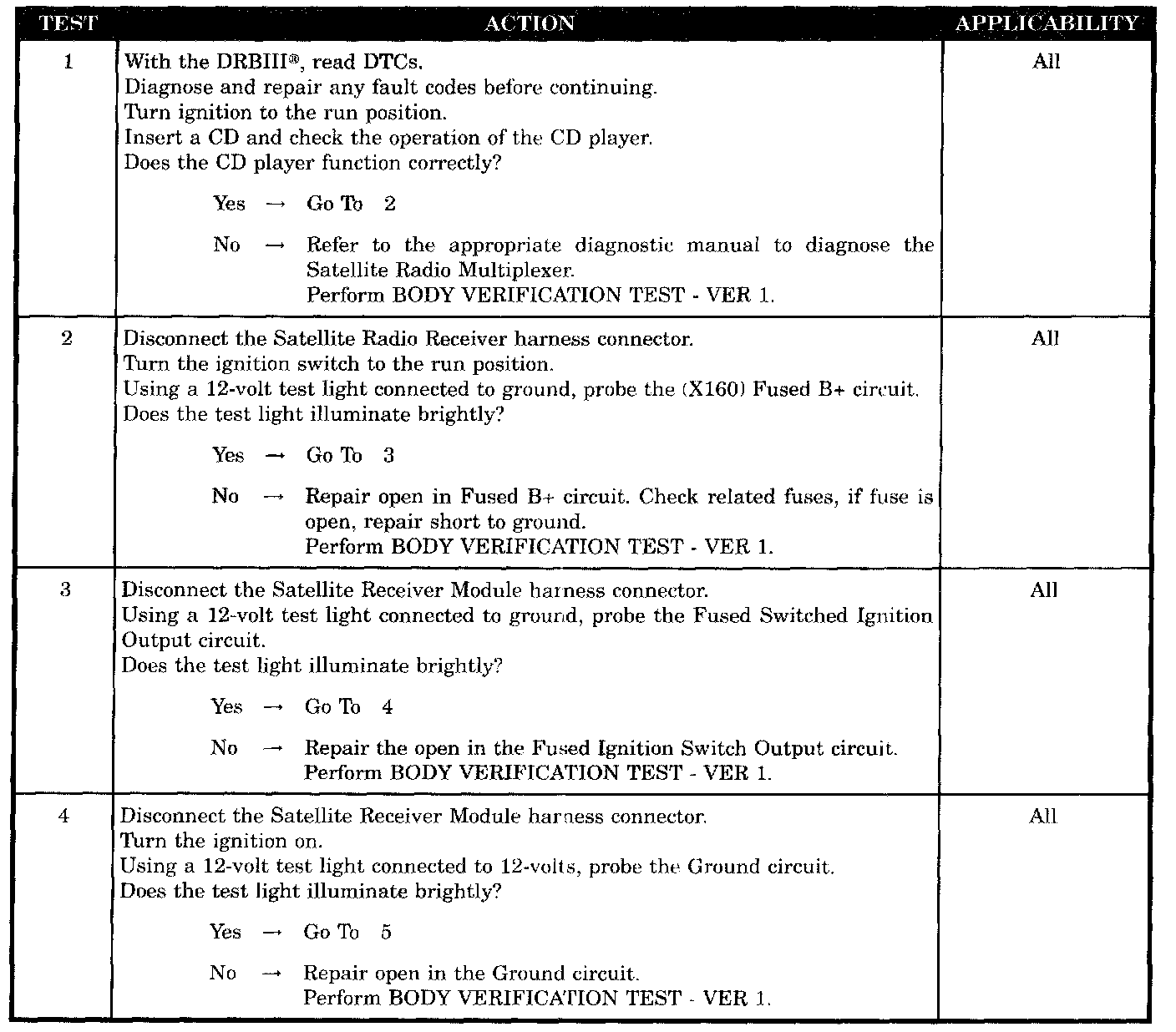

Test 1 - 4:

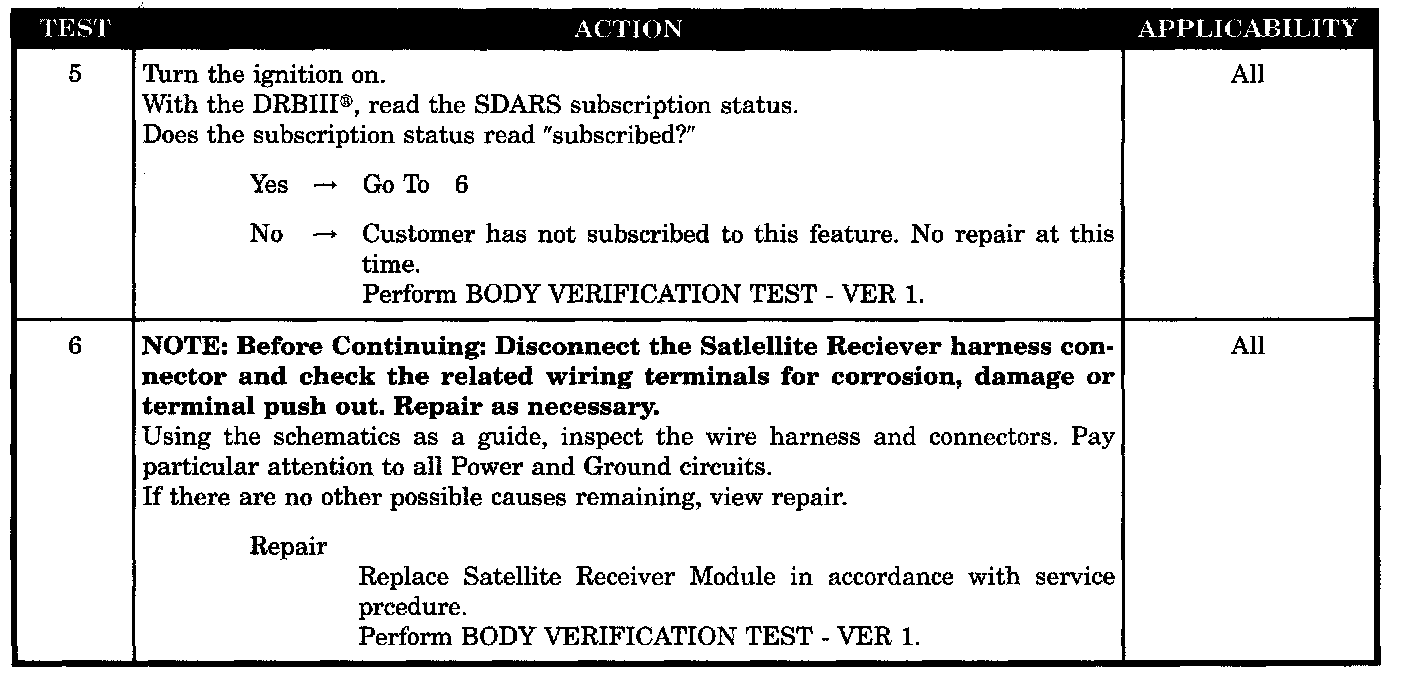

Test 5 - 6:

SYMPTOM
INOP NO FAULT CODES - SDARS

POSSIBLE CAUSES
- SDARS receiver INOP- CD changer
- Fused B+ circuit - SDARS
- Fused switch ignition output - SDARS
- Ground circuit open - SDARS
- SDARS subscription
- Satellite receiver module
