HVAC System Test

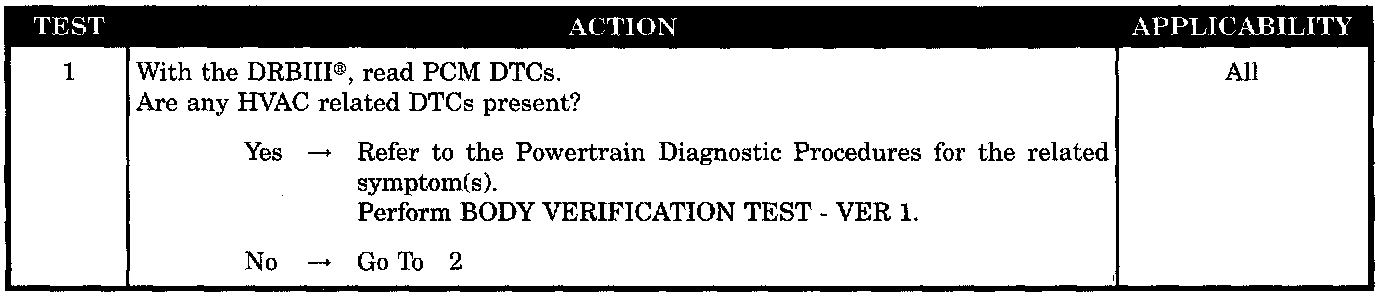

Test 1:

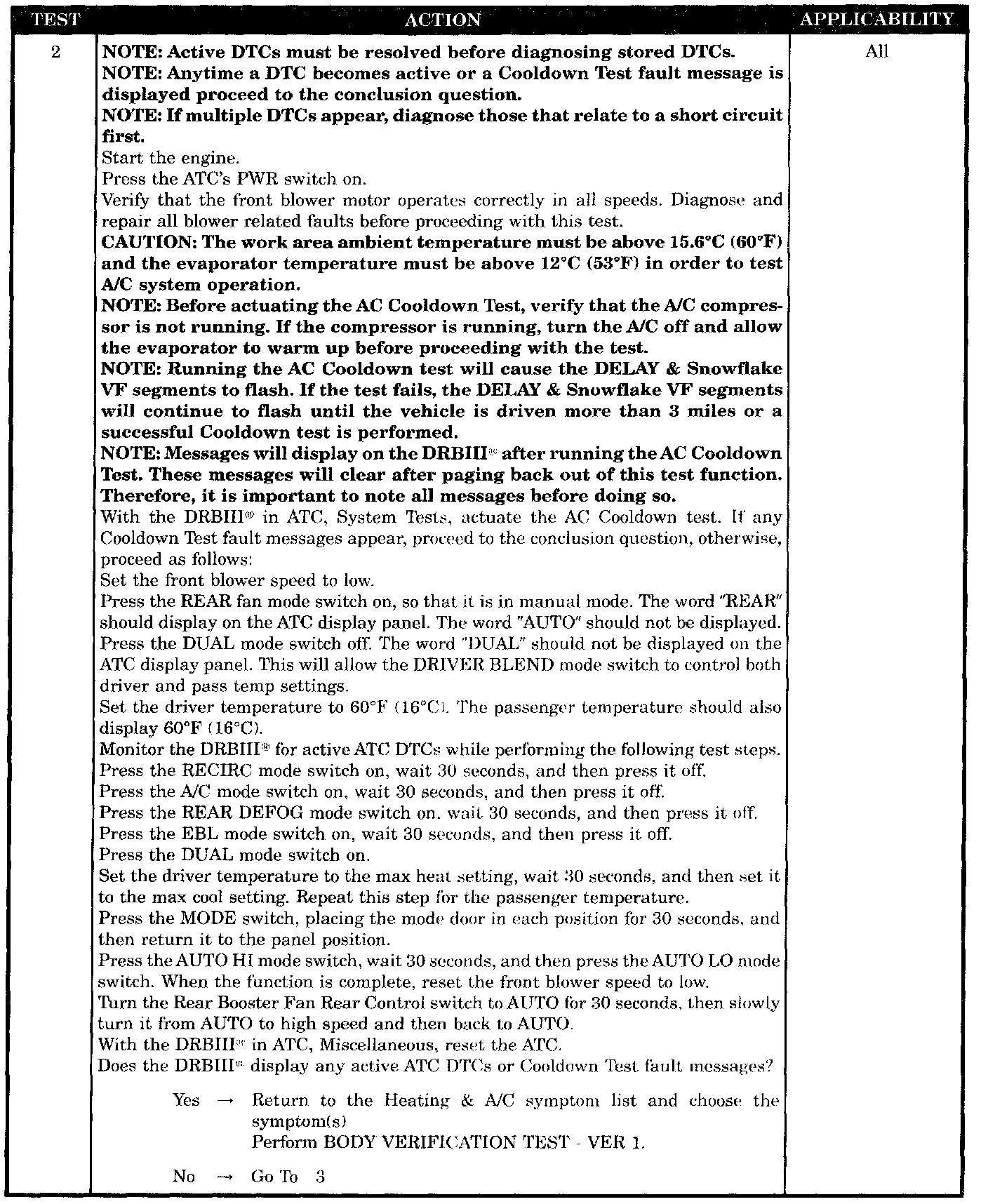

Test 2:

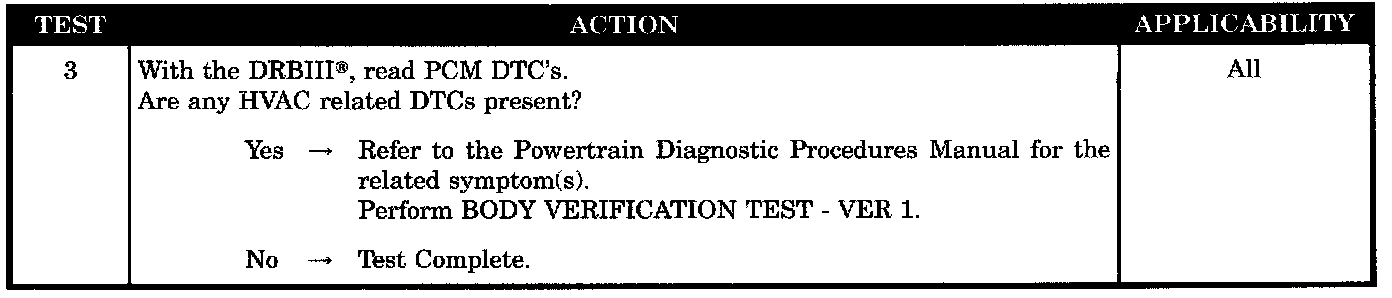

Test 3:

SYMPTOM
HVAC SYSTEM TEST

POSSIBLE CAUSES
- Check for HVAC related DTCs in the powertrain control module (PCM)
- Check for active ATC DTCs and cooldown test fault messages
- Check for HVAC related DTCs in the powertrain control module (PCM)
