EGR Valve: Service and Repair

REMOVAL
1. Disconnect the negative and then the positive battery cable.
2. Remove battery.

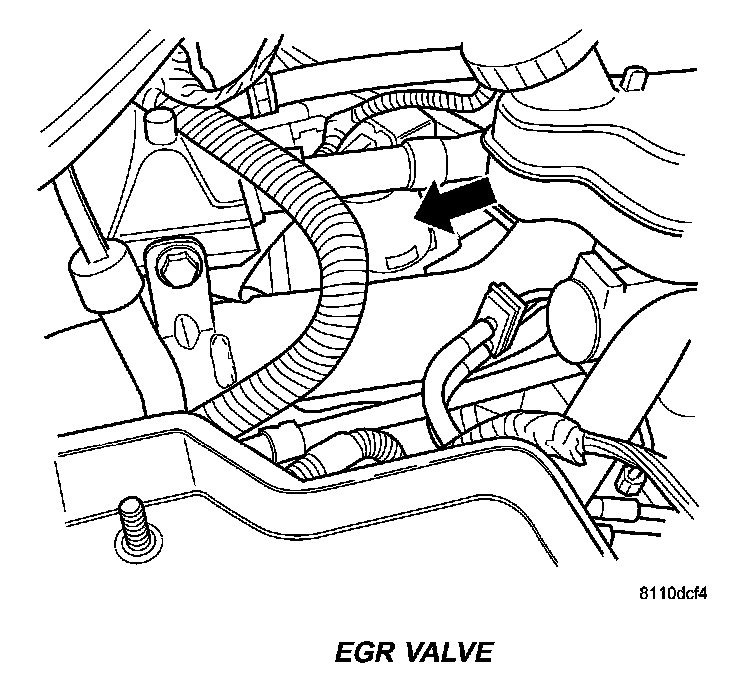

EGR Valve:

3. Unlock and disconnect the electrical connector from the EGR valve.

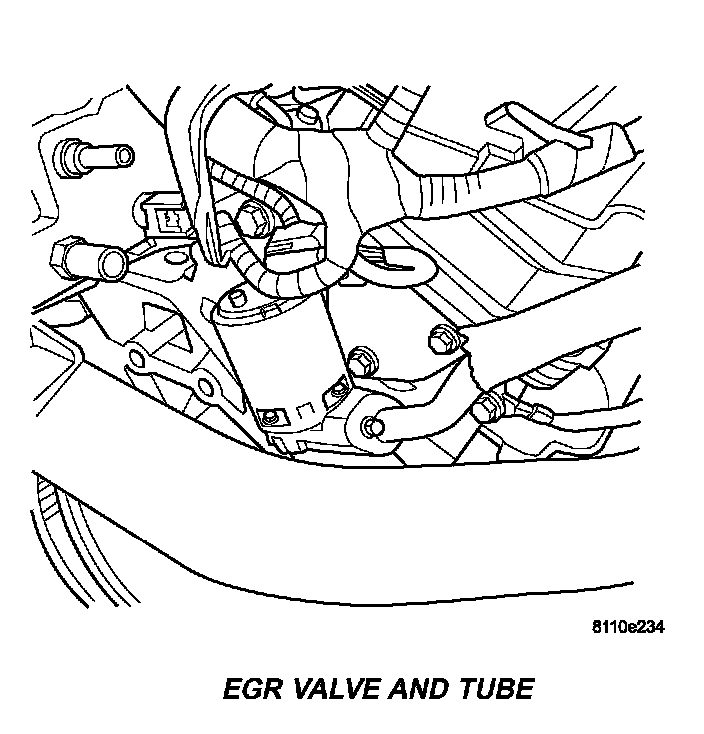

EGR Valve And Tube:

4. Remove the 2 EGR tube bolts.

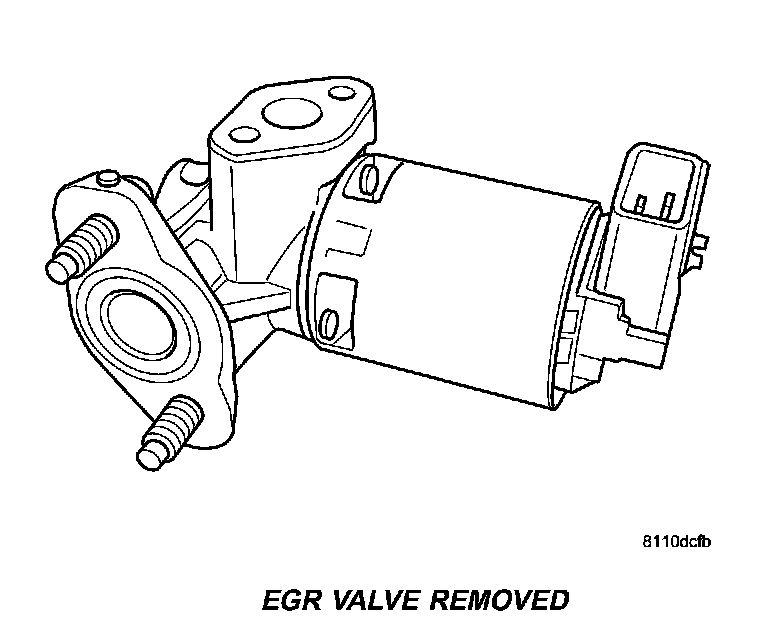

EGR Valve Removed:

5. Remove the 2 mounting bolts for the EGR valve and gasket.

INSTALLATION
1. Install the 2 mounting bolts into the EGR valve and gasket.
2. Loose install the EGR valve to cylinder head.
3. Loose install the EGR tube to EGR valve.
4. Tighten bolts for EGR valve then the EGR tube.
5. Connect and lock the electrical connector for the EGR valve.
6. Install the battery.
7. Connect the positive then the negative battery cable.
