Positive Crankcase Ventilation: Service and Repair

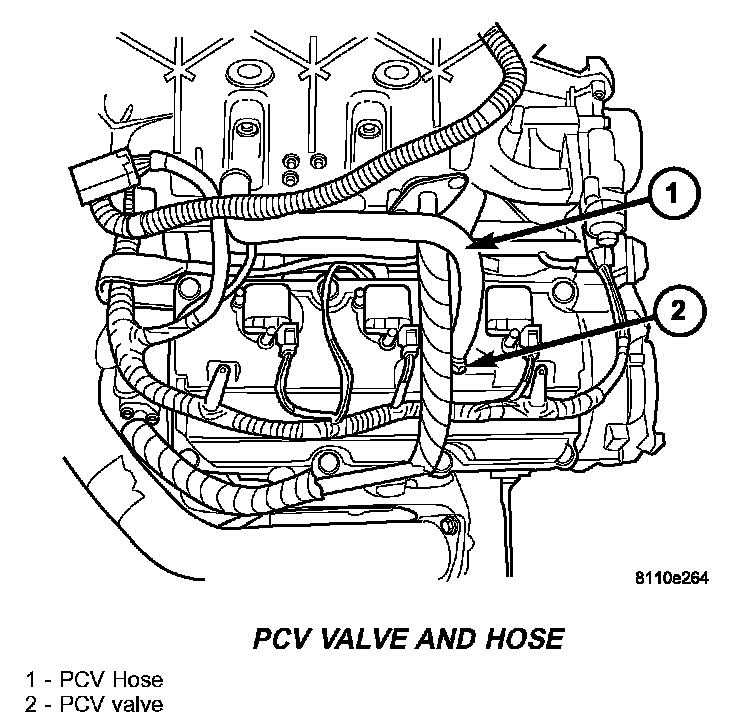

PCV Valve And Hose:

REMOVAL
1. Remove hose from PCV valve. The valve is on the rear valve cover.
2. Unscrew the PCV valve.
3. Remove PCV valve.

INSTALLATION
1. Install PCV valve and tighten.
2. Install PCV hose.
