Air Bag Control Module: Service and Repair

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.

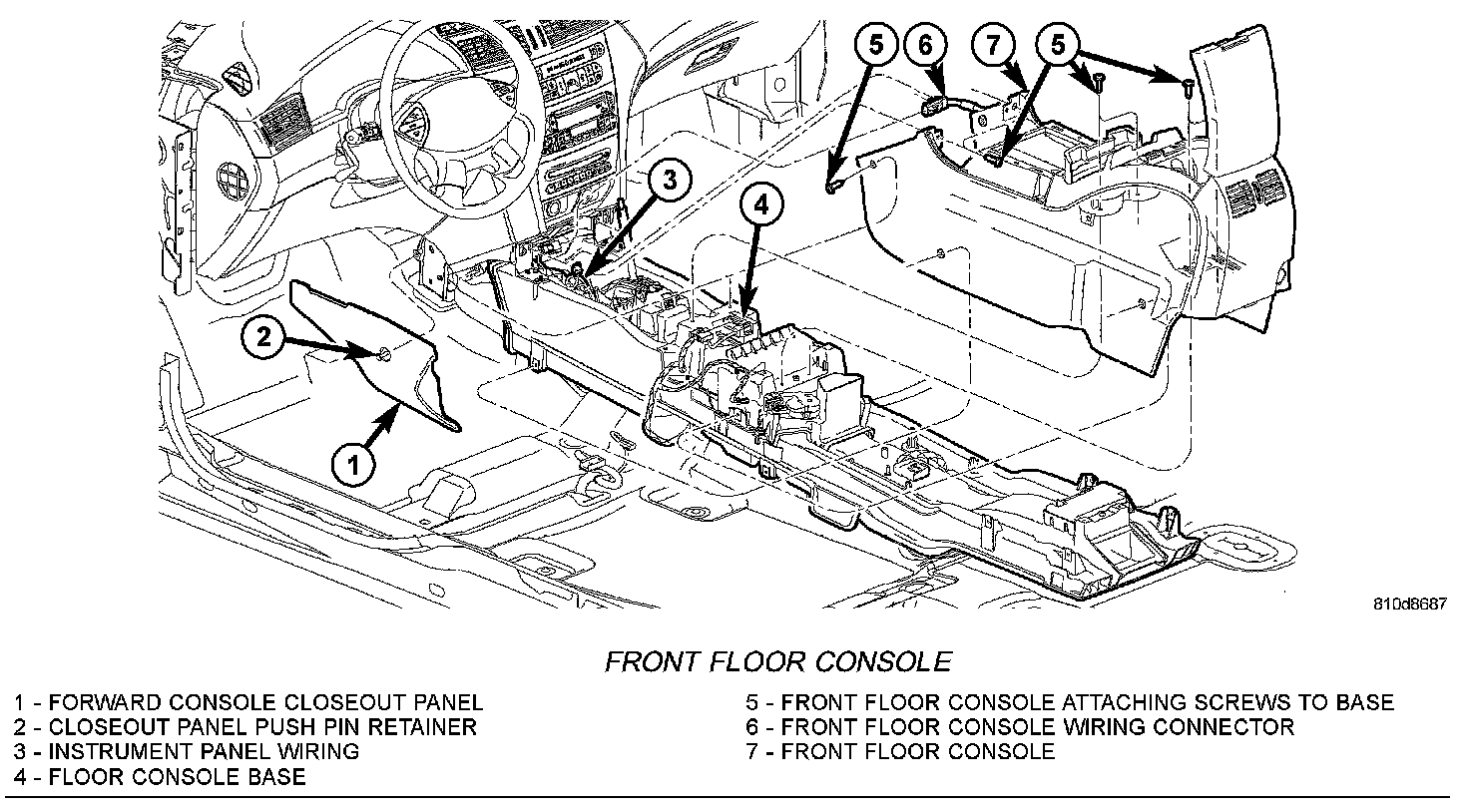

Front Floor Console:

3. Remove the left and right forward console closeout panels.

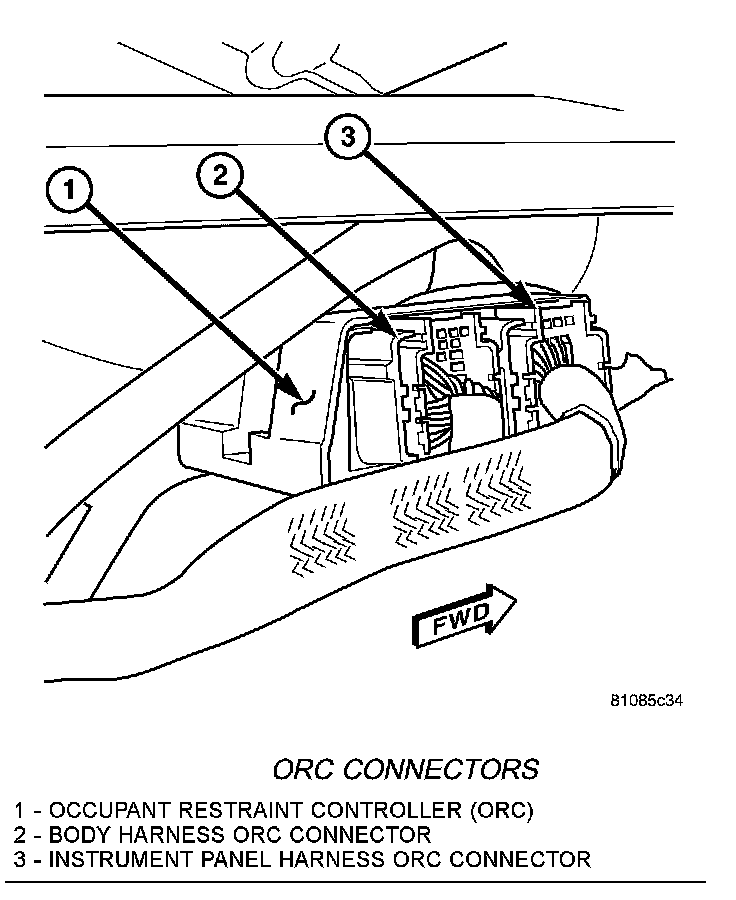

ORC Connectors:

4. From the right side of the vehicle, disconnect the two ORC electrical connectors.

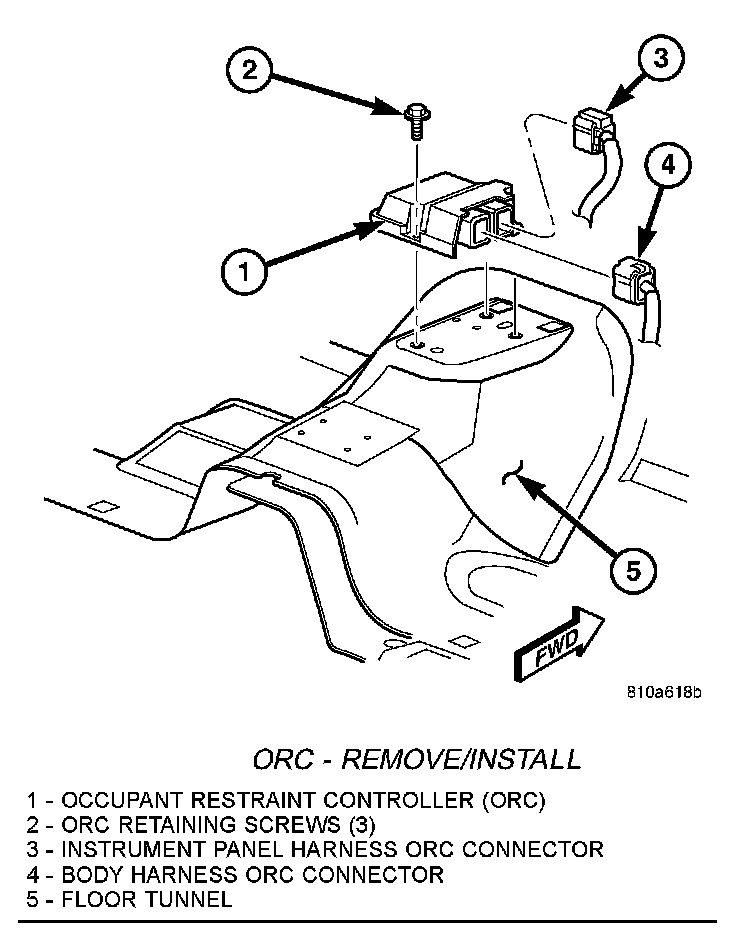

ORC - Remove/Install:

5. Remove the three retaining screws to the ORC. One on the left side of the floor tunnel, and one in front of (toward bulkhead) and behind (toward vehicle rear) the ORC unit.
6. Remove ORC from vehicle.

INSTALLATION
1. Position ORC in vehicle.
2. Install the three retaining screws to the ORC. One on the left side of the floor tunnel, and one in front of (toward bulkhead) and behind (toward vehicle rear) the ORC unit. Torque screws to 14.5 Nm (128 in. lbs.).
3. From the right side of the vehicle, connect the two ORC electrical connectors.
4. Install the left and right forward console close-out panels.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
